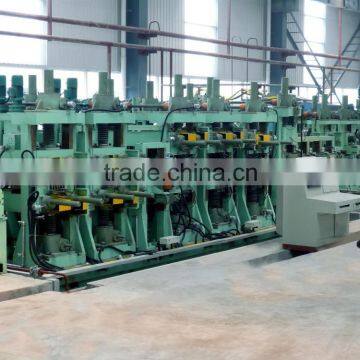

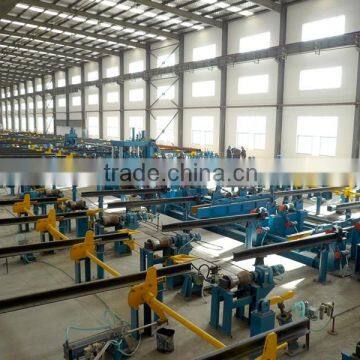

ERW Carbon Steel Pipe Making Line
ZQMC-165
165 Parameters
Specification |
Φ165×6.5 |
Pipe Diameter |
Φ60~Φ165mm |
Square pipe |
50×50~140×140 |
Rectangular pipe |
70×25~180×100 |
Sizing length and accuracy |
5~6 m. ± 3 mm |
Pipe Thickness |
2~6.5mm |
Pipe Materials |
Q195,Q215,Q235 |
Welding Speed |
20~60M/Min |
Main motor power |
Forming: 90kW×2DC |
|
Sizing:132kW×1 DC |
Advantage of the line:
Easy adjustment, good weld seam quality, rigid machine structure and easy operation and maintenance. Horizontal roll stand and vertical roll stand share the same quick-change base, which makes the roll can be take off from the drive shaft easier, and save more time. The forming stand arrangement of this line uses double radius pass design.
Main machine:
Head unbender and leveler

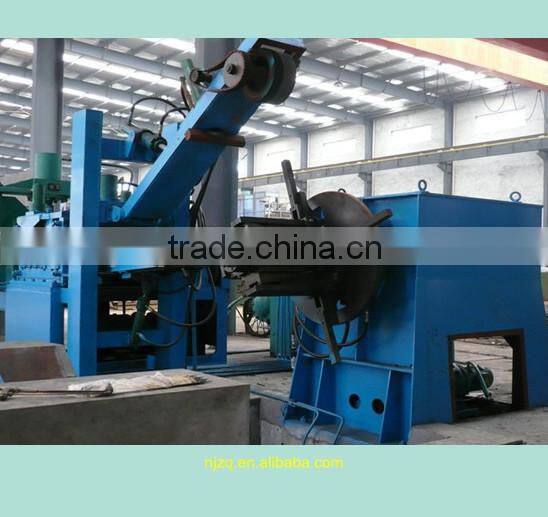

Uncoiler
Coil loading car
Cutter & butt welder
Spiral accumulator

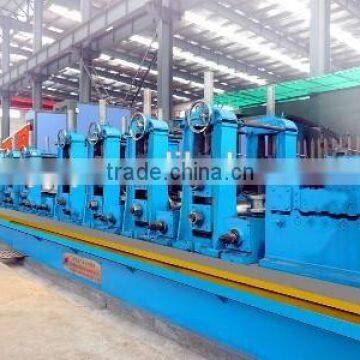

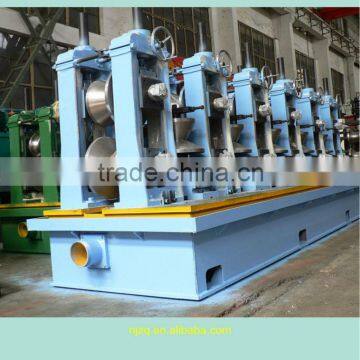

Forming and sizing main unit
Full line electric control
Hydraulic
Flying saw downstream roller table
Pyament terms:
50% advance payment after signature of contract, 50% will paid before delivery.
Paking:

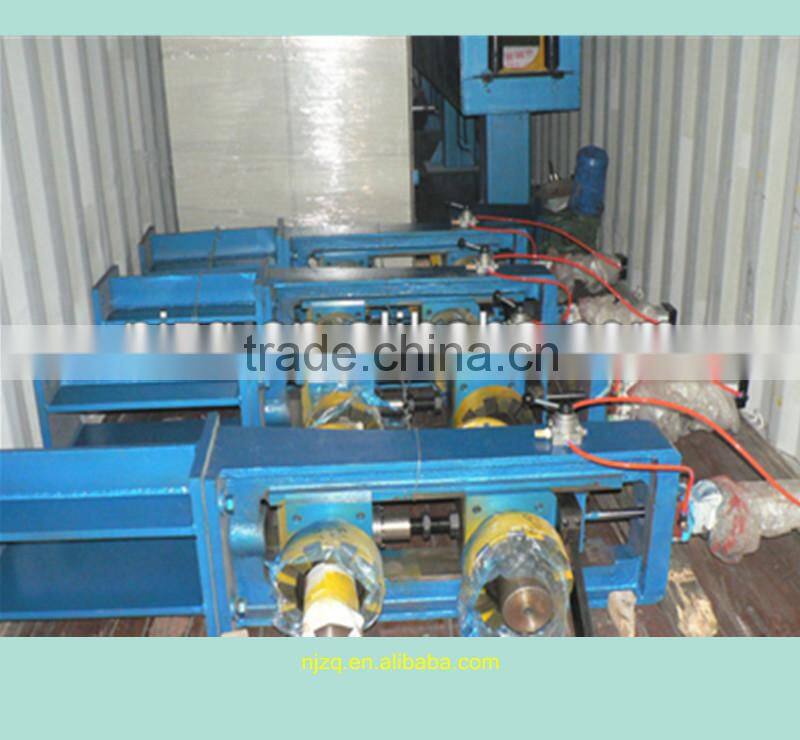

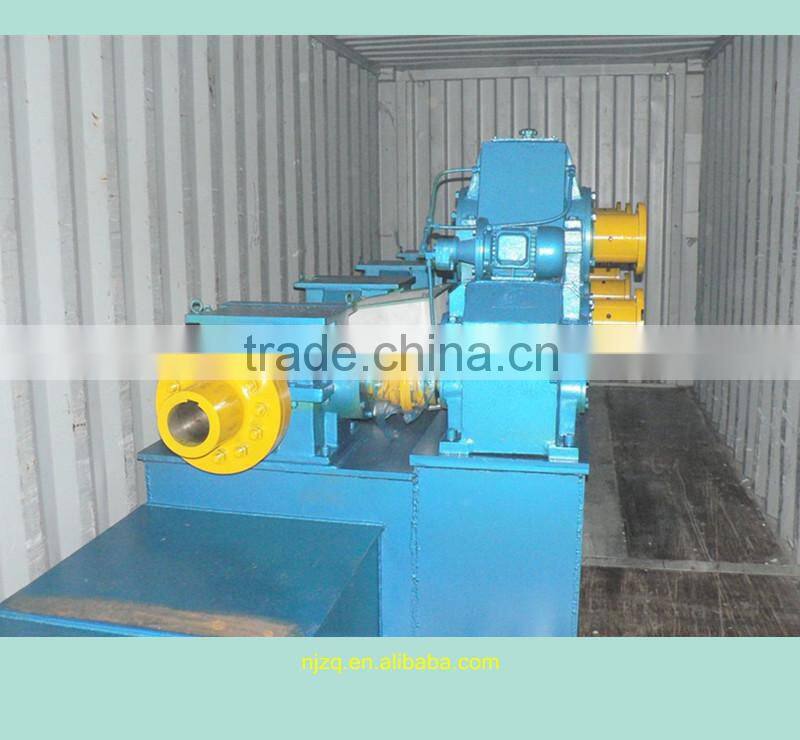

Electric control part packed in wooden case, remaining nude packed.
After-sales service:
The supplier will send technical persons to buyer’s site to carry out installation & testing and provide technical support. Relevant expenses shall be borne by the buyer. During testing, the buyer shall provide required plant building & equipment, testing material and manpower support.
Delivery:
Within 4 months from the date after signature of the contract and receipt of the downpayment.
Warranty:
The warranty will cover a period of one year starting from delivery for machines under normal
operation conditions (Force Majeure excluded).
