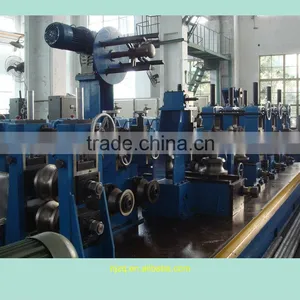

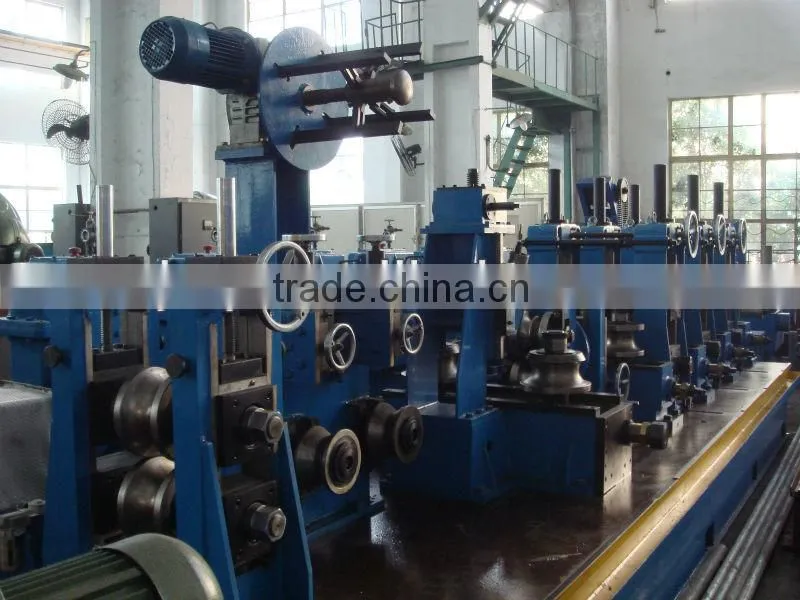

ERW Carbon Steel Pipe Welding Line
ZQMC-89
Process flow:
Steel coil→ decoiling → shearing and butt welding →accumulating → non-power leveling→ forming →high-frequency welding → deburring→ cooling → sizing →straightening → fixed length cutting → delivering
89 Parameters:
Specification: |
Φ89×5.0 |
Pipe Diameter: |
Φ60~Φ114mm |
Pipe Thickness: |
2.0~5.0mm |
Pipe Materials: |
Q195,Q215,Q235 |
Welding Speed: |
20~70M/Min |
Φ89 High Frequency Pipe Welding Line is mainly used to weld round and square/rectangular pipes.
This line utilizes roll forming to process steel strip into various shapes.
It is also capable of producing shape steel of various
Advantage of the line:
Easy adjustment, good weld seam quality.
Rigid machine structure.
Easy operation and maintenance.
The forming stand arrangement of this line uses double radius pass design.
Designing guideline:
- To improve the serviceability and productivity
- To meet safety requirements of multi-product small-batch production
- To improve the environment and safety in operation
- To improve the stability of the product quality
- To improve the yield of the line
- To reduce cost of the equipment
Line composition
Hydraulic single end uncoiler
Cutter & butt welder

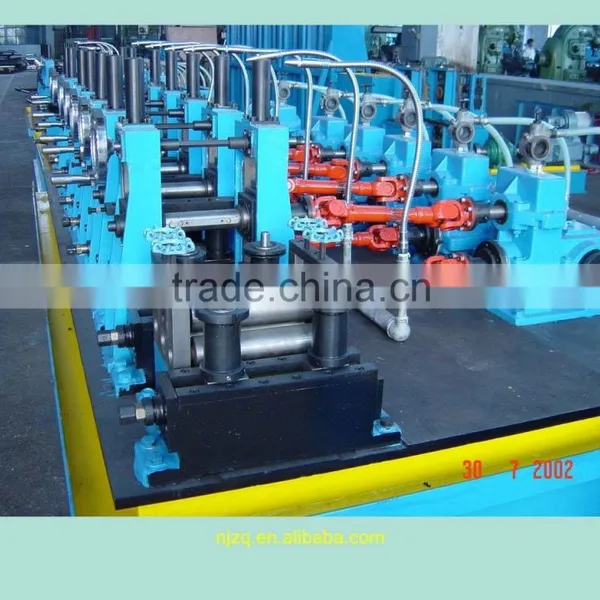

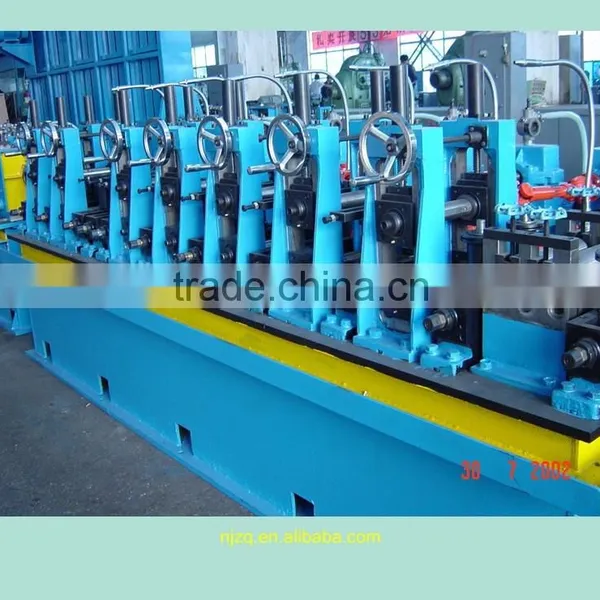

Forming and sizing main unit
AC speed adjusting
PC flying saw:
Roll conveyor and turning device (18meters)
Molds: material Cr12MoV
Delivery:
Shipment of goods in accordance with equipment list within four months, starting from the next day of contracting and receiving advanced payment.
Payment terms:
30% advanced payment after contracting, the remaining amount to be paid before delivery.
Packing:
Electric control part will be packed in wooden cases. The remaining part will be packed naked.
After-sales-service:
The supplier will send technicians to the plant designated by the buyer for installation and testing, as well as to provide technical supervision, while the buyer shall be responsible for their expenses. For testing, the buyer shall provide plant building and equipment capable of production, testing materials and helping labors.
Warranty:
The warranty will cover a period of one year starting from delivery for machines under normal operation conditions (Force Majeure excluded).

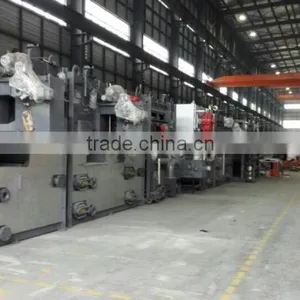

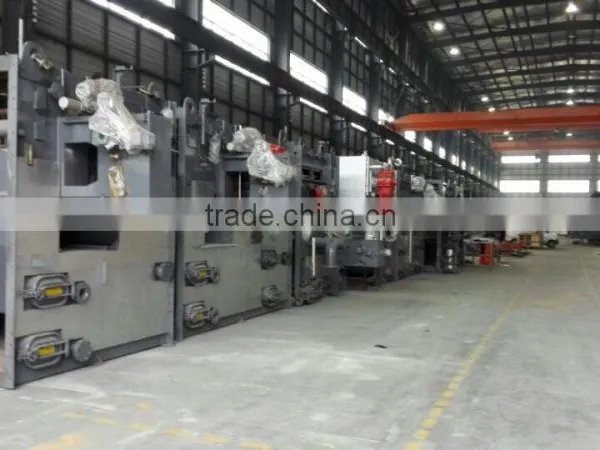

Work shop show:
