Rotary drum dryer Instruction:
Rotary drier is widely used for drying materials in the industries of cemet, mine, contruction, chemical, food, compoud fertilizer, etc. Feeding and discharging unit is installed with thermocouple to control drier temperature. The temperature change of drier's feeding end can be indicated by the thermometer to control the inner drier temperature ( generally 250-350°C)
Rotary drum dryer Structure:

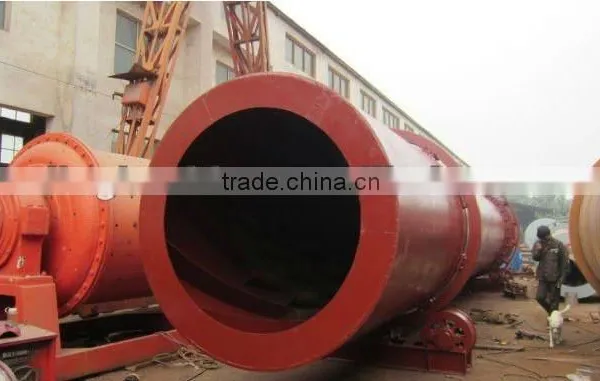

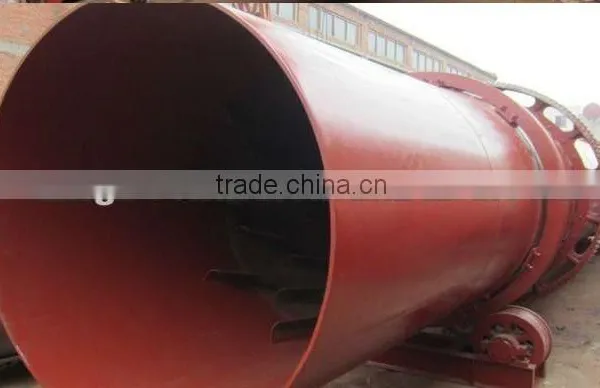

Rotary drier machine is mainly composed of shell, back and forth supporting wheel, feeding and discharging unit and gear cap. The accessories which are not in the the scope of this machine include firebox, feeding and discharging equipment, dust catcher, etc.
Rotary drum dryer working principle:
Rotary drier adopts direct flow type of heating with heat soure from firing unit. The material to be dried is pushed back immindiately by spiral board when enters the shell from feeding tank and feeding chute. Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile, it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
1. High Capacity Rotary Drum Dryer advantages:
reasonable structure, polished manufacture, high capacity, low energy consumption, smooth rotation, easy operation, convenient transportation and so on.
2. Rotary Drum Dryer main parts:
cylinder, lifters, driving device, supporting device and sealing ring, feeding device, discharging device, gear, gearbox, electric motor, cyclone dust collector, furnace and etc.
3. Rotary Dryer Drum drier heating source:
coal, coal gas, natural gas, LPG gas, wood, and etc.
4. Rotary Dryer Drum Drier Mode of flow:
direct flow or counter flow. It is based on the different materials.
5.Rotary Dryer Drum Drier principle of operation:

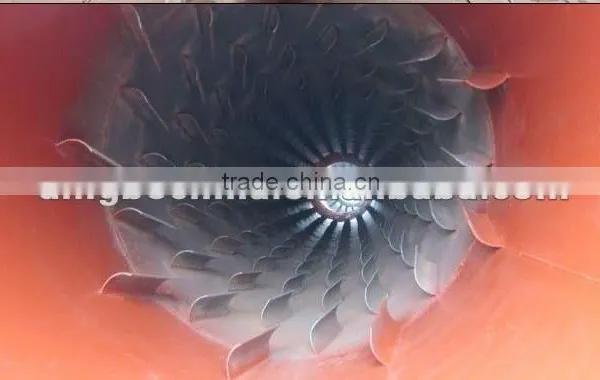

The raw material plate which is arranged reasonably with changeable angles in order, throws moisture materials into the rotary cylinder. Then water will be separated from the materials by hot air-flow and changed into vapour to be discharged into the atmosphere. Then the materials would be dried.
