Heat-resistant Bottle Making Machinery

Specifications

Heat-resistant bottle making machinery

1.Semi-Automatic machine
2.Blow Capacity:1200-1600bph
3.Mitsubishi PLC
4.CE,ISO

Introducton:

Semi-automatic blow molding machinery is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

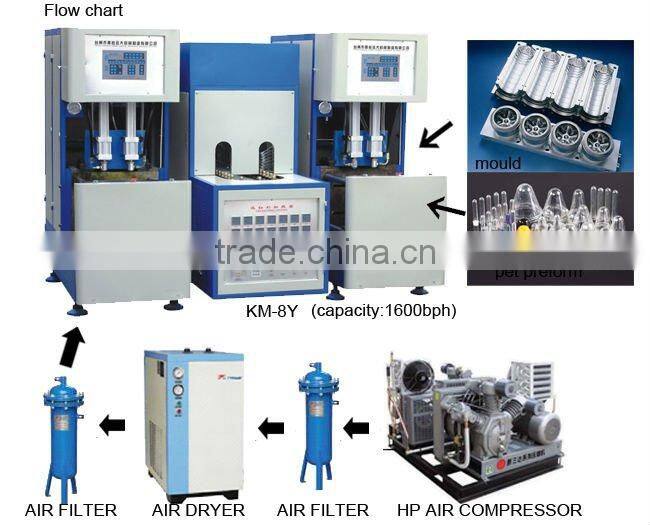

The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.

The machine is small with low investment, easy and safe to operate .

Function:

1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.

2. Pneumatic elements from FESTO (German) and SMC (Japan)

3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.

4. Malfunction alert and diagnostic units allow easy maintenance.

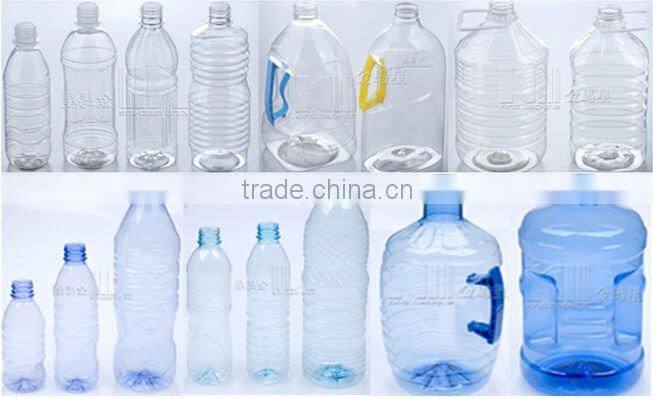

5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..

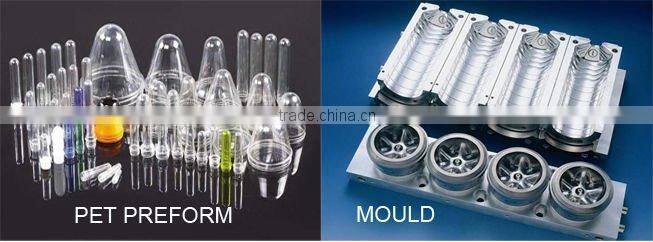

6. Oven can be made according the different preform requirements of customers
