Specifications
Limestone-Gpysum Powder Equipment1.Siemens Motor
2.High crushing ratio
3.CNC Cutting and Mill
4.Best Limestone Pulverizer

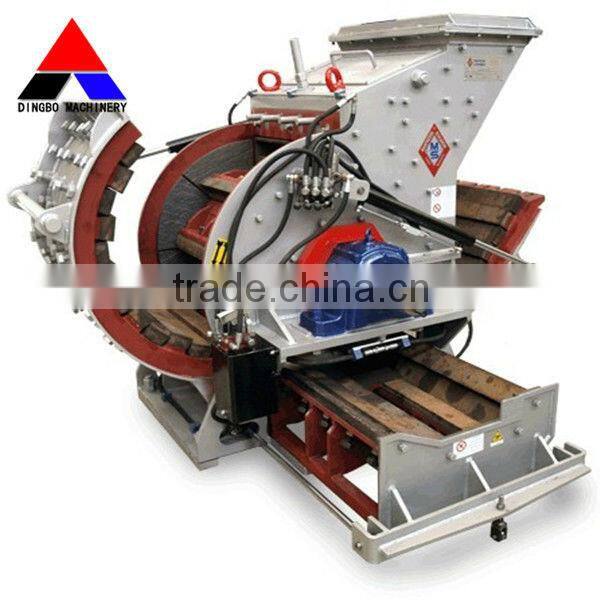

Good quality Hammer Crusher of European Version Exports to Russia
Dingbo Coarse Powder Grinding Mill is widely used in metallurgy, mining, chemical,cement coal ,dry stone, construction, sand, refractories and ceramic industrial and mining enterprises, engaged in breaking and crushing the material in the operation. Hammer Crusher (Coarse Powder Mill )is a kind of new high-tech mill machine to meet the requirements of coarse powder processing customers. The Hammer Crusher or Coarse Powder Grinding Mill is developed based on our experts' rich experience in the milling industry and considering recommendations and requirements of domestic and foreign clients. It is the ideal equipment to replace Raymond Mill, ball mill, and other traditional mill which only process fine powder materials. It is high-efficiency equipment and widely applied in quartz sand, silica sand, foundry sand, fine sand and other sand abrasive industry. By being a component of closed production lines, it can produce various size products of better effect.
Advantages and Features:
1.the production capacity, high crushing ratio;
2.low power consumption, uniform particle size;
chanical structure is simple, compact and lightweight;
4.low investment costs, management, and convenient.
Working Principle:
the Coarse Powder Mill casing, rotor, bearing the hammer and the grate bars and other components. Upper and lower case in two parts, welded together by a steel plate after cutting, the remaining parts bolted into one. Set with high manganese steel liner inside the case, to facilitate replacement of worn; its array of rules installed on the spindle distribution of the hammer, hammer and rotary table and through the rotor shaft formed. Host through the motor, V-belt driven spindle, so that the rotor rotates, hammer by the centrifugal force generated by rotation around the stretch to, bulk materials from the feed inlet into the crushing chamber, the high-speed movement of the hammer will be crushed. Broken by passing the material under.
Technical Specification:
| Model | PC4008-75 | PC4012-90 | PC4015-132 |
| Rotor Diameter (mm) | 750 | 900 | 1150 |
| Rotor Length (mm) | 800 | 1200 | 1500 |
| Rotor Speed (r/min) | 800-1000 | 800-1000 | 550-800 |
| Inlet size (mm) | 320×930 | 400×1200 | 500×1500 |
| Max. Feeding Size (mm) | <50 | <50 | <100 |
| Outlet Size (mm) | 0-3 | 0-3 | 0-8 |
| Capacity (t/h) | 10-30 | 30-60 | 60-100 |
| Power (KW) | 75 | 90 | 132 |
| Overall Dimension (mm) | 2310*1665*1610 | 2840*2100*2020 | 3720*2650*2540 |
World Famous Motor-Siemens Motor:
High Quality Electric Control System:

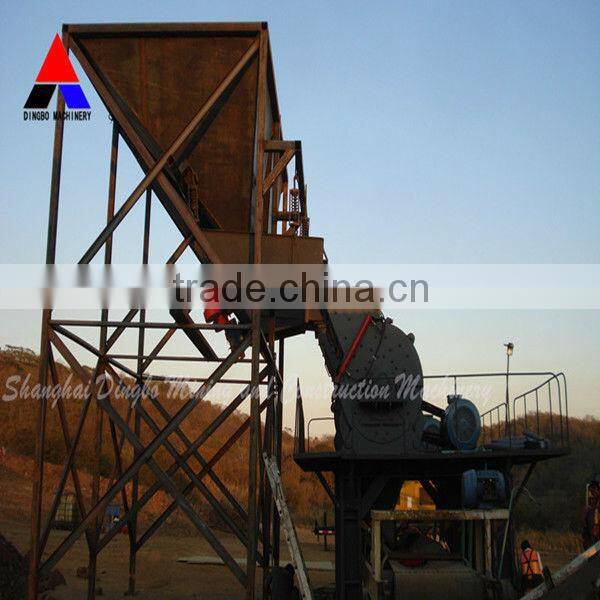

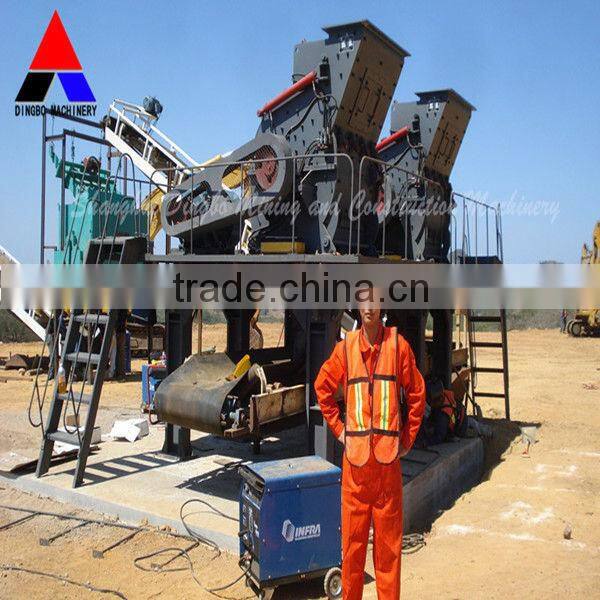

Coarse Grinding Mill Machine Working Site for Iron Ore Production In Mexico:
Most Concerned Questions and Answers:
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,
and we take a test on every pulverizer before delivery. If you want see our quality certifications
and all kinds of testing report, please just ask us for it.
Guaranteed:
100% brand new when leaving the factory. The seller guarantee quality of the machines (excluding wearing parts) for a period of one year from the date of trial run finish under our technician's guidance, but not exceed 15 months from date on which machine leaves the factory.
How about price?
Yes, we are factory and be able to give you lowest price below market one,
and we have a policy that “ for saving time and absolutely honest business attitude,
we quote as lowest as possible for any customer, and discount can be given according to quantity”,
if you like bargain and factory price is not low enough as you think, just don’t waste your time.
Please trust the quotation we would give you, it is professional one.
Why should we choose you?
Chose happens because of quality, then price, we can give you both
Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.
Our service formula: good quality+good price+good service=customer’s trust.
If you wanna know more,please feel free to contact us.
Welcome to Shanghai and Welcome to Dingbo!
