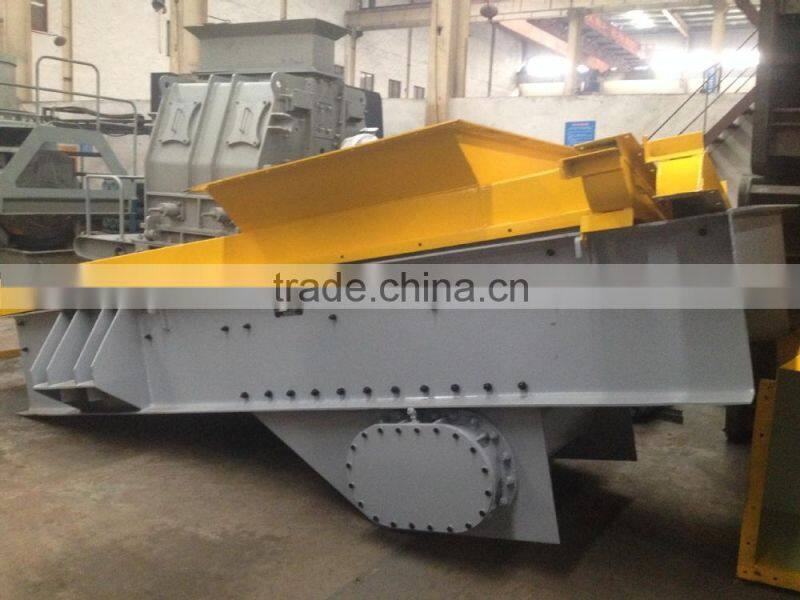

Excellent Mining Vibrating Feeder
1. Vibrating Feeder Application:
Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. It is widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
2. China Vibrating Feeder Features and Benefits:
A. Stable and long span life
B. Easy to adjust
C. Reliable operation
D. Easy maintenance
3. China Vibrating Feeder Working Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Model |
Max input size(mm) |
capacity |
motor power |
Installaition Slope |
weight |
Size of Funnel |
GZD-180×80 |
300 |
30-80 |
2×1.5 |
0-10 |
0.8 |
1800×800 |
GZD-300×90 |
500 |
40-100 |
2×2.2 |
0-10 |
1.5 |
3000×900 |
ZSW-380×96 |
500 |
90-100 |
11 |
0° |
3.98 |
3800×960 |
ZSW-490×96 |
500 |
120-240 |
15 |
0° |
5.5 |
4900×960 |
ZSW-490×110 |
580 |
120-280 |
15 |
0° |
5.72 |
4900×1100 |
ZSW-590×110 |
600 |
280-500 |
22 |
0° |
6.13 |
5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.
