Best seller factory coconut oil press machine with Alibaba trade assurance

Cost effective best oil factory of coconut oil press machine

Our main purpose:

We Provide complete service equipment installation, testing ,maintenance and staff Training,we can provide you the technical services for life and provide the best service to you . Help our clients gain profit in quicklly. We will provide the most environment friendly and safe products with high quality at most favorable price for the customer with perfect after service.

Introduction of coconut oil press machine

♥.1.YUXI series oil press is one kind of small oil press characterized by low investment, strong adaptability and high efficiency of oil production, etc.

♥.2.Imported hydraulic components are adopted in hydraulic system, the pressure can be adjusted.

♥.3.These screw oil pressers, after more than ten year's investment and modification, are concise in structure, easy to operate, and similar in performace to the advanced oil nuts, beans, sesame seeds, cotton seeds, and many other oilseeds crops.
♥.4.This oil press machine is composed of feeder, gearbos, pressing cage, screw shaft and machine stand etc.
♥.5.This kind of screw oil presses utilizes the screw shaft which is set-up with different styles of screws and rotates when machine is running to push the material into chamber. Then the oil is separated out through the extrusion of pressing worm and pressing ring. This oil press machine is in accordance with the standard JB/T9793.1-1999 for screw oil press for farm use

Application of coconut oil press machine

♥.Necessary raw materials: rapeseed, peanut, soybean, sunflower, rapeseed, sesame, sesame seed, tea seed, walnut, olive, corn germ, rice bran, tea seed, safflower seed, seeds of hippophae rhamnoides, neem seed, rubber seed, pepper seeds, tomato seeds, watermelon seeds, grape seeds, flax seed, evening primrose, pepper seeds, Castor seeds, Citrus Seeds, beans, beans, almonds, Coffee perilla, peach, rose fruit oil plants.

Structure of coconut oil press machine

♥.1. Automatic spiral oil press is mainly composed of electric control, automatic heating, adjustment, transmission and vacuum oil filter components.
♥.2. The press screw is made of alloy steel through carburizing treatment, enhance the surface hardness and wear resistance;
♥.3. Press row is grinding through flat grinder, guarantee the accuracy of oil line, improve the yieldefficiency;
♥.4. The standard parts like distribution, vacuum and automatic heating choose domestic well-known brand, optimize machine configuration;
♥.5. The machine surface is of stainless steel and chrome plating processing, in line with food hygiene standards.

Working principle of coconut oil press machine

♥.1. When the machine begin to work ,the treated raw material can from hopper into pressing bore.

Under the squeezer shaft rotation,Raw material is pushed forward then get the oil.

♥.2.On the one hand, the root of screw axis diameter enlargement, pitch decreases gradually,
so the raw material in the bore in pressing forward, constantly compressed volume, pressure is
increased, meet the oil pressure needed for the precipitation.

♥.3.On the other hand,the raw material keep moving in the Pressing chamber.Under the high
pressure.there exist Huge friction force between raw material and squeezer, pressing chamber.
♥.4.The heat which produced by the movement can meet the required to heat oil process operations and make the raw material in the embryo protein denaturation, destroyed the colloid, increase the plasticity, reduce oil viscosity, make it easy to precipitate, thus increasing the yield efficiency of oil press finally.

After-sales service: free assembly debugging product, is responsible for equipment operation training.

Advantages of coconut oil press machine

♥.1.Saving Labor: It only needs one person to operate the Automatic Screw oil press, which will save 60% labor for equal output.

♥.2. Widely Used: This Automatic Screw oil press can press more than 20 kinds of oil crops, such as olive, small olive, palm, oil sunflower, soybean, peanut, sesame, vegetable seeds, coconut and flax seed.
♥.3. Pure Oil Quality: The vacuum oil filtering is used to remove residue to ensure the pure oil quality and meet the standards of health quarantine.
♥.4. Small Land-Using: An area of 10m2-20m2 workshop can meet the need of production. suitable for medium-small sized oil extruding workshops or professional farmers.

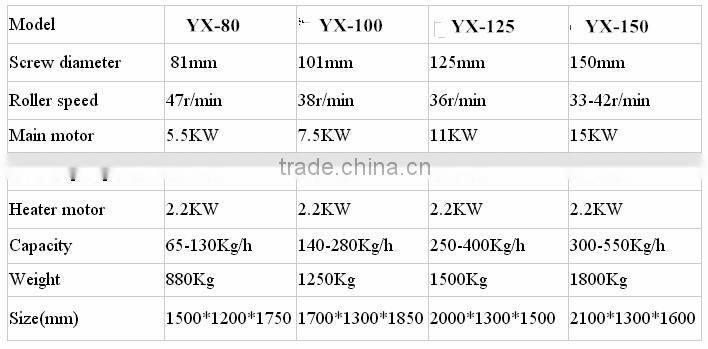

Main data of coconut oil press machine

Our cooperation customers:

FAQ:

Q:Delivery time?

 A:20~30 days after order confirmation. We need time to prepare machine according to exporting standard, wear-in, making wooden box, fumigation and suitable ship arrangement from forwarder.

Q: If I don't know how to operate this machine? how can I do?

A: Our machine has been tested OK and fully assembled before shipping, customer just needs to make 2~4 hours wear-in and then can work.

Q:What's wear-in for new machine?

A:use 10 KG oil cake + 1KG sand + 1KG water, mix them, put in oil press, wear in 3~4hs.1st hour, adjust oil cake thickness as 3mm.2nd hour, adjust oil cake thickness as 2.5mm.3rd hour, adjust oil cake thickness as 2 mm.

Q:Can we come to your production site to see the running of the machine?

 How can we get to your city?

A:Yes,of course,you are always welcome to visit our factory,we can show you any of our cutomer's production site to give you a clearer image of our oil machine.

You can take plane to Zhengzhou Xinzheng International Airport,we can pick you up there.

Our Sweet Service:

♥. Pre-sale service: design and manufacture machines for you as your special requirements, provide you with project, process design, and purchase programm.

♥.  On-sale service: accompany with you to look around our factory, explain the manufacture process of our machines, and check the working performance of our machines.

♥.  After-sale service: engineers are available to install and debugging equipments of the whole production line, besides, commissioning and training operators on site.

Our machine popular selling all around the world:
