China HOWO 6X4 CNG Tractor Truck for sale Euro 5

Item

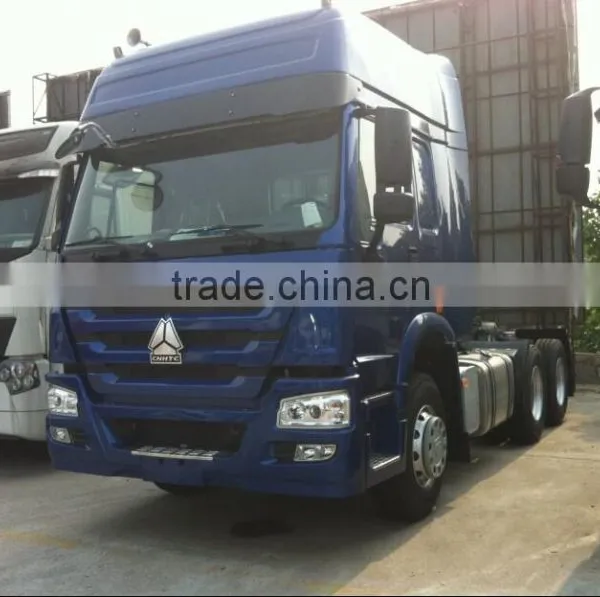

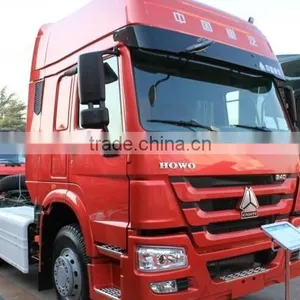

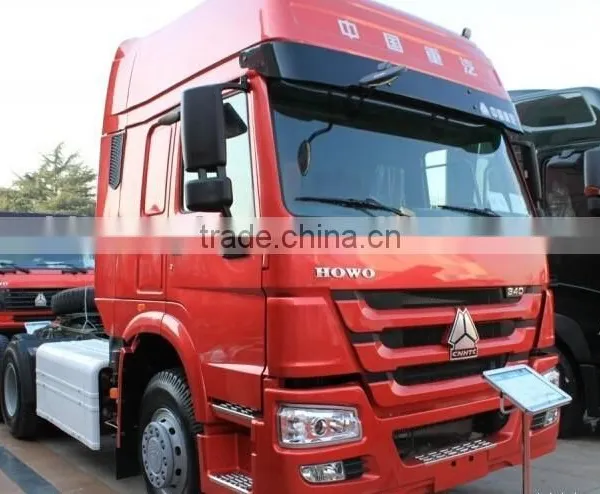

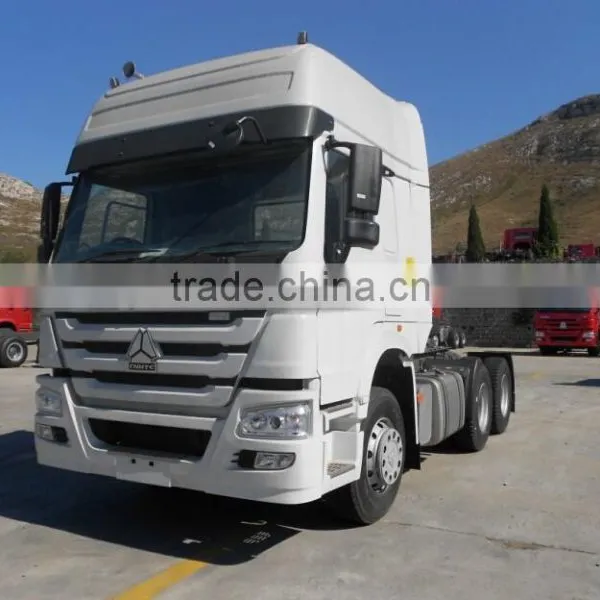

SINOTRUK HOWO 6X4 420HP CNG TRACTOR TRUCK

Chassis model

ZZ4257N3847E1CB  2015 New Truck

Driving type

Left hand drive (LHD)

Color

Optional (yellow, red, black, white, blue, grey, green)

Engine

Model

SINOTRUK brand, T10.34-50, 340hp, Euro V, CNG.

Type

Six cylinders inline, water cooling, 4 stroke, supercharge intercooler

Engine net weight (kg)

900

Rated Power (kw/rpm)

250/2000

Maximum Torque (Nm)

1470N.m

Maximum Torque speed

1200~1500RPM

Compression ratio

11:1

Bore X Stroke

126x155mm

Displacement  L

11.596L

Cabin

HW79, high-roof cab, with two sleepers (berths), air-conditioner, MP3, safety belts, curtain. Adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers etc.

Transmission

HW19710, 10 F and 2 R, manual.

Transmission with main and auxiliary transmission structure, main transmission with double counter shaft, auxiliary transmission with planetary reduction.

Front Axle

HR7, rated load 7000kg, disc brake.

Rear Axles

ST16, rated load 16000x2, drum brake. Speed radio: 4.42

Steering

ZF8098 steering gear, ZF Steering pump, power steering with hydraulic system.

Brake system

Service brake: dual circuit compressed air brake

Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels

Auxiliary brake: engine exhaust brake

Electrics

Operating voltage: 24 V, negative grounded

Starter: 24 V, 5.4 Kw

Alternator: 3-phase, 28 V, 1500 W

Batteries: 2 x 12 V, 165 Ah

Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light

Tires

12R22.5 tire, plus one spare tire (totally 11 units)

Fifth wheel (towing pin)

90#; Optional: 50#

Gas tank volume

8X140L+4X80L. International certificate gas tank. Including gas line beam and flexible pipes; Equipped with low pressure filters and leakage warning device.

Fuel tank

400L volume

Tool Box

One set

Towing Capacity

70T

External dimension

7490x 2496x3885 mm
