Specifications
1.grabadora y cortadora laser2.CE,FDA
3.Manufacture
4.600*900mm
5.60w laser tube power
grabadora y cortadora laser Specifications
1, high-speed, speeds of up to 72000mm / s, effectively improve the work efficiency.
2, fine carving, choose imported USA professional optical lens, the beam is more stable. Precise rear red light positioning system.
3, facilitate discharge and reclaimer system, with lifting up and down to adjust the front-end can be completely open.
4, engraving speed and accuracy reaches domestic first-class level.
5, support AUTOCAD, CORELDRAW, lasercut5.3 , PHOTOSHOP and other design software, human-machine interface is friendly, close to the industry needs
grabadora y cortadora laser technicial parameter
Model |
YN-0640 |
YN-6090 |
YN-1390 |
YN-1410 |
YN-1625 |
Working platform size |
600x400mm24"x16" |
900x600mm40"x24" |
1300x900mm52"x36" |
1400x1000mm56"x40" |
1600x2500mm |
Laser power |
60w 80w |
80w 100w |
80w 100w 130w 150wRF30w 50w |
80w 100w130w 150wRF50w |
80w 100w130w 150wRF50w |
Laser source |
CO2 glass sealed laser tube / RF metal sealed laser tube |
||||
Engraving speed |
0-1000mm/s |
||||
Cutting speed |
0-500mm/s |
||||
Worktable |
Aluminum Slatted work table OR Honeycomb work table |
||||
Sensitivity |
<±0.025mm |
||||
Resolution |
2500DPI |
||||
Laser output control |
0-100% set by software |
||||
Supported Formats |
CorelDraw X2 thru X4, AutoCAD,AI, DXF, PLT, DST, DSB, BMP, GIF, JPG, PNG, MNG, ICO CUR, TIF, TGA, PCX, JBG, JP2, JPC, PGX, RAS, PNM, SKA, RAW |
||||
Min. engraving size |
English letter:1.0*1.0mm |
||||
Software supported |
Coreldraw, Photoshop, AutoCAD |
||||
Interface |
USB 2.0 |
||||
Control system |
DSP |
||||
Operating System Software |
Windows Xp,Windows 7 |
||||
Motor type |
Stepper Motor / Servo Motor |
||||
Cooling way |
Water chiller |
||||
Working environment |
Temperature:0-45°C, Humidity 5-95%(No condensate water) |
||||
Power supply |
220V/110V, 50Hz/60Hz, 1Kw |
||||
Main configuration |
1set CO2 laser cutting machine |
||||
1set Water chiller | |||||
1set Air pump | |||||
1set Fan blower | |||||
OptionalDevices |
Rotary device |
||||
Red dot pointer | |||||
Lifting work table | |||||
Auto-focusing device | |||||

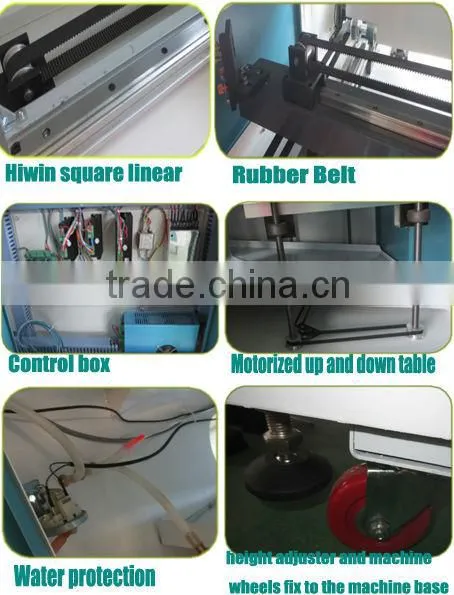

grabadora y cortadora laser parts show

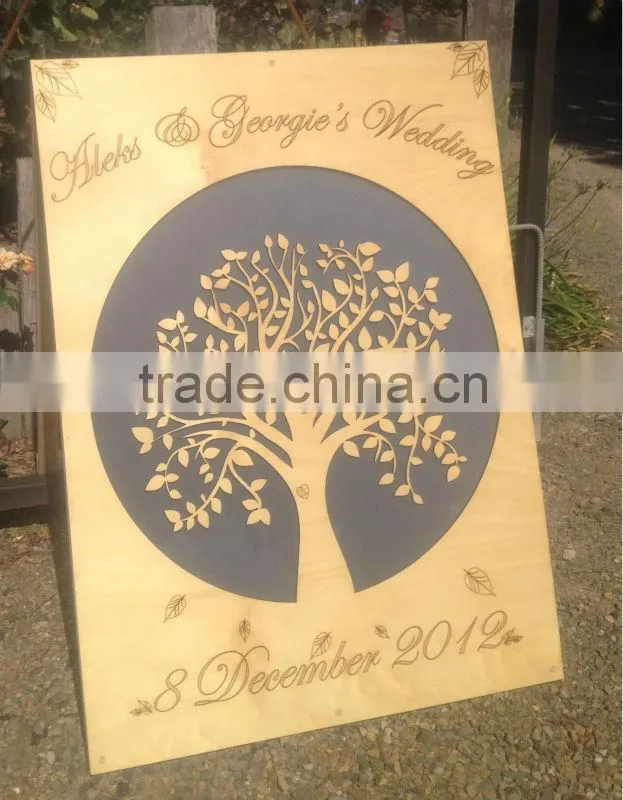

grabadora y cortadora laser sample show

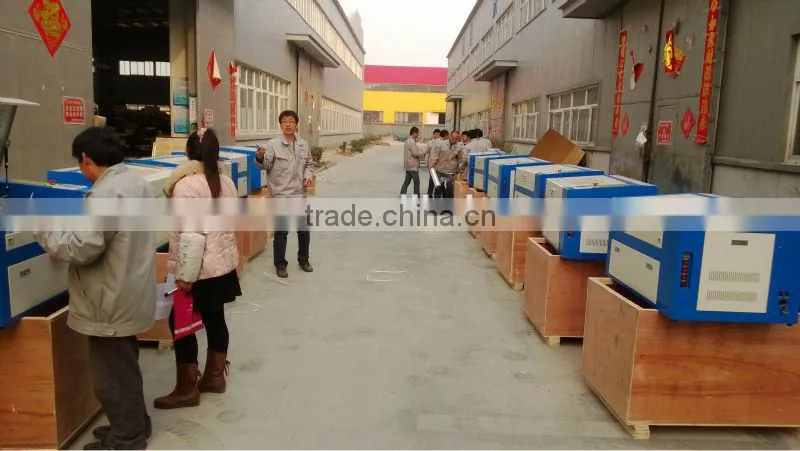

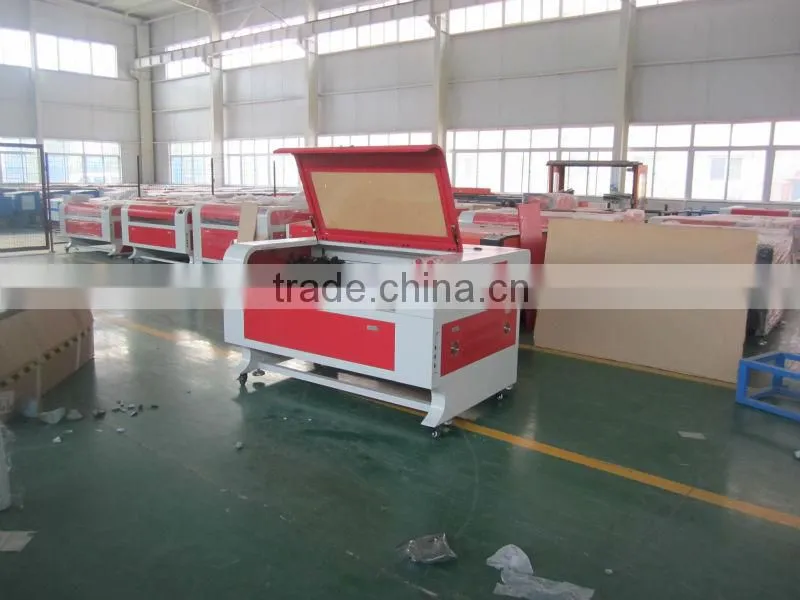

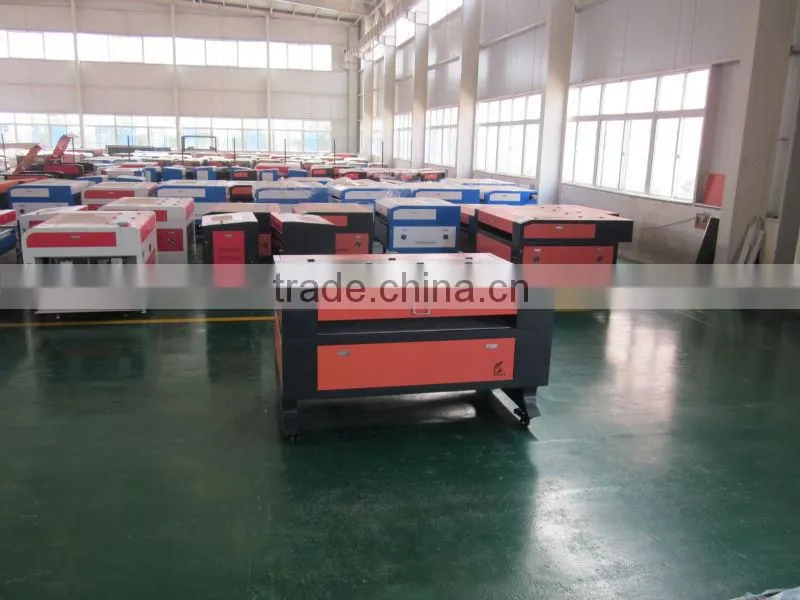

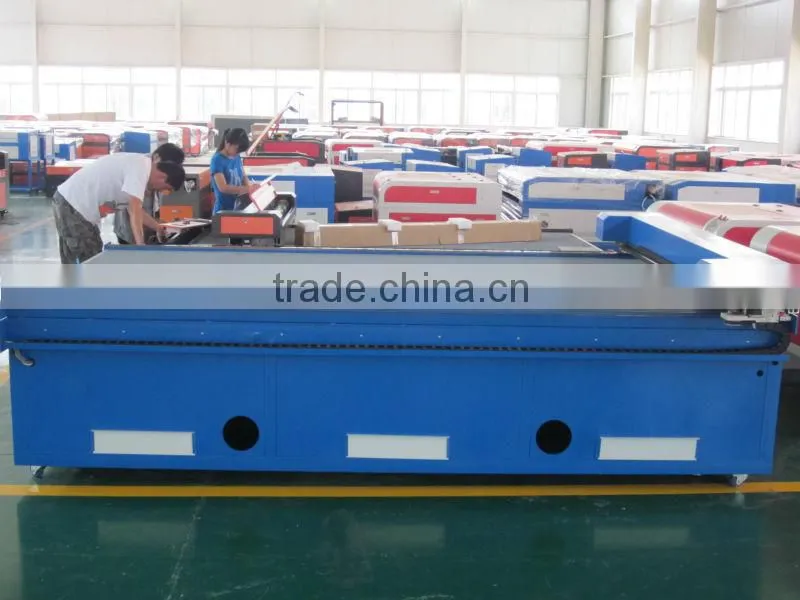

Company show
