Help CenterSmall Wood Laser Cutting Machine 600*900mm,60w-150w Laser Wood Cutting Machine Price
Related Products
-
Cheap Smart CE China Factory Laser Label Die Cutting MachineUS$ 2,000 - 9,999MOQ: 1 Set -
CE FDA Sales Promotion China Factory Desktop Laser Cutting Machine 600*900mmUS$ 2,000 - 9,999MOQ: 1 Set
-
Hot Sale CE China Factory 60w 80w 100w 150w Laser Wood Cutting Machine PriceUS$ 2,200 - 9,999MOQ: 1 Set
-
CE FDA Hot Sales Acrylic Laser Engraving Cutting Machine Best PriceUS$ 2,000 - 9,999MOQ: 1 Set
-
CE FDA SGS China Factory OEM Cnc Laser Acrylic Letter Cutting MachineUS$ 2,000 - 9,999MOQ: 1 Set
small wood laser cutting machine technicial parameter
Model |
YN6040 |
Laser type |
Sealed CO2 laser tube |
Laser power |
40w,60w,80w |
Engraving area |
600*400mm |
Engraving speed |
0-24,000mm/min |
Resetting position accuracy |
±0.05mm |
Working voltage |
AC110-220V ±10%,50-60HZ |
Power |
Max 1,000W |
Operating temperature |
0-45 degree |
Operating humidity |
5-95% |
Minimum shaping character |
English 1*1mm |
Graphic format supported |
BMP, PLT, DST, DXF, and AI |
Driving system |
Stepper |
Cooling mode |
Water-cooling and protection system |
Auxiliary equipment |
Exhaust-fan, air-exhaust pipe |
Controlling software |
DSP control system |
Compatible software |
Coreldraw AutoCAD Photoshop |
Control system |
DSP control |
1.Adopt imported linear guiding system and ensure machine long lifespan
2.The optical lens adopt high intensity gilding silicon and non sphere focusing lens, so the lens can endure the scrubs and high temperature, needn't to be changed, thus reduce resuming cost.
3.Adopt DSP control system, and moves smoothly.
4.The laser tube adopts compulsive water cooling system, cooling chiller can control temperature automatically.(optional)
5.With rotary attachement for cylinder engraving (optional)

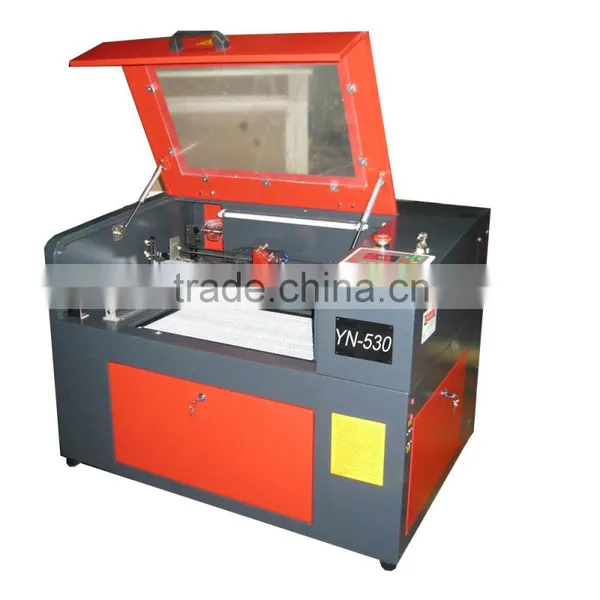

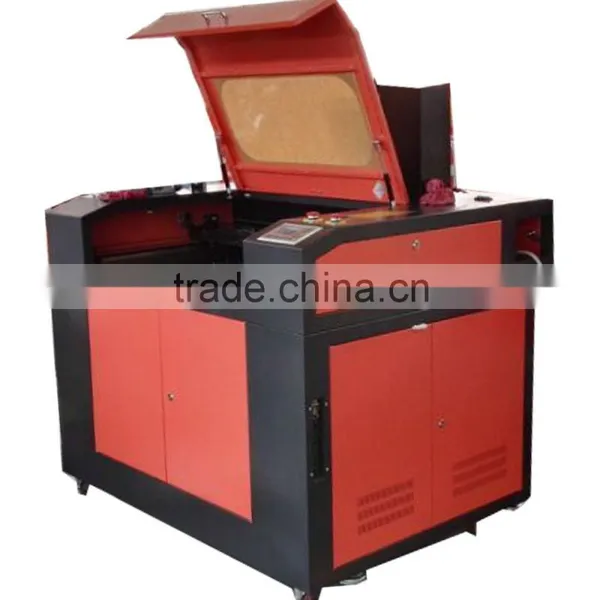

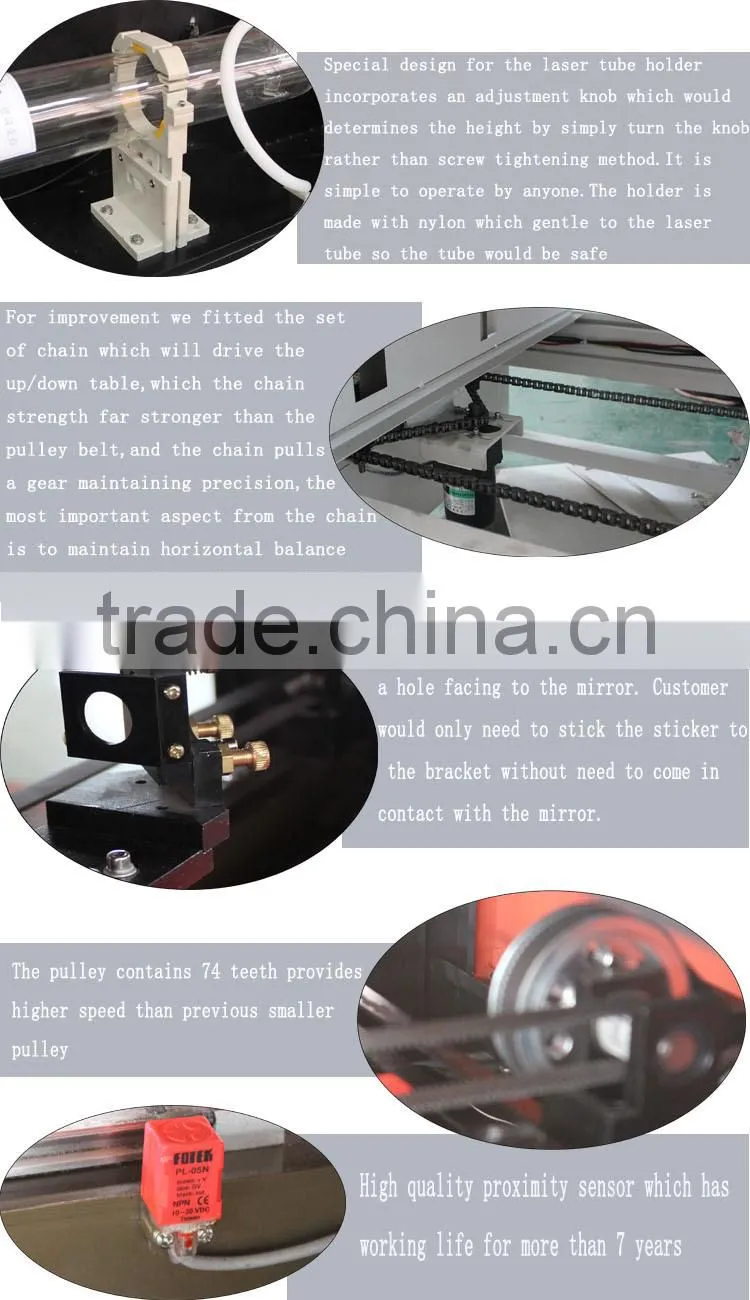

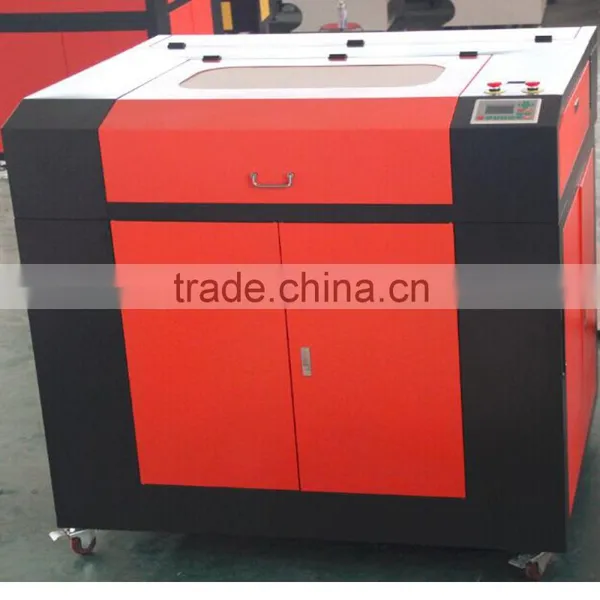

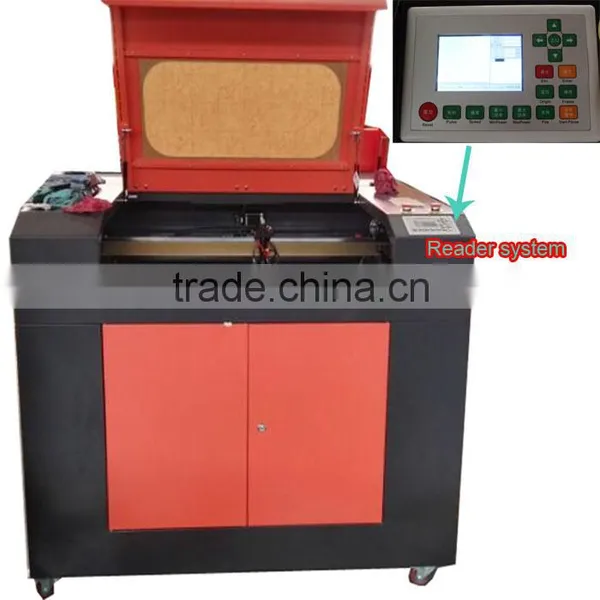

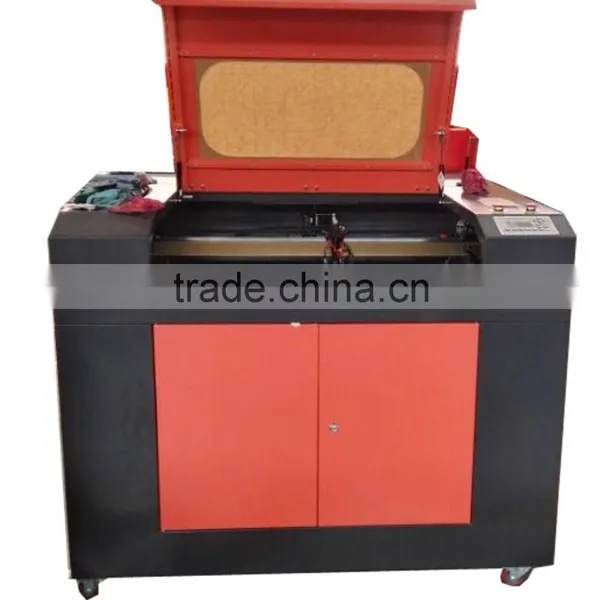

small wood laser cutting machine details
Warranty and Service: co2 cnc laser engraving machine price
1.18 months equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
What’s the maintenance of the machine?
1. About laser tube,when you do not use the machine, please let the water out from the output light side.
2. About water chiller, when you put water into it, please keep water clean, after long time work,
it’s better to change the water
3. About the lens and mirrors. Please keep the lens clean when you work with the machine, clean the lens every day or every day three times as per your work quantity.
