Specifications
1.football laser engraving machine2.CE,FDA
3.1300*800MM
4.Manufacture
Applicable Industry:
Cloth, tile, cardboard, paper, leather, PU leather, trademark embroider, plastic, rubber, wood products, wood, organic glass, acrylic, jade, leather, shell, horn, animal sebum, double color boards, bamboo and wood products, ABS board, PVC board, fiber and composite materials etc. Nonmetal materials.
Shoes, leather clothing, trademark processing, embroidery, advertisement, decoration, wood processing, packaging and printing, laser knife die, decoration decoration industry, printing tipping template, process gifts industry, electronic industry, model industry (architecture model, aviation and navigation models and wooden toys), etc.
Applicable Material:
Maple leaf, Double-color sheet, Plexiglass, acrylic, wood, paper, leather, marble, ceramics,etc.
football laser engraving machine technicial parameter
Model | YN1380 |
Laser type | Sealed CO2 laser tube |
Laser power | 60W, 80W, 100W, 130W, 150W, 200W |
Engraving area | 1300*800mm |
Engraving speed | 0-24,000mm/min |
Resetting position accuracy | ±0.05mm |
Working voltage | AC110-220V ±10%,50-60HZ |
Power | Max 1,000W |
Operating temperature | 0-45 degree |
Operating humidity | 5-95% |
Minimum shaping character | English 1*1mm |
Graphic format supported | BMP, PLT, DST, DXF, and AI |
Driving system | Stepper |
Cooling mode | Water-cooling and protection system |
Auxiliary equipment | Exhaust-fan, air-exhaust pipe |
Controlling software | DSP control system |
Compatible software | Coreldraw AutoCAD Photoshop |
Control system | DSP control |
football laser engraving machine details

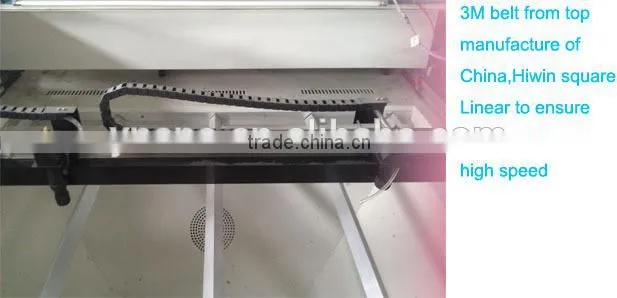

1.Adopt imported linear guiding system and ensure machine long lifespan
2.The optical lens adopt high intensity gilding silicon and non sphere focusing lens, so the lens can endure the scrubs and high temperature, needn't to be changed, thus reduce resuming cost.
3.Adopt DSP control system, and moves smoothly.
4.The laser tube adopts compulsive water cooling system, cooling chiller can control temperature automatically.(optional)
5.With rotary attachement for cylinder engraving (optional)
football laser engraving machine samples
football laser engraving machine Warranty and Service: co2 cnc laser engraving machine price
1.18 months equipment warranty and maintenance for lifetime.
2.Free installation and test before sending and free training for operators
3.Advice for the solutions best for customers requirements.
4.free training and sample provided
What’s the maintenance of the football laser engraving machine ?
1. About laser tube,when you do not use the machine, please let the water out from the output light side.
2. About water chiller, when you put water into it, please keep water clean, after long time work,
it’s better to change the water
3. About the lens and mirrors. Please keep the lens clean when you work with the machine, clean the lens
every day or every day three times as per your work quantity.
