500*300mm up and down table cheapest Low price co2 desktop mini laser engraver 40w mini laser engraving machine for stamps
Product Pictures
Laser engraving machine Specifications
1. high-speed, effectively improve the work efficiency.
2. fine carving, choose imported USA professional optical lens, the beam is more stable. Precise rear red light positioning system.
3. facilitate discharge and reclaimer system, with lifting up and down to adjust the front-end can be completely open.
4. support AUTOCAD, CORELDRAW, lasercut5.3 , PHOTOSHOP and other design software, human-machine interface is friendly, close to the industry needs
Corellaser laser engraving machine technicial parameter
Model |
YN6040 |
|
Option |
Working Area |
600*400mm |
|
According to Demands |
Laser Power |
40W/50W/60W/90W/130w/150w |
||
Laser Type |
CO2Sealed Laser Tube, 10.6μm |
||
Cooling Type |
Water Cooling |
||
Engraving Speed |
0-60000mm/min |
||
Cutting Speed |
0-40000mm/min |
||
Laser Output Control |
(0-100% Set by Software ) |
||
Min. Engraving Speed |
Chinese: 2.0mm*2.0mm, English Letter: 1.0mm*1.0mm |
||
Highest Scanning Precision |
4000DPI |
||
Locating Precision |
≤+0.01mm |
||
Controlling Software |
DSP Control System |
||
Graphic Format Supported |
DST PLT BMP DXF DWG AI LAS,etc |
||
Compatible Software |
TAJIMA,CORELDRAW,PHOTOSHOP,AUTOCAD,etc |
||
Color Separation |
Yes |
||
Drive System |
High-precision 3-phase Stepper Motor |
||
Auxiliary Equipments |
Exhaust Fan and Air Exhaust Pipe |
||
power Supply |
AC110V/220V+10%,50HZ/60HZ |
||
Working Environment |
Temperature:0-45°C,Humidity 5-95%(No Condensate Water) |
||
Optional Spare Parts |
Honeycomb Worktable, Rotary Device,Auto-focus Device |
||

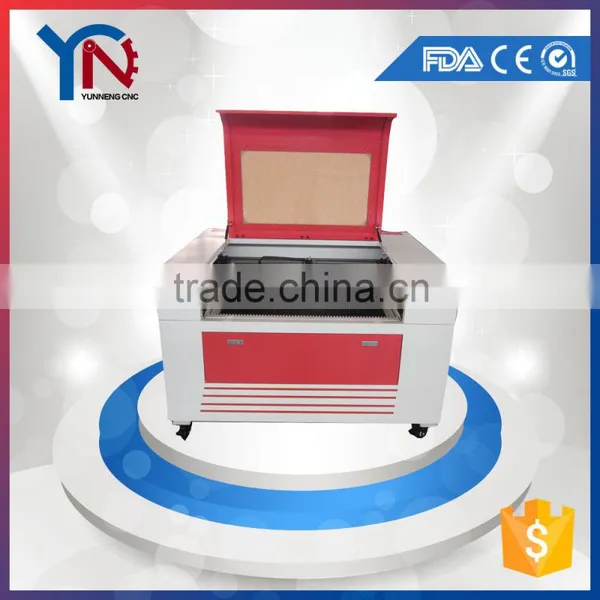

Detailed Images
Optional Accessories
Features & Advantage(laser engraving machine)
1. Working Area: 600*400mm, this can be customized according to your requirements
2. DSP control system -there has the USB interface in the control panel, do not need to connect into the computer, supporting offline work, very convenient
3. Knife worktable/Honeycomb worktable for your option -Knife worktable is better for hard materials such as wood,acrylic; Honeycomb worktable use for soft materials such as leather,fabric etc
4. High resolution laser head.-good quality and long lifetime
5. Water pump-used for cooling laser tube to protect it has long life.
6. Air pump/Compressor.-cooling the laser head to avoid the materials being burned.
7. Exhaust fan - Blow away the smoke
8. Tool box-Included the CD,User manual,and some wrenches for your work.
Applications & Samples (laser engraving machine)
Our laser engraving machine can engrave and cut various Non-metal materials.
Materials |
Engrave |
Cut |
Wood/ MDF/ Cork |
Yes |
Yes |
Acrylic/ Crystal/Plastic |
Yes |
Yes |
Glass |
Yes |
No |
Acetate/ Delrin |
Yes |
Yes |
Rubber/Stamp/ Silicon |
Yes |
Yes |
Paper/Card/ Pressboard |
Yes |
Yes |
Fiberglass / Mylar |
Yes |
Yes |
Leather/ Cloth |
Yes |
Yes |
Fabric/Cotton |
Yes |
Yes |
Silk/Textile |
Yes |
Yes |
Marble/Granite/Stone |
Yes |
No |
Ceramic/ Tile |
Yes |
No |
laser engraving machine sample show
Why Choose Us
1. 18 months warranty for this eastern laser cutting machine , except the easy-damaged laser lens,
6 month for the glass laser tube.
2. Our customer will be fully trained for the operation and maintaining technology after the order
confirmed.
3. Skilled engineer will help customer to solve the problem by MSN, SKYPE,QQ etc in time when
problem happened.
Quality control
1. Skilled and strict Quality Inspection Team is available during the material purchasing and
production procedure.
2. All finished machine we shipped out are 100% strictly tested by our QC department and
engineering department
FAQ
Questions and answers for mini laser engraving machine 6040
Q:Does your laser run from a laptop or Desktop PC?
A:both ok, as long as your operating system is window 2000 or XP or vista or win
Q:Does your laser work from printer in corel draw/autocad?
A:our laser cutter can work in coreldraw and autocad directly.
and it connects to PC by using a USB cable.
Q:What files is the software compatible with?
A:JPG,PNG,BMP, PLT, DST, DXF,CDR,AI,DSB,GIF,MNG,TIF,TGA,
PCX,JP2,JPC,PGX,RAS,PNM,SKA,RAW
