CNHTC HOWO 6720DAX School Bus

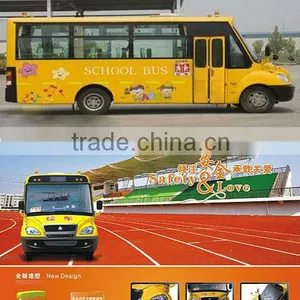

CNHTC HOWO 6720DAX School Bus thumbnail-1

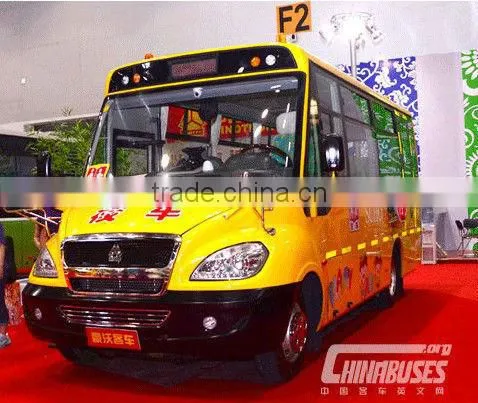

CNHTC HOWO 6720DAX School Bus photo-1
US$ 10,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Seats:
11 - 20
Emission Standard:
Euro 3
Transmission Type:
Manual
Contact Supplier Request Quote Chat Now
Jinan Hainuoer Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
china main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 11 - 20
Emission Standard Euro 3
Transmission Type Manual
Max Speed 71 - 90 km/h
Steering Position LHD
Fuel Type Diesel
Dimensions (L x W x H) (mm) 5500x2080x2650
Place of Origin Shandong, China
Brand Name SINOTRUK

Specifications

CNHTC HOWO 6720DAX School Bus
1.More safe comfigurations adoptted .
2.OEM price with high quality
3.Fast delievery.

Overall length (mm)
7245
 Engine
Model
YC4D130-30
YC4D130-20
Overall width (mm)
2350
Maker
YUCHAI
Overall height (mm)
2880(3030)
Engine location / fuel
At rear / diesel oil
Inside height (mm)
1880
Engine type
4-cylinder in-line with water cooling, turbo-charging and intercooling
Axle diatance (mm)
4050
Maximum output (kw)
95
Front overhang / Rear overhang (mm)
960/2235
Maximum torque (N.m)
470
Angle of approach / departure (º)
20/11
Displacement (ml)
4212
First step (mm)
380
Emission
 Euro Ⅲ
Euro II
G.V.W (kg)
 7500


Rated person / seats (including driver)
Bus for primary school students
25+1(2+2)
36+1(2+3)
Bus for primary and middle school students
25+1(2+2)
36+1(2+3)
Maximum driving speed (km/h)
90(Nylon Tyre);
100(Radial Tyre)

Item
Standard Configuration
Option
 Chassis
Maker
SINOTRUK

Gearbox
5-speed manual operated mechanical gearbox

Clutch
Ø300mm clutch

Front axle
2.2T integral front axle

Rear axle
3.5T rear axle, single reduction

Suspension
Muotileaved spring 8/11, Chinese shock absorber

Steering
Integral power steering gear

Braking
Air controlled dual-cycle service brakes, energy storage spring parking brakes

Fuel tank
90L

Tire
7.50-16(Speed limitation 90)
7.50R16
Battery/generator
120A.H/55A
120A.H/90A
Other
Clutch Booster, snuff brake, dryer
Automatic slack adjuster
 Body
Frame
Rectangular hollow sections welding

Interior
Ordinary interior
Moulded interior
Door and pump
Pneumatic folding door,driver door
Emergency door(side or rear)
Window / windscreen
Sliding window, full view doubling front windscreen, rear toughened glass
Closed side windows
Rear view system
Manual operated rear-view mirror,inner mirror
Blind spot mirror, Reversing/getting off monitoring system
Air conditioner
Driver fan
Engine-driven A/C 14000Kcal/h
Heating system
Water heating defrost
Independent heating
Audio visual system
Radio with MP3
Monitoring system for reversing and getting off
Wiper
Bidirectional opposite shaving wiper (with washers)

Seats
Nonadjustable passenger seats(without handrail) 25+1 seats,2+2
Seat belts
Paint
Plain coloured paint
Metallic paint
Other
One scuttles without ventilator, half sun visor,non-slip flooring, STOP sign
Automatic fire extinguisher for engine cabin, electronic clock, curtains, one scuttle with ventilator, tire cover, sun visor, aluminium decorative pattern floor

 CNHTC HOWO 6720DAX School BusCNHTC HOWO 6720DAX School Bus
