Packaging & Delivery
| Packaging Detail: | 1pcs chassis,2pcs power cable,user's manual,14pcs front panels in one carton. |
| Delivery Detail: | in 7days for 200pcs |
Specifications
Rack mount:
14-slots media converter chassis for 100M external power supply media converter,dual power supply.
Rack mount:
Name: media converter rack mount
Type: APT-CPS2-MC14
Scale: 14 groove media converter rack mount
APT-CPS2-MC14 media converter rack mount:
The rack mount is a communication-level product specially designed and developed
as the supportive equipment for communication optical network projects. It can be
used in the working environment with high reliability, high capacity, high integration
and high performance and features its stable performance, large power-supplying
capacity, easy operation and convenient maintenance and so on. Before use,
users shall read this user's manual thoroughly and operate the rack mount as per
the installation procedures so as to avoid the damage to the machine.
1) APT-CPS2-MC14 media converter rack mount: 1 unit
2) Power cord (for power of 220V) or power connector (for power of -48V): 2 pieces
3) Front baffle: 14 pieces
4) User's manual: 1 copy

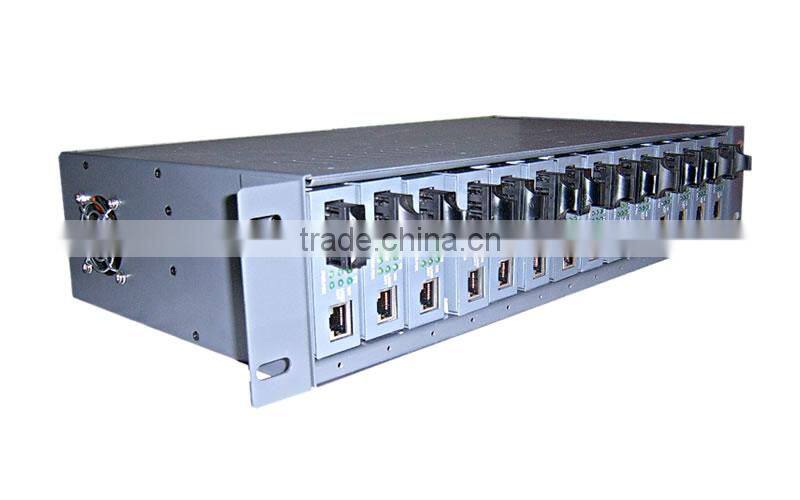

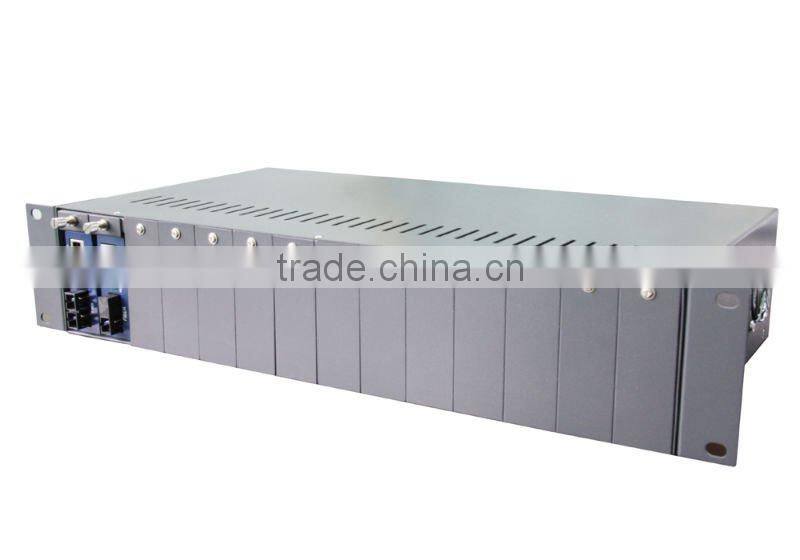

APT-CPS2-MC14 rack mount is the highly compositive central equipment for optical fiber
transceiver. One rack can centralized encase 16 number of 100M or 10/100M multi-module
or single-module fiber optic media converter, and centralized power supply.
The design reduces the wiring and simplifies the structure, also convenient for
management and maintenance.

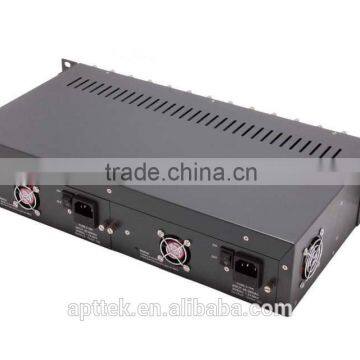

The APT-CPS2-MC14 rack mount is compatible with heat insert and pull out, optional
single power module and dual power module. Two power module should be power supply
at the same time with adopt dual power module, which can reduce the load of
each power module. When one channel has fault, the other one can supply the power
independently to make the media converter's working can't be interrupted.
For maintenance and replacement the power module, you shouldn't pull out the fiber
optic media converter, and shouldn't take down the rack mount, only need to pull
out the blooey power module to repair or updating, make the maintenance convenience
and shortcut. It affords high dependability for network system.
Featuring high efficiency, easy operation, easy maintenance and economic, it is applied
to optical fiber hub resolve project.
Technical parameters:
1. Inserting grooves: 14
2. Power input: AC 100-250V, 50-60Hz
3. DC output: DC+5V
4. Ripple: <20mm
5. Noise: <50mm
6. Power protection: over-voltage protection, over-current protection
7. Working temperature: 0 - 50 degrees
8. Storage temperature: -20~65 degrees
9. Relative humidity: 5% - 95% (non-condensing)
10. Outer dimensions: 485 x 245 x 90mm (L x W x H), 19" 2U high
