8PCS 10/100M LANS RJ45PORT 2PCS SFP Ports fiber optic switch POE Ethernet Switch

neutral package

8PCS 10/100M LANS RJ45PORT 2PCS SFP Ports POE Ethernet Switch:

2000 Series

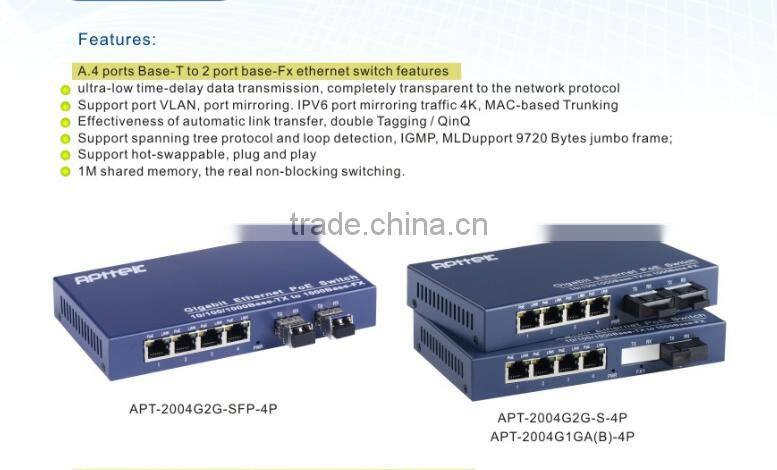

a.APT-2004G2G-SFP-4P 4 ports Base-T to 2 port Base-Fx Poe ethernet switch features

1. Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE802.3af / at standards

2. Ethernet port access rate of 10/100 / 1000M, full / half duplex adaptive

3. Ultra-low time-delay data transmission, completely transparent to the network protocol

4.Support port VLAN, port mirroring. IPV6 port mirroring traffic 4K, MAC-based Trunking

5. Effectiveness of automatic link transfer, double Tagging / QinQ

6. Support the spanning tree protocol, IGMP, MLD

7. Support 9720 Bytes Jumbo frame

8. Support hot-swappable, plug and play

9. Maximum Poe power can reach to 25W, power supply distance 100m;

10. MTBF time>50,000 hours

11. 1M shared memory, the real non-blocking switching.

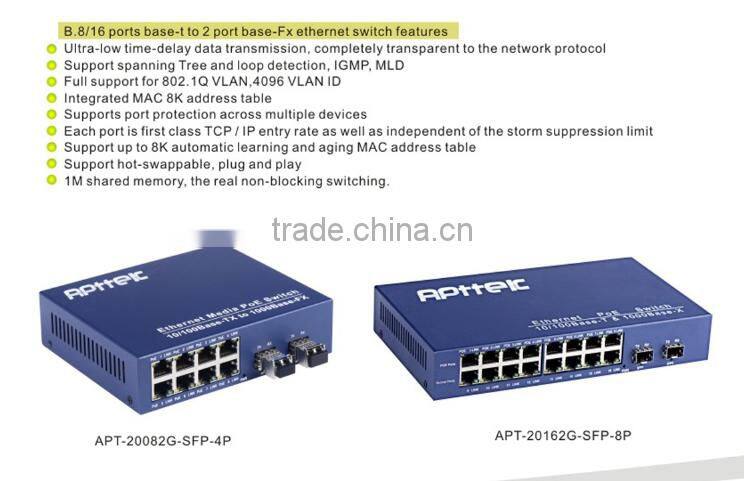

b.APT-20082G-SFP-8P,APT-20162G-SFP-8P 8/16 ports Base-T to 2 port Base-Fx Poe ethernet switch

features

1. Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE802.3af/at standards

2. Ultra-low time-delay data transmission,completely transparent to the network protocol

3. Support spanning tree and loop detection, IGMP, MLD

4. Full support for 802.1Q VLAN,4096 VLAN ID

5. Integrated MAC 8K address table

6. Supports port protection across multiple devices

7. Each port is first class TCP/IP entry rate as well as independent of the storm suppression limit

8. High performance search engine, support up to 8K automatic learning and aging MAC address table

9. Provides two SFP/FC/SC connector slot, you can freely choose SFP/FC/SC modules to achieve different transmission distance;

10. Support hot-swappable, plug and play

11. Maximum Poe power can reach to 25 W, power supply distance 100m;

12. MTBF time> 50,000 hours

13. 1M shared memory, achieve real non-blocking switching.
