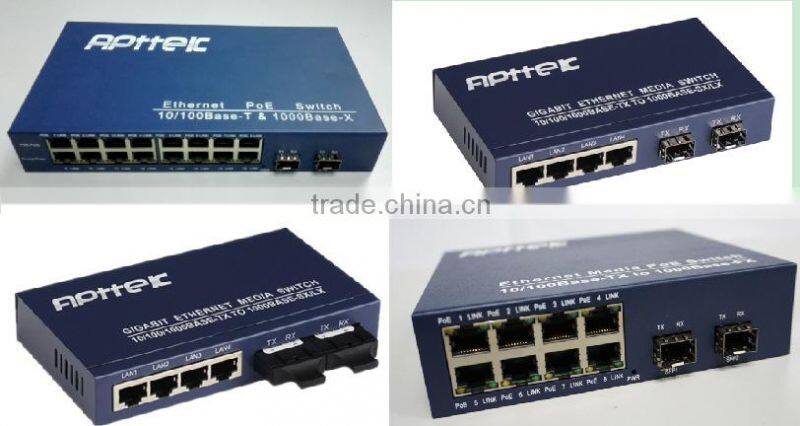

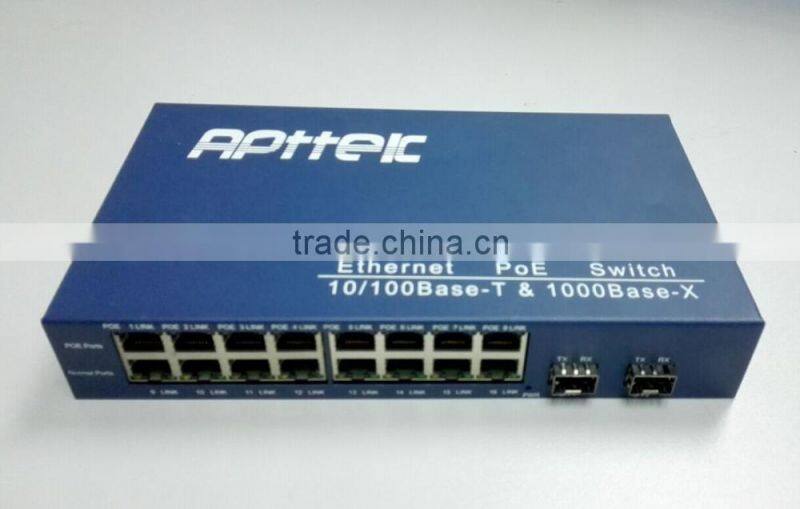

4/6/8/16 ports and 2 SFP ports Gigabit ethernet optical fiber switch:
APT-2104G2S-2SFP is belonged to the switch of 2000series,2 ports for 1000 Base SFP ,LC or SC, single mode and multi mode, single fiber and dual fibers can be selected;the max transporting distance can reach 120km, It adopts high quality network switch chip, and its all ports support non-blocking, across the packet forwarding; it is very suitable for data communication,video monitoring and relay transmission equipment during to flexible and simple usage.
Technical parameters
(1) Operating standards:IEEE802.3/u/z/ab,10/100/1000Base-T and 1000Base-SX/LX
(2) Flow control
Full Duplex: IEEE802.3x flow control
Half duplex: back pressure flow control
(3) Connector: UTP: RJ-45:10/100/1000Mbps; SFP slot: 1000Mbps
(4).Ultra-low time-delay date transmission, completely transparent to the network protocol
(5).Port support IEEE802.X VLAN, port monitoring.IPV6 port monitoring flux is 4K,base on MARC`s Trunking
(6)Effectiveness of automatic link transfer,dual Tagging/QinQ
(7).Support for spanning tree and loop detection,IGMP,MLD
(8)Bult-in 9720Bytes long data packet
(9) Cable: UTP: Cat.5 or 6 UTP (the max distance up to 120m)
Multimode Fiber:50/125,62.5/125μm (the max distance up to 2KM)
Single mode Fiber: 9/125μm (the max distance up to 120km)
(10).Support 2 ports for SFP/FC/SC, to feel free to select optic modules for SFP/FC/SC to achieve single/multi mode or different transporting distances.
(11).Support hot-swappable, plug and play
(12) LED: PWR,F1 Link/Act,F2 Link/Act;TP1~TP4 Link/Act,TP1~TP4 100,TP1~TP4 1000;
Dynamic feedback the status for link connection and fault detect.
1.3 years warranty
2. free customized design
3.life time maintainence
APT Prosper Technology Co., Limited was founded in 2004, which is located at the central part of Longgang District, Shenzhen. We are a high tech enterprise and specialize in the research, production, marketing and service of optical communication equipment. With our independent brands APTTEK, our main products include three series: Ethernet media converters, Digital video optic transceiver ,fiber switch and optical module.
With the unceasing development, APT Prosper Technology Co., Ltd, provide service and management with the purpose of "mutual benefits" and the mission of "Skill in quality specialized in service", offering best service and exquisite products to our honored customers.
To make the quality guaranteed and improvement, the company is strictly operated according to the ISO9001: 2008 quality control system, CCC, CE standard. We pay great attention to the cultivation of talents, maximizing the employees potential with humanized management to boost staffs greatly; And providing a comprehensive training and guidance, continuously improving process increase efficiency and reduce the waste to strength competitive power. Our constantly introducing data and video optical transmissions are widely used among the domestic operators and industry users with customer's praise. The strategy of going out, our oversea sales department successful enlarge overseas market, make our products have been acknowledged by many overseas users as a global partner!
Our goal is continuously satisfy our customers, provide high quality products and services to global partners, with first class technical support and solutions promote the development of the information net construction.
any doubts please contact me .we would love to give help , my skype:apt.8866
