Long working fiber media converter sfp fiber connector fiber optic connector

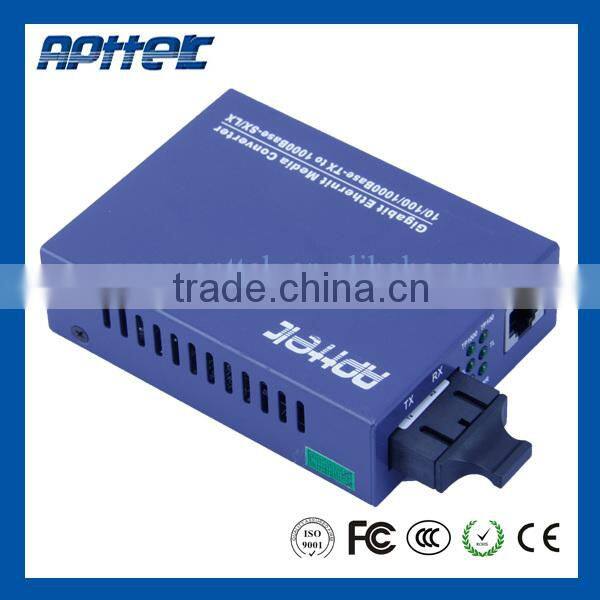

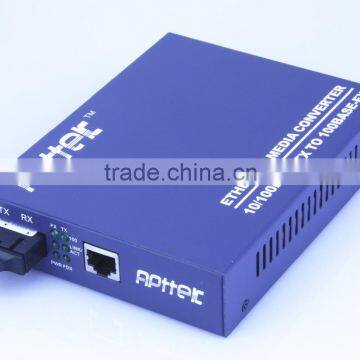

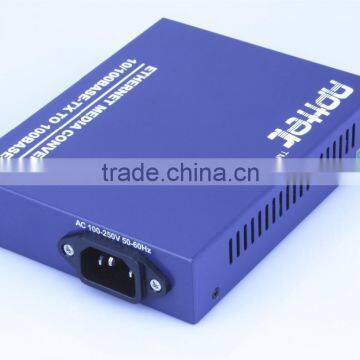

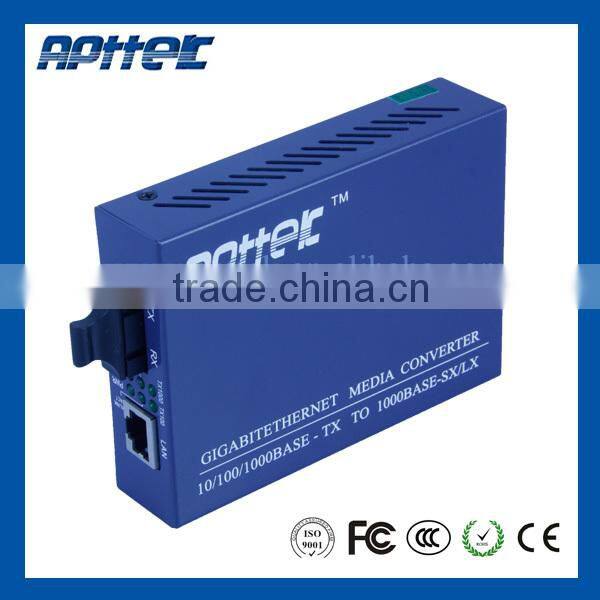

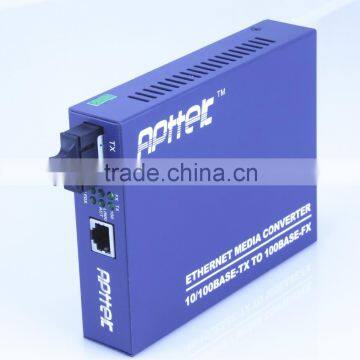

fiber optic connector detail image
fiber optic connector product summarize
This series of fiber optic connector adopted powerful ASIC chip,simple design,high reliability,low power consuming and so on.Use high quality optical transceiver modules,optical properties provide good electrical characteristics,to ensure reliable data transmission,long working life.This converter support transmit distance have following types:2Km(Multi mode),20,40,60,80,100,and 120 Km.
Support alarm function can remind link failure occurs and prompts fault location in time and to force the Ethernet port link power interruption.Built-in 8 bit DIP switch,User’s easily adjust the various of transmission and working mode,then choose whether to open link alarm function.6 LED indicator,can dynamic feedback link connection state and fault detection.
Wholesale fiber media converter sfp fiber connector fiber optic connector
fiber optic connector specification
Item Name |
10/100 M media converter |
Standard |
IEEE802.3,IEEE802.3u,10/100 Base-TX,100Base-FX |
Flow control |
IEEE8.2.3x port flow control and back pressure control |
Transmission speed |
10/100M auto-negotiation |
Transmission mode |
Full-duplex and half-duplex(auto-negotiation) |
Conversion mode |
Modified Cut-through,store and forward,converter mode |
MAC address |
1K |
Buffer space |
128 KB |
Packet length |
Store and forward:2046 Bytes,converter mode,infinite |
Time-delay |
9.6μs |
Bit error rate |
≤10(-9) |
MTBF |
100,000 hours |
Power supply(External) |
AC 100~265 V,50/60 Hz,DC 5V 1 A |
Power dissipation |
<2.5 W |
Connector |
Electric port:RJ 45,Fiber port:SC/FC |
Twisted-pair |
Cat.5,Cat.6,Direct wire and cross wire |
Multimode fiber |
50/125,62.5/125 μm |
Single mode fiber |
8/125,8.3/125,9/125 μs |
Wavelength |
1300/1310/1550 nm |
Reach distance |
|
Multimode |
2Km |
Single mode |
20/40/60/80/100/120Km |
At.5 twisted-pair |
100m |
Working temperature |
0~50 ℃ |
Storage temperature |
-20~70℃ |
Humidity |
5~90% |
Size |
95*70*25 mm(External power supply) 140*110*30mm(Built in power supply) 115*88*25 mm(Card without metal box) 117*86*27 mm(Card without metal box) 158*128*32 mm(Built-in power supply) |
fiber optic connector contact ways
fiber optic connector manufacturer information
APT prosper Technology Co.,Ltd was founded in 2004,located at the central part of Futian District,Shenzhen.We are a high tech enterprise and specialize in the research,production marketing and service in optical communication field with our independent brands APTTEK.Main product are:Ethernet media converter,Digital video optic transceiver and optical module.
With the unceasing development,APT provide service and management with the purpose of MUTUAL BENEFITS and the mission of SKILL IN QUALITY SEPCIALIZED IN SERVICE,offering best service and exquisite products to you-our honored customers.
To make the quality guaranteed and improvement,we strictly operated according to the ISO9001:2008 quality control system,CCC,CE standard.We pay great attention to the cultivation of talents,maximizing the employees potential with humanized management to boost staffs greatly;and providing a comprehensive training and guidance,continuously improving our process increase efficiency and reduce the waste to strength competitive power.Our constantly introducing data and video optical transmissions are widely used among the domestic operators and industry users with customer’s praise.The strategy of going out,our oversea sales department successful enlarge overseas users as a global partner.
Our goal is continuously satisfy our customers,provide high quality products and services to global partners,with first class technical support and solutions promote the development of the information of the information net construction.
Wholesale fiber media converter sfp fiber connector fiber optic connector package and delivery
Package:
Main body *1
Manual *1
Charger * 1
Warranty card *1
All this in a carton case
Leading time:5~10 working days
Delivery way:By air,sea and express(DHL,EMS,Ups,Fedex,Tnt)
t:
Payment
T/T,Paypal
Question about fiber optic connector
Q1 . What your MOQ?
A1 .1 set is ok,whatever how many you need,and we will also give you the best service.
Q2.What certification did you get?
A2 : Our product strict operate the ISO9001:2008 quality control system and we passed the CE,CCC,ROHS and SGS test,you can trust us.
Q3 :What about your package and delivery,will it broke during shipping?
A3:You don't need to worry about the package,we will use shockproof case for delivering.
Q4.What your common delivery way?
A4:By air,sea and express(Ups,Fedex,TNT,EMS...)We will make a perfect delivery plan for you.
Q5.Tell me some detail about warrant time.
A5:We give you the promise if any question during 1 year and not cause by human factors,we will fix it.
fiber media converter sfp fiber connector fiber optic connector
