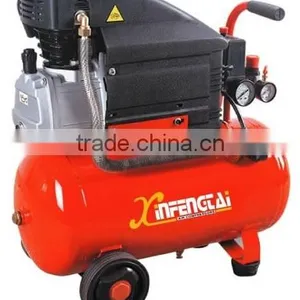

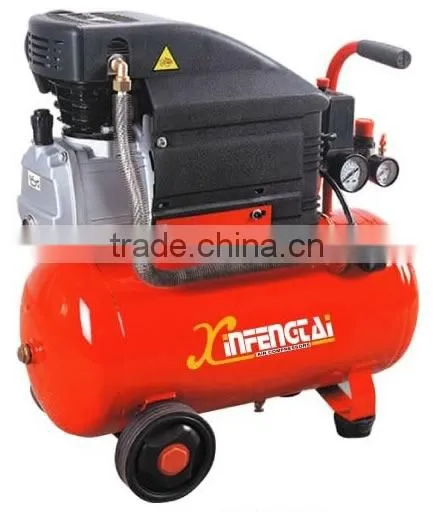

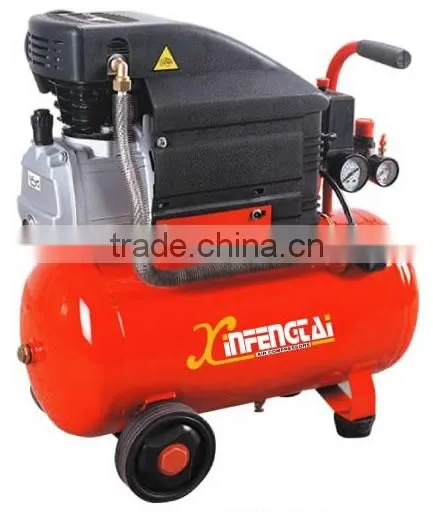

TD2525 series direct driven mobile piston air compressor
- 10000 Set / Sets per Month
- ningbo
- T/T
- 2016 Christmas decoration wool felt balls
- Atlas Copco diesel portable compressor XAHS650E in stock
- Atlas Copco diesel portable air compressor Y1300 in stock
- Atlas Copco diesel portable air compressor XAS88 in stock
- Atlas Copco diesel portable air compressor XRHX930E in stock
- Atlas Copco diesel Medium and high pressure air compressor B7-41
Product Details
Type: | Piston | Configuration: | Portable | Power Source: | AC Power |
Lubrication Style: | Lubricated | Mute: | Other, 78dB-A | Place of Origin: | Zhejiang, China |
Brand Name: | Changou | Model Number: | TD2525 |
Product Description
Specifications
TD2525 series direct-driven portable piston air compressorModel: TD2525 series mobile air compressor, portable piston air compressor, of steady manufacture and excellent performance.
Motor(KW/HP): 1.8/2.5
Rated Pressure(BAR/PSI): 8 /115
Speed(rmp): 2850
Capacity(M3/min): 110
Cylinder(diameter Xpiece): 47*1
Volume of gas storage tank(L): 18
Overall dimension(LXWXHcm): 54*28*61
Weight(kg): 19.5
Packing: 1pcs/carton
Color usually be painted red, and grey. If you need personal design, pls inform us, thx.
MODEL | POWER | CYLINDER | SPEED (r.p.m) | PRESSURE (bar) | CAPACITY (L/min) | TANK (L) | OVERALL DIMENSIONS (L×W×H) (CM) | WEIGHT (KG) | |
HP | KW | ||||||||
TD2021 | 2 | 1.5 | Ø47×1 | 2850 | 8 | 110 | 21 | 60×29×58 | 24 |
TD2024 | 2 | 1.5 | Ø47×1 | 2850 | 8 | 110 | 24 | 60×29×59 | 25.5 |
TD2525 | 2.5 | 1.8 | Ø47×1 | 2850 | 8 | 115 | 25 | 60×29×59 | 26 |
TD2540 | 2.2 | 1.8 | Ø47×1 | 2850 | 8 | 120 | 40 | 67×29.5×71 | 34 |
TD3030 | 3.0 | 2.2 | Ø48×1 | 2850 | 8 | 120 | 30 | 64×28×60 | 32 |
TD3050 | 3.0 | 2.2 | Ø48×1 | 2850 | 8 | 120 | 50 | 73×35×64 | 35 |
