Price Cheap Quality Quaranteed Rubber Tire Cutting Machine
Rubber tire cutting machine :

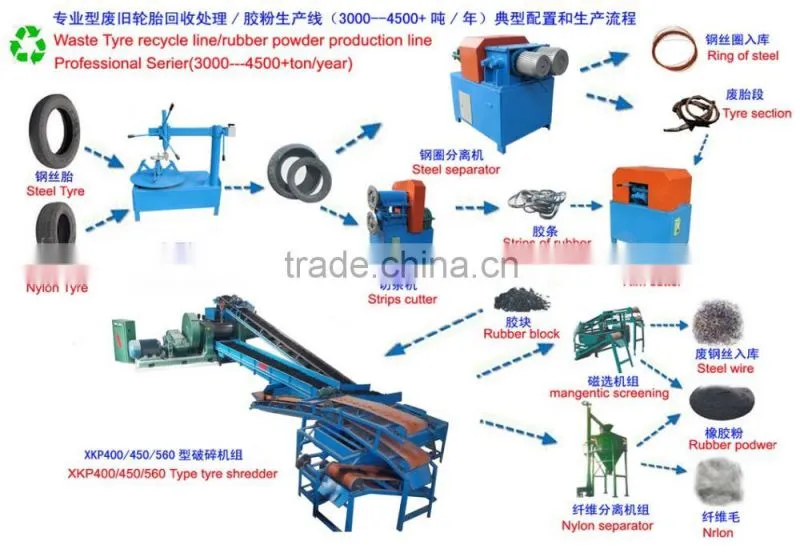

Process Flow:
Waste tire--Cutting loop mouth--Cutting strip--Cutting dice crushing filtering--Magnetic separating filtering--Finished products
The configuration table of rubber tire cutting machine | ||||
No. |
Equipment |
|
Power(KW) |
Function |
01 |
Ring cutter |
|
3 |
Cut sidewall and the top of tire’ s connection so that tire sidewall and the top completely separated |
02 |
Strips cutter |
|
4 |
Cut sidewall into wide of stripe 3-5cm, and tire circle reserved |
03 |
Rim cutter |
|
7.5 |
Cut 3-5cm strips into 3.5cm block |
04 |
Steel separator |
|
11 |
Separate the steel and rubber from tire circle mouth parts |
05 |
Linear vibrating screen |
|
5.5 |
It will classify the rubber powder for first time (8-10 mesh, include thin steel) |
06 |

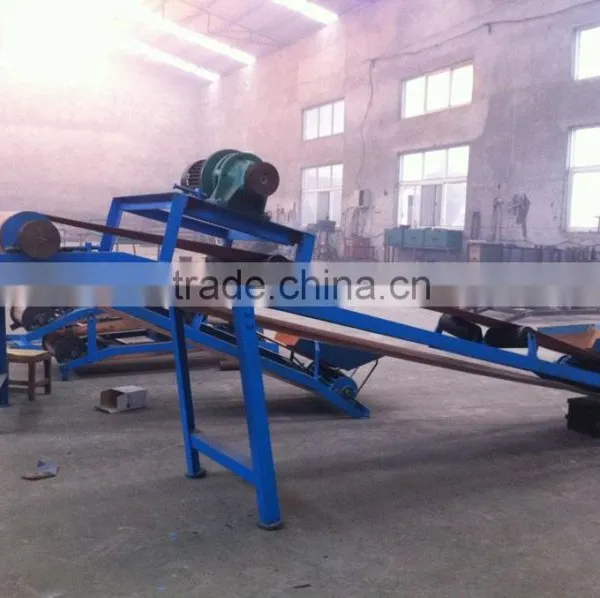

Large conveyor machine |
|
3 |
Use to transport not up to 8-10 mesh size rubber powder re-back to tire shredder machine to do it again |
07 |
Magnetic system |
|
0.75 |
It can classify thin steel from rubber powder |
08 |
Fiber separator |
|
5.5 |
It can separate the fiber from rubber |
09 |
Powder screen |
|
1.5 |
Second time for classify rubber powder to 20-30 mesh size |
10 |

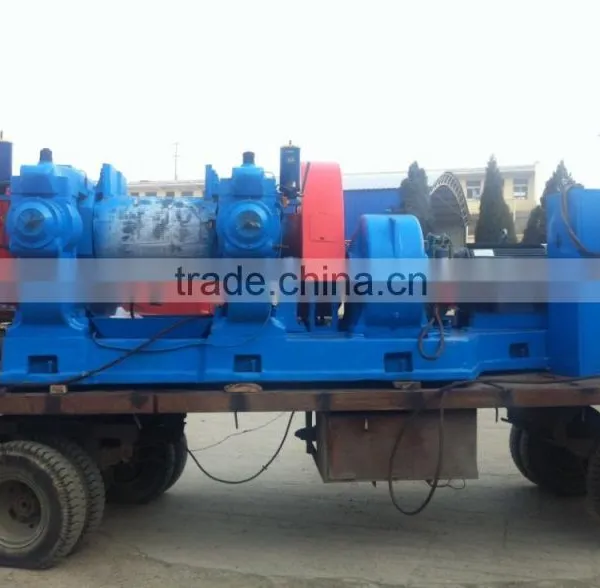

Tire crusher XKP 400/450/560 |
|
45/60/90 |
Crush block of tire into fine rubber powder, according to capacity select which model need |
Structures:

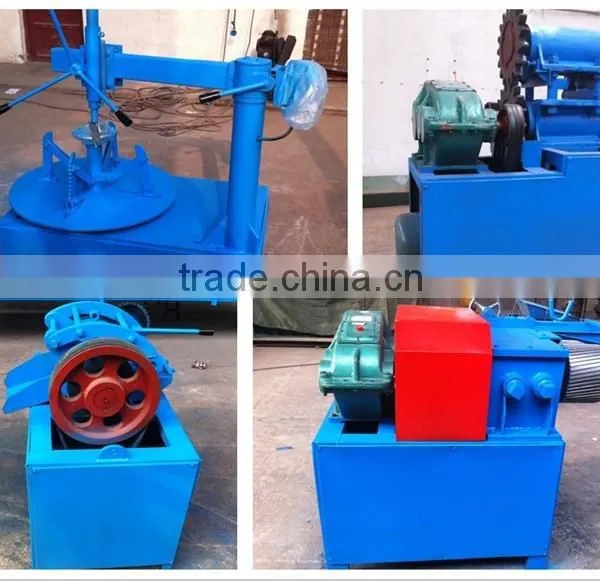

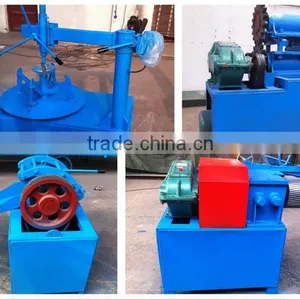

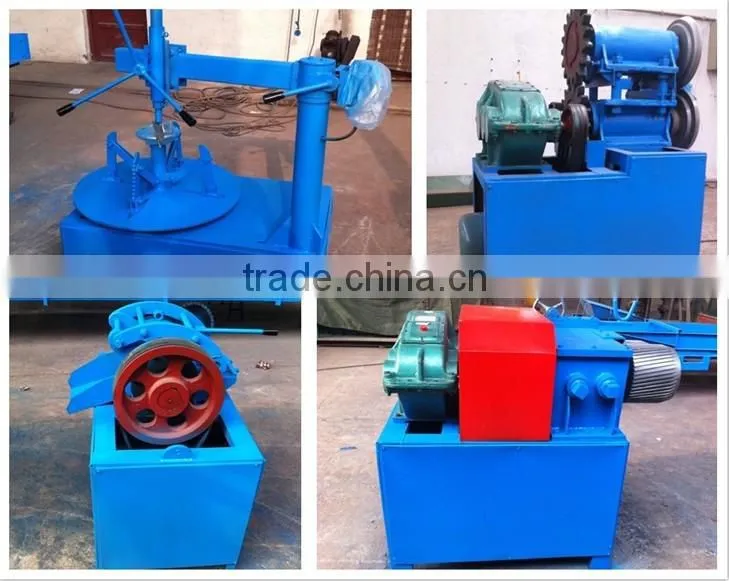

Ring cutter: Cut the sidewall and the top of tire's connection
Strips cutter: Cut sidewall into wide of strips is 3-5cm, and tire circle reserved
Rim cutter: Cut strips into tire block
Steel Separator: separate the steel from ring circle.

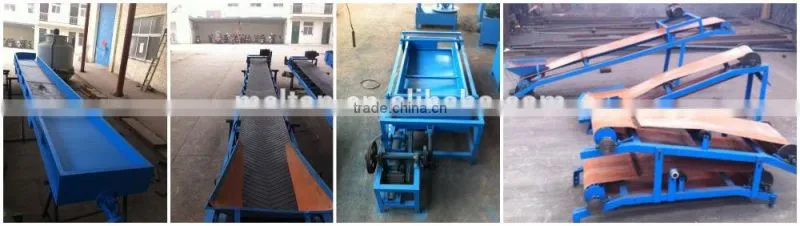

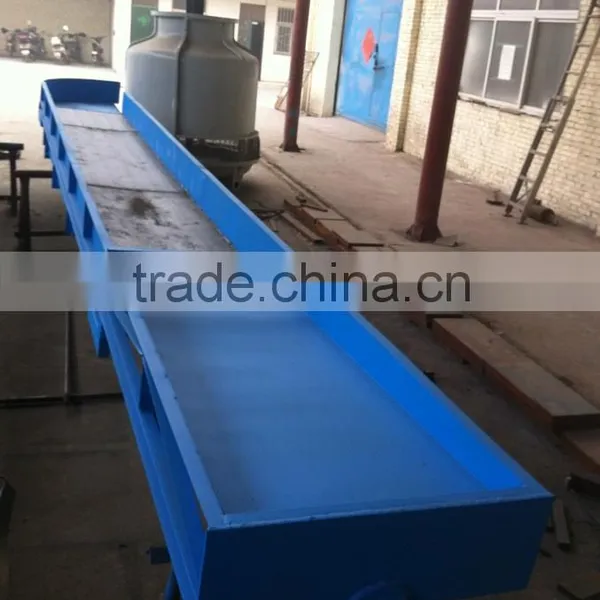

Linear vibrating screen: It will classify the rubber powder for first time

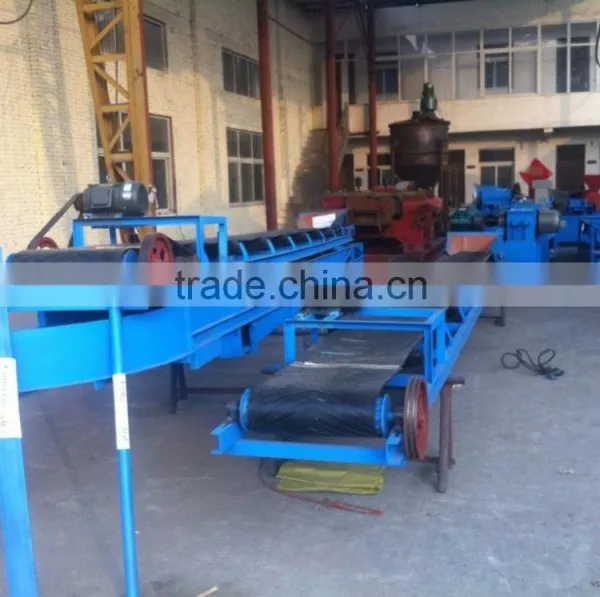

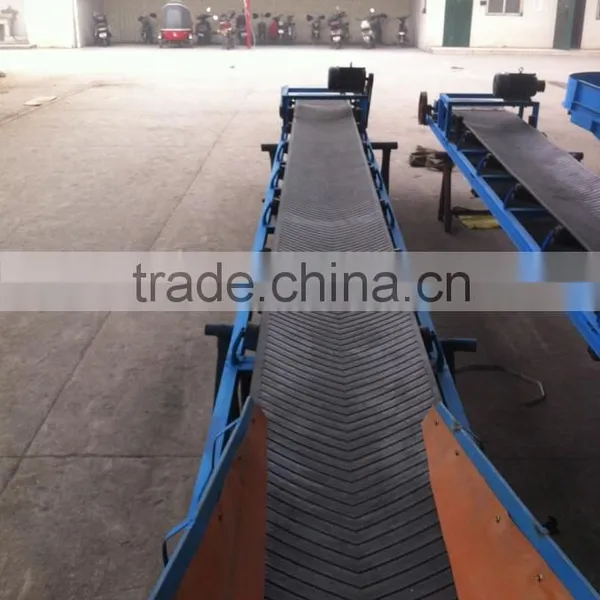

Conveyor machine: Use to transport not up required size re-back to tire shredder machine
Magnetic system: It can classify thin steel from rubber powder
Powder screen: Second time to classify rubber powder

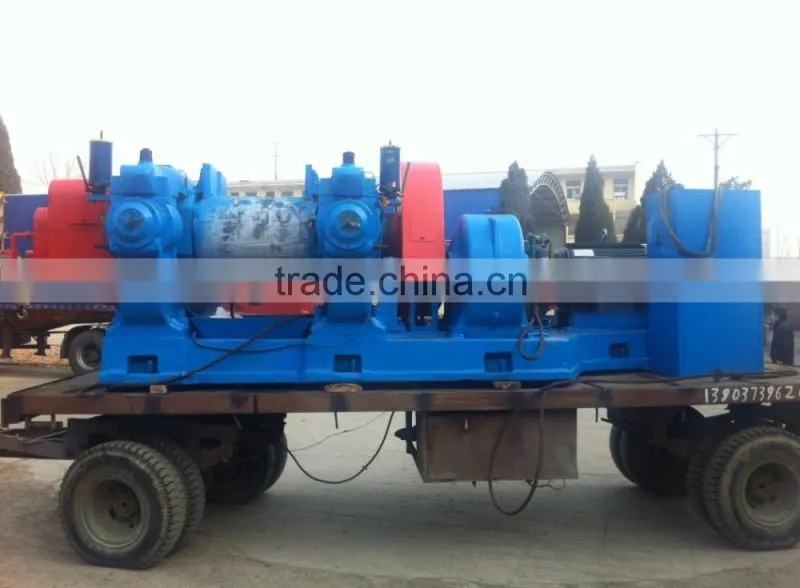

Tire crusher: Crush tire block into fine powder
Fiber separator: Separate the fiber in powder
Our machine can deal with 0.65-1.2m tires, and the whole line need 3-4 workers to operate at least.
The space requirement is at least 15m length *8m width *4m height.
The machine can make the powder into 10 -30 mesh.
Equipment warranty is 2 year.
Delivery time is 25 days.
Complete line need a 40 open top container for transportation.
Installation: 7days
We have three kinds of Model XKP400/450/560.
XKP400 150kg per hour
XKP450 300kg per hour
XKP560 500kg per hour
Rubber Powder Application
1 Sports venues
2 Rubber runway/ Recreation ground /Bowling alley
3 School stadium /Tennis and basketball courts /Sidewalks ……
4 Traffic
5 Modifying asphalt /Tire /Speed-down zone / Raft ……
6 Daily life thing
7 Elastic / Rubber shoes / Raincoat……
8 Stationery and sporting goods
9 Eraser /Ping-Pong /Basketball football……
10 Construction/building materials
11 Rubber tiles /Carpet pad /Floor /Roof liner and cover
12 Waterproof materials/ Roof and wall waterproofing membrane……
13 Industrial products
14 Reclaimed rubber / Triangular belt /Gasket ring
15 Hose /Conveyor belt……
About Us
1.We are the leading manufacturer specialized in designing and manufacturing waste tire rubber powder equipment in china with the experience of more than 20 years.
2.Manufacturing according to the ISO9001:2008 quality control system guidelines.
3.Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
