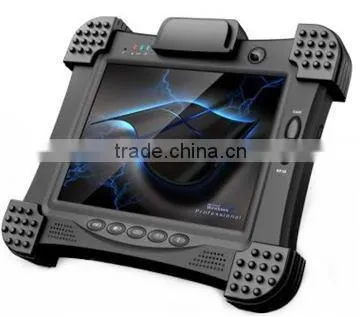

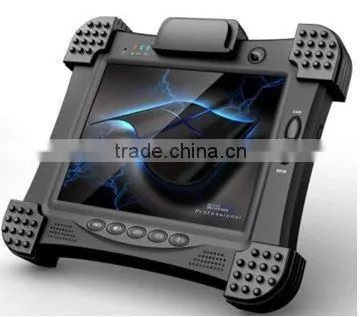

Help Center8.4"tablet/Portable PC,800*600,intel Oak Trail Z670 CPU,2G Memory,1*USB,IP64
Related Products
-
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPTUS$ 1 - 2MOQ: 1 Piece -
8'' Intel Bay Trail J1900 Quad Core Panel pc With RS485,USB,RJ45,support Win7,Win8,android,Wes7,Linux OSUS$ 1 - 2MOQ: 1 Piece
-
10.4 Inch Waterproof and Dustproof Intel Bay Trail J1900 Quad Core Rugged Panel PC/All in One PCUS$ 1 - 2MOQ: 1 Piece
-
12.1" Android Panel Pc, OS Support Win10, HDMIVGAUS$ 1 - 2MOQ: 1 Piece
-
15 Inch Waterproof and Dustproof Intel Bay Trail J1900 Quad Core Rugged Panel PC/All in One PCUS$ 1 - 2MOQ: 1 Piece
8.4"advanced X86 Platform industrial touch screen panel pc /Four-wire analog resistive Industrial Panel PC | ||
| Institutions and power | Material |
Magnesium alloy die casting, rubber Corner |
Installation |
Car reinforcement, a desktop stand, wall mount bracket and special straps and palm rest, etc. |
|
Power |
Input:100~240V AC,Output:DC 19V/2.1A |
|
Panel color |
Dark gray |
|
| Battery | Integrated 10.8V 2890mAh lithium battery; scalable 10.8V 2700mAh lithium battery (support hot-swappable) | |
Overall dimensions |
240 × 200 × 30 mm (Width × Height × Depth) |
|
Weight |
1.3KG (with battery) |
|
System parameters |
Processor |
Intel Oak Trail Z670 1.5GHz |
Chipset |
Intel SM35 |
|
Memory |
Onboard 2GB DDR2 800MHz SDRAM |
|
Disk |
Support 16G~64G SSD |
|
Show |
Intel GMA600, supports synchronous, asynchronous dual display |
|
Network |
Wi-Fi 802.11 b/g/n, Bluetooth |
|
Speaker |
Built-in 2×3 watt |
|
Camera |
1.3-megapixel front, rear 3 million pixels |
|
| TMP | Support TPM 1.2 | |
| RFID | HF 13.56MHz,ISO standard 14443A(B)(Optional) | |
| 3G | Support WCDMA/CDMA2000/(Optional) | |
Barcode Scanner |
2D barcode scanner (Optional) |
|
Input-output interface |
1×DC IN Power Input Terminal |
|
1×USB2.0 | ||
1×Microphone | ||
| 1×Headphone | ||
1×Stylus | ||
LCD Display |
Size/Type |
8.4" XGA TFT LCD |
Resolution |
800×600 |
|
Maximum color |
16M |
|
Display Area |
170.4×127.8mm |
|
Reaction Time |
16ms |
|
Backlit |
2CCFL |
|
Backlit MTBF |
50,000 Hours |
|
Brightness |
350cd/m² |
|
Contrast |
600:1 |
|
Lattice |
0.297×0.297 |
|
Maximum Angle |
(H)160/(V)140 |
|
Touch Screen |
Size/Type | 8.4 "Precision Resistive |
Resolution |
4096x4096 |
|
Touch Response Time |
<5ms |
|
Surface Hardness |
3H |
|
Click To Life |
250 Grams Efforts, 35 Million Times |
|
Stroke Life |
250 Grams Effort, 5,000,000 Times |
|
Transmittance |
More Than 80% |
|
| Environmental parameters | Operating Temperature |
-10~50°C |
Storage Temperature |
-20~+60°C |
|
Relative Humidity |
||
| Waterproof and dustproof | IP64 | |
Shock Shock |
MIL-STD-810G |
|
Product Performance Show
