Home > Computer Products > Tablet PC > All-in-One Tablet PC > 15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT

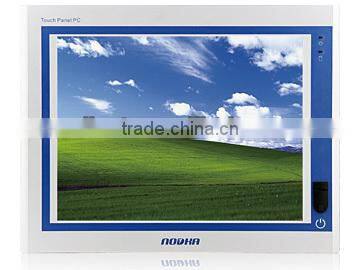

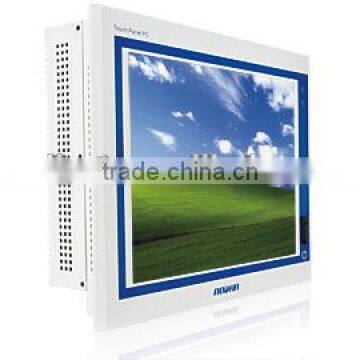

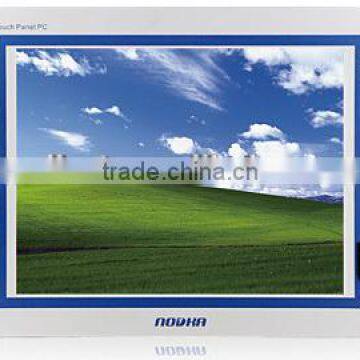

15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT

15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT thumbnail-1
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT thumbnail-2
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT thumbnail-3
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT photo-1
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT photo-2
15" IPC, Intel Duo Core N2800 Cpu,fanless,1G Memory,2*RJ45,6* RS232,5*USB,1*LPT photo-3
US$ 1 - 2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Screen Size:
Other, 15"
Processor Manufacture:
Intel
Processor Type:
Intel Core2 Duo
Contact Supplier Request Quote Chat Now
Shanghai CC Electronics Science&Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Screen Size Other, 15"
Processor Manufacture Intel
Processor Type Intel Core2 Duo
Processor Main Frequency 2.0GHz
Hard Drive Capacity 320GB
Memory Capacity 1GB
Touch Screen Type Resistance Screen
Place of Origin Shanghai, China
Brand Name NODKA
Model Number TPC6000-8150T
Operating System Windows XP
15"X86 Platform industrial waterproof touch screen panel pc/Five-Wire Analog Resistive Temperature Industrial Panel PC
Institutions and power

 Material

 Magnesium alloy front panel combined PET film to achieve NEMA IP65 protection grade, all-steel box structure and a large area of the heat sink fins

 Installation

 Embedded

 Power

 6~30V DC Power Supply

 Panel color

 White

 Overall dimensions

 398 × 308 × 88.5 mm (Width × Height × Depth)

 Box Size

 372 × 288 × 88.5 mm (Width × Height × Depth)

 Hole size

 375 × 291 mm (Width × Height)

System parameters

 Processor

 Intel Core Duo 2.0GHz low-power processor, 533MHz front side bus frequency

 Chipset

 Intel 945GSE&ICH7-M

 Memory

 Onboard 1GB DDR2 533MHz memory, upgradeable up to 2GB

 Disk

 Support SATA 2.5 "HDD, Optional Electronic Drives

 Show

 Intel GMA950 224MB Shared Memory, Dual Display Support

 Network

 2 RTL8111DL 10/100/1000Mbps RJ45 Ports

 Wireless LAN

 IEEE802.11b/g 54Mbps (Optional)

 Audio

 RTL ALC662 Audio Controller, LINE-Out And MIC-In Port

 Expansion Slots

 2 PCI Slots

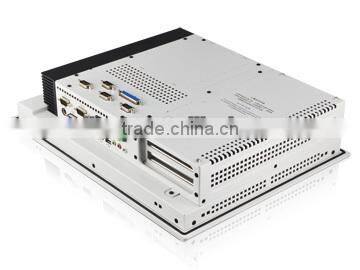

 Input-output interface

 1×DC IN Power Input Terminal

 1×DB15 VGA Display Port

 2×RJ45 Network Port

 1 × USB2.0 front panel ports, 4 × USB2.0 ports Rear

 6 × RS-232 Port

 1×LPT Parallel Port

 1×Mouse/Keyboard Interface

 1×Microphone Input /1×Line-out /1×Linear Input Port

 CD-ROM

 Optional Notebook Drive

 Watchdog

 0 ~ 255 Seconds Programmable Settings

 Operating system

 Full Support Windows ® 2000 pro / Windows ® XP pro / Windows ® VISTA / Windows ® 7/Windows ® XPE/Linux

LCD Display

 Size/Type

 15"SXGA TFT LCD

 Resolution

 1024×768

 Maximum color

 16M

 Display Area

 304×228mm

 Reaction Time

 16ms

 Backlit

 2CCFL

 Backlit MTBF

 50,000 Hours

 Brightness

 250cd/m²

 Contrast

 600:1

 Lattice

 0.297×0.297

 Maximum Angle

 (H)100/(V)120

Touch Screen

  Size/Type

 15"Five-Wire Analog Resistive Temperature

 Resolution

 4096x4096

 Touch Response Time

 <5ms

 Surface Hardness

 3H

 Click To Life

 250 Grams Efforts, 35 Million Times

 Stroke Life

 250 Grams Effort, 5,000,000 Times

 Transmittance

 More Than 80%
Environmental parameters

 Operating Temperature

 0~60°C

 Storage Temperature

 -20~+70°C

 Relative Humidity

 10~95%@40°C(Non-Condensing)
 Vibration  50 ~ 500Hz, 1.5G, 0.15mm Peak

 Impact

 10G/Peak(11ms Sec)



Product Performance Show







15" IPC, Intel duo core N2800 cpu,fanless,1G memory,2*RJ45,6* RS232,5*USB,1*LPT









  15" IPC, Intel duo core N2800 cpu,fanless,1G memory,2*RJ45,6* RS232,5*USB,1*LPT









15" IPC, Intel duo core N2800 cpu,fanless,1G memory,2*RJ45,6* RS232,5*USB,1*LPT
