15"open-high-brightness LCD Module/ Touch Screen Panel,VGA Signal Input

Name: 15"open-high-brightness LCD Module/ Touch Screen Panel,VGA Signal Input
Brand: NODKA
SKU: 116612491

US$ 1 - 2 MOQ: 1 Piece

Key Specifications

Products Status:

Stock

Application:

Other, Open frame

Screen Size:

Other, 15"

Shanghai CC Electronics Science&Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Other, Open frame

Screen Size Other, 15"

Response Time 8ms

Brightness Other, 1500cd/m2

Interface Type Other, VGA,Video

Contrast Ratio 700:1

Resolution 1024 x 768

Panel Type TFT

Pixel Pitch 0.297(H) x 0.297(V) mm

Brand Name NODKA

Model Number ND-OF150EECL

Place of Origin Shanghai, China

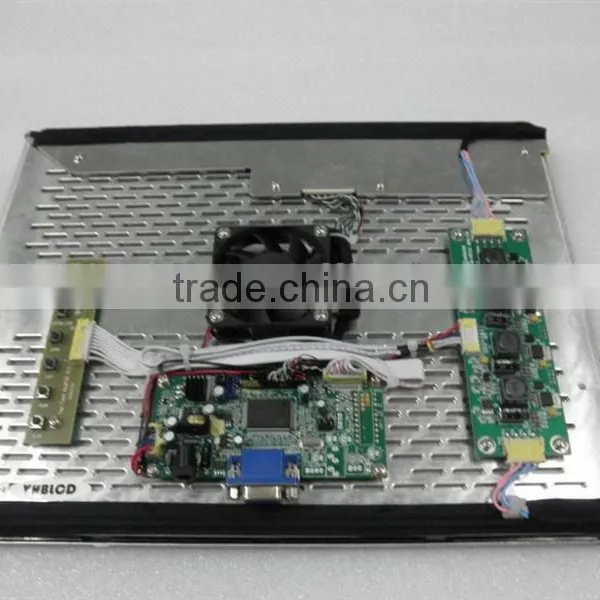

15"open-high-brightness LCD module/ touch screen panel
Panel type	a-Si active matrix TFT-LCD
Active area	304.128 x 228.096 mm
Resolution	1024 x 768 RGB VGA to XGA resolution
Pixel pitch	0.297(H) x 0.297(V) mm
Color	8 bits 16.7M selectable
Backlkght type	LED Edge type
Brightness	1500cd/m2, LED Backlight Enhanced
Contrast ratio	700:1, Dynamic contrast ratio up to 10000:1
Dimming	100:1 auto dimming by Light Sensor or manually by + / - button or POT
Viewing angle	80/80/80/80
Response time	8mstr, 17mstf
Interface	VGA and composite video
Lifetime	>45000 hrs
Operating voltage	12VDC,3A
Power consumption	23Watt at 1500 Nits bright level
Standby mode	1.2 Watt or less
Accessories	VGA cable and AV cable (option)
Power supply	Power Adapter with Cord (option)
Enclosure	Aluminum milled fully sealed IP65 (option)
Dimension	326.5(H) x 253.5(V) x 14.5(D) mm for panel
Weigh	1.1 Kg approx.
Operating	12VDC Input Voltage
Shock	50G half sine wave 1 time for X, Y, Z direction
Vibration	1.5G 10-500HZ X,Y,Z directions 1.5mm,
ENVIRONMENTAL (option)	Operating Temperature -20-65 deg C, Wide temp.-35-65C with internal heater,
	Operating Humidity 10%-85%
	Storage Temperature -40-75°C
	Storage Humidity 5%-90%
Warranty	One Year
