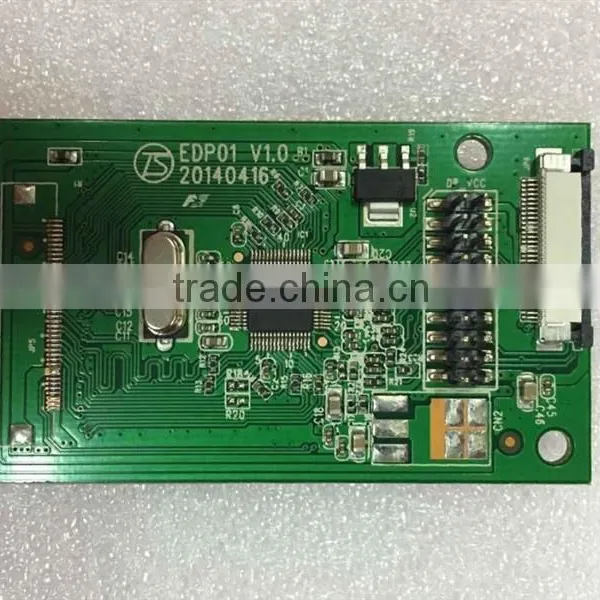

Help CenterAD Board,driver Board, Controller Board for Edp Interface LCD Panel,1920*1080/1366*768
Related Products
-
AD Board for Edp Interface LCD PanelUS$ 1 - 2MOQ: 1 Piece -
CVBS Analog LCD Control Board for VideoUS$ 1 - 2MOQ: 1 Piece
-
HDMI+USB+AV+VGA Input LCD Controller Board/Driving BoardUS$ 1 - 2MOQ: 1 Piece
-
8"TTL LCD Player With LCD Driving Board VGA+AVUS$ 1 - 2MOQ: 1 Piece
-
A.D Board With VGA+DVI-D+AV Out+CVBS+USB Port Support TTL/LVDS TFT LCD PanelUS$ 1 - 2MOQ: 1 Piece
1.FFC EDP interface
NO. |
interface definition |
Function description |
1 |
NC |
NC Connection |
2 |
GND |
High Speed Ground |
3 |
Lane1_N |
Complement Signal-Lane 1 |
4 |
Lane1_P |
True Signal-Main Lane 1 |
5 |
GND |
True Speed Ground |
6 |
Lane0_N |
Complement Signal-Lane 0 |
7 |
Lane0_P |
True Sinal-Main Lane 0 |
8 |
GND |
High Speed Ground |
9 |
AUX_P |
True Signal-Aldxllary Channel |
10 |
AUX_N |
Complement Signal-Aldxllary Channel |
11 |
GND |
High Speed Ground |
12 |
VCC |
LCD Logic And Driver Power |
13 |
VCC |
LCD Logic And Driver Power |
14 |
NC |
NC Connection |
15 |
GND |
LCM Ground |
16 |
GND |
LCM Ground |
17 |
HPD |
HDP Signal Pin |
18 |
GND |
LCM Ground |
19 |
GND |
LCM Ground |
20 |
GND |
LCM Ground |
21 |
GND |
LCM Ground |
22 |
LED_EN |
LED BlackLight On/Off |
23 |
PWM |
System PWM Signal Input For Dimming |
24 |
NC |
No Connection |
25 |
NC |
No Connection |
26 |
VLED |
LED BackLight Power |
27 |
VLED |
LED BackLight Power |
28 |
VLED |
LED BackLight Power |
29 |
VLED |
LED BackLight Power |
30 |
NC |
No Connection |
2.LVDS flooding screen interface
NO. |
interface definition |
Function description |
1 |
VSEL |
Flooding screen voltage |
2 |
VSEL |
Flooding screen voltage |
3 |
VSEL |
Flooding screen voltage |
4 |
GND |
Ground |
5 |
GND |
Ground |
6 |
GND |
Ground |
7 |
RX00- |
LVDS single 0- signal |
8 |
RX00+ |
LVDS single 0+ signal |
9 |
RX01- |
LVDS single 1- signal |
10 |
RX01+ |
LVDS single 1+ signal |
11 |
RX02- |
LVDS single 2- signal |
12 |
RX02+ |
LVDS single 2+ signal |
13 |
GND |
Ground |
14 |
GND |
Ground |
15 |
RX0C- |
LVDS single clock- signal |
16 |
RXOC+ |
LVDS single clock+ signal |
17 |
RX03- |
LVDS single 3- signal |
18 |
RX03+ |
LVDS single 3+ signal |
19 |
RXE0- |
LVDS double 0- signal |
20 |
RXE0+ |
LVDS double 0+ signal |
21 |
RXE1- |
LVDS double 1- signal |
22 |
RXE1+ |
LVDS double 1+ signal |
23 |
RXE2- |
LVDS double 2- signal |
24 |
RXE2+ |
LVDS double 2+ signal |
25 |
GND |
Ground |
26 |
GND |
Ground |
27 |
RXEC- |
LVDS double clock- signal |
28 |
RXEC+ |
LVDS double clock+ signal |
29 |
RXE3- |
LVDS double 3- signal |
30 |
RXE3+ |
LVDS double 3+ signal |

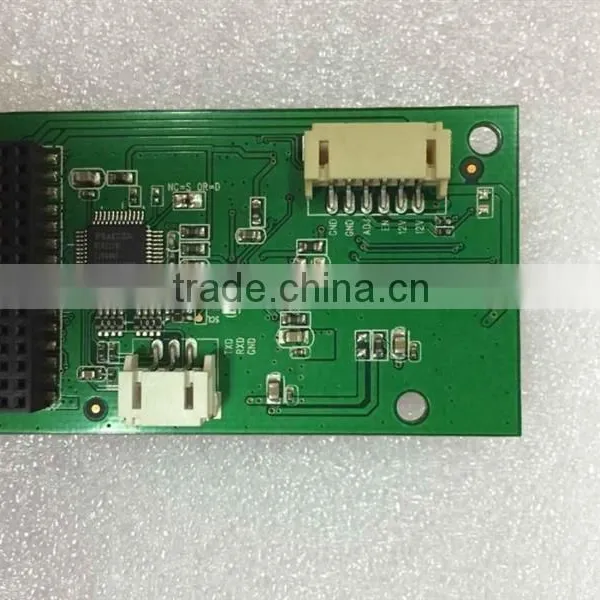

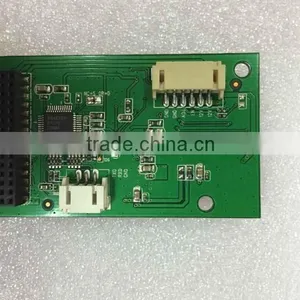

3.Inverter interface
NO. |
interface definition |
Function description |
1 |
GND |
Ground |
2 |
GND |
Ground |
3 |
ADJ |
Backlight control |
4 |
EN |
Backlight switch |
5 |
12V |
12V voltage |
6 |
12V |
12V voltage |
