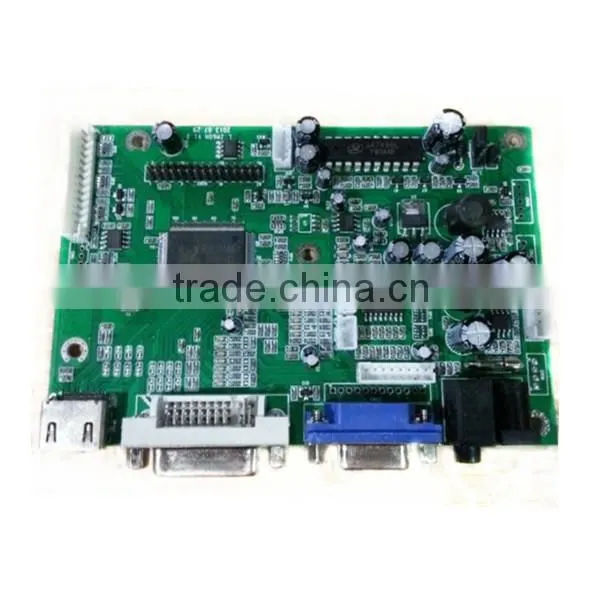

| TFT LCD panels used liquid crystal display driver board, support for DVI and VGA and HDMI input | ||
Product Overview | ND-L.ZM60H is connected with TFT LCD panels used in liquid crystal display driver board, this MONITOR program can support up to 1920x1200 resolution, color support to 24bit, line frequency of 15 to 250KHz, 45 to 80Hz field frequency range signal can be synchronized automatically detect synchronization mode requires the use of horizontal and vertical sync signals separated. Which program supports both DCR (dynamic Contrast Ratio), external audio output, you can adjust the volume with the key way NC. | |
| Product Features | ||
| Model | ND-L.ZM60H | |
Chip solution | Single Chip RTD2660H | |
Screen Panel | Flooding screen interface | Single / dual-port LVDS interface |
Maximum resolution | 1920x1200 | |
Power supply | Operating Voltage | 12V or 12V +5 V |
Flooding screen voltage | 3.3V or 5V or 12V | |
Power Mode | Support low-power mode, standby mode | |
Standby Power | <1W | |
OSD language | Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Japanese, Korean, Russian, Polish, Thai, Netherlands Language | |
Key Functions | POWER, MENU, +/-, AUTO/EXIT | |
Audio Output | 2x2W(8Ω) | |
| The main interface definition description | ||
| Key board with LED connector | ||
Serial | Interface Definition | Description |
1 | KO | Key Interface K0 |
2 | LED R | Red light |
3 | LED G | Green lights |
4 | GND | Ground |
5 | K1 | Key Interface K1 |
6 | K2 | Key Interface K2 |
7 | K3 | Key Interface K3 |
8 | K4 | Key Interface K4 |
9 | K5 | Key Interface K5 |
10 | K6 | Key Interface K6 |
| Speaker Interface | ||
Serial | Interface Definition | Description |
1 | LO | Left channel output |
2 | GND | Ground |
3 | GND | |
4 | RO | Right channel output |
| Inverter Interface | ||
Serial | Interface Definition | Description |
1 | GND | Ground |
2 | GND | |
3 | ADJ | Backlight Control |
4 | EN | Backlit switches |
5 | 12V | 12V Voltage |
6 | 12V | |
| The audio signal input terminal | ||
Serial | Interface Definition | Description |
1 | 12V | 12V Voltage |
2 | 12V | |
3 | EN | Backlit switches |
4 | ADJ | Backlight Control |
5 | GDN | Ground |
6 | GDN | |
