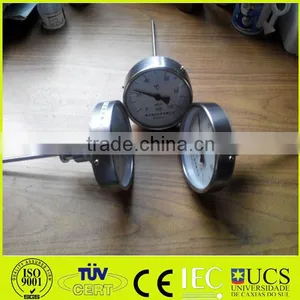

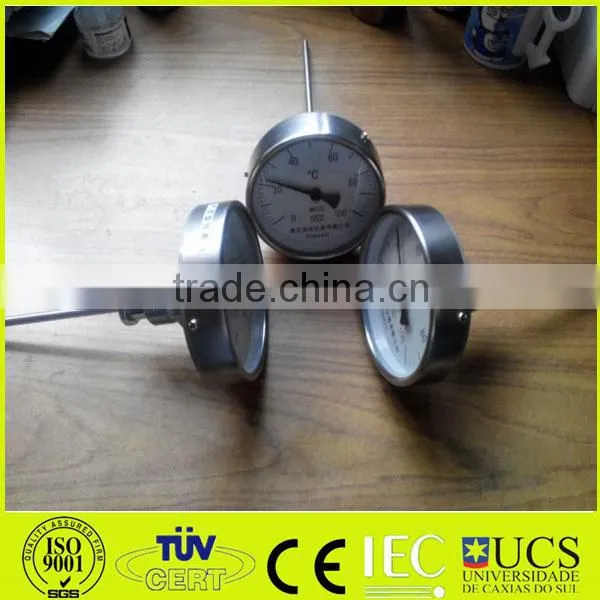

WSS-401 Axial Bimetallic Thermometer
WSS series industrial bimetallic thermometers are one kind of field inspection instruments that can be measured the temperature of middle and low range. It can be directly measured the temperature of gas and liquid. Widely used in petroleum, chemistry, shipping, machinery, medicine, electric power etc., it’s a substituted products of the glass thermometers. Industrial bimetallic thermometers are in compliance with national specialized standard ZBN11008-88.
Working principles
Bimetallic thermometers-sensing element changes its shape with the temperature. It drives the needle to rotate and measure the temperature of measured medium.
Applications
Chemical process, petroleum and food industry
Facility management
For corrosive temperature media.
Feature
1. it can derectly display the temperature, more Intuitive and convenient.
2. firm in structure, Vibration resistance and not easy to be damaged.
3. Different Specifications, various installation ways and multiple material of protection tube for you to choose.
Main technical data
Tag: bimetal thermometer | bimetallic thermometer | |
Ref No. |
WSS |
Thermal element materials |
Bimetal slice |
Nominal diameter of crust |
3: 60 4: 100 5: 150 |
Ways of Mounting & Fixing |
0: without fixing device 1: movable outer thread 2: movable inner thread 3: fixed thread 4: fixed flange 5: compression thread 6: compression flange |
Protection types |
/: Normal W: protection F: cauterization proof |
Location characteristic |
0: axial (straight) 1: radial (angle) 2: universal (angle adjustable) |
Installation ways |
1: upright 2: bending 3: flange |
Measuring range |
-80~600 degree Celsius |
Shipping |
By air, sea, express |
Sample time |
2~7 days |
Manufacture time |
7~30 days depending on order quantity |
Installation
Assure accurate measurement, the immersion length of bimetallic thermometers must be more than the length of sensing element (usually immersion length is more than 75mm).
Before use, please check the dates of bimetallic thermometers if they exceed the assurance time (18months). If they are overdue, need to retest.
All kinds of bimetallic thermometers are not suitable to measure the temperature of open container. Bimetallic thermometers with contact point are not suitable for using in the strong vibration place.
In the installation procedure, please force on hexagonal part to screw, don’t turn the indicator head.
If measuring quick flow or strong corrosives medium, please use protective tube.
Transportation and storage:
The protective tube of bimetallic thermometers should avoid vibration and winding in the transportation and storage procedure.
Product
Our Usual Payment Terms
T/T, Western Union are available.
If you need to pay through other way, please inform us.
Packing: Export Carton box and wooden case
Delivery: 7-20 days after payment
1.Professional help when inquiry
2.Technical data and design can offer
3.Nice after-service
4.Factory direct sale
1.Can we get a sample for test?
Yes, but not free sample.
2.I have specified design, can you do that?
Yes, we do many customized cases. And you just need to offer your detailed specifications or send the samples to us.
3.How to pay?
TT will cost bank charge: USD 20.00
Western union no bank charge
4.Other questions, please contact Zoe directly.
