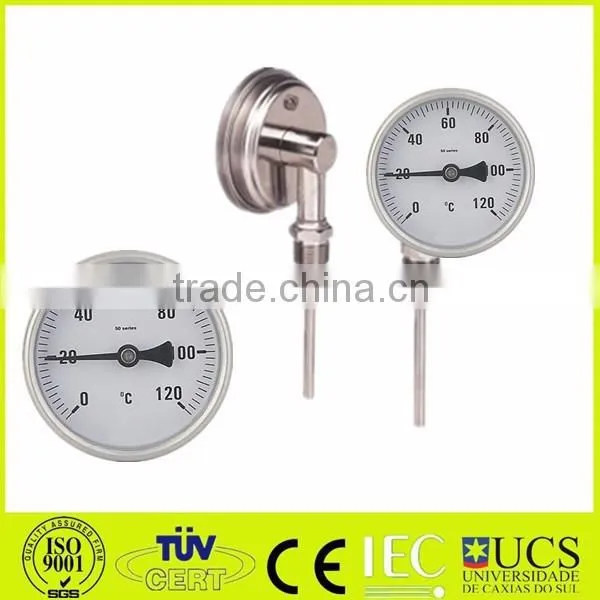

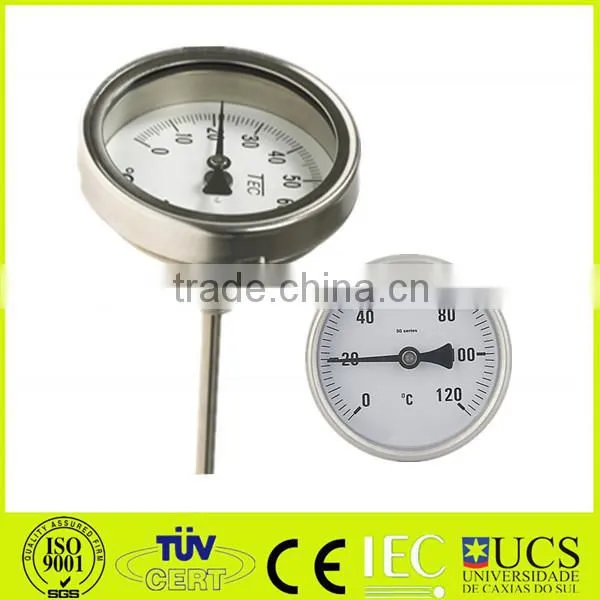

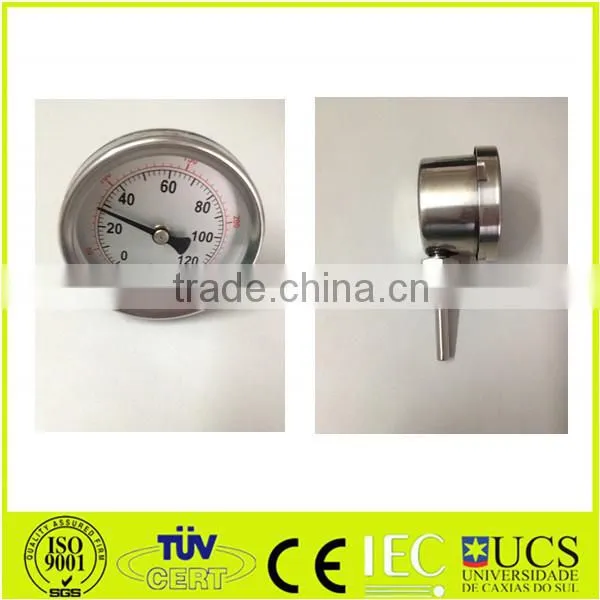

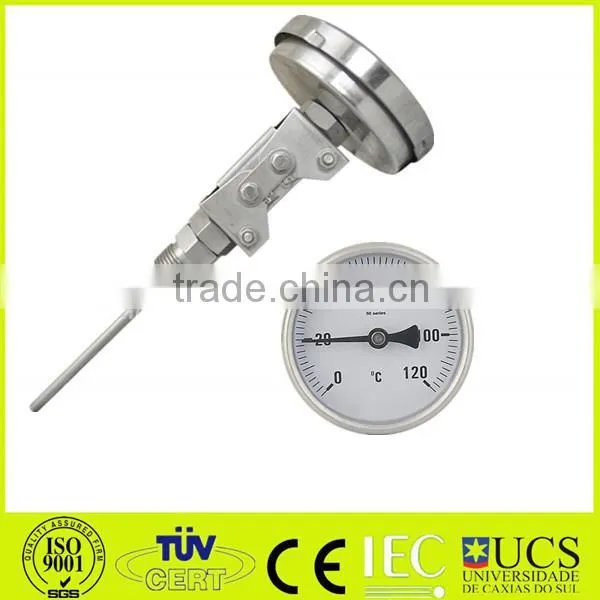

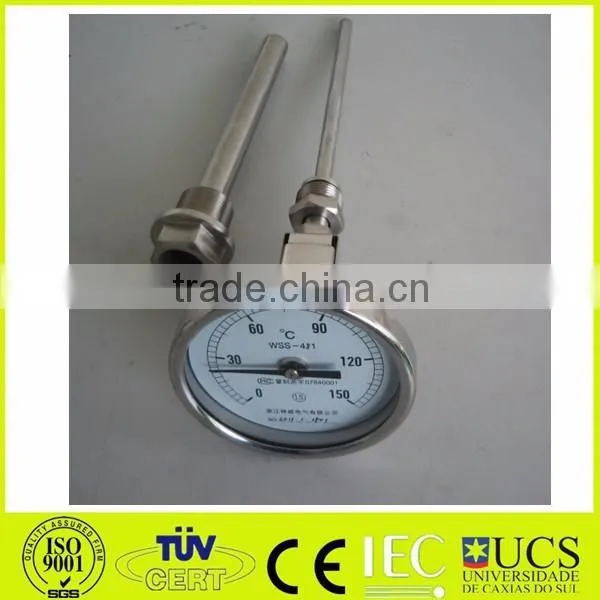

Stainless Steel Capillary Bimetal Thermometer
Detail Specification:
1. capillary Bimetal Thermometer
2.Dial Size: 100mm
3.Temperature:0-120C
4.Thread:1/2NPT
5.Stem Length:200mm
6.Stem Diameter:10.mm
7.material:ss304
other special details are customized
More Specification of Capillary Temperature Gauge
Dial: |
2",2.5",3",4",5", and 6", aluminum |
Case: |
AISI 304 stainless steel |
Lens: |
Glass standard, Shatterproof Glass Len Is Available |
Bezel: |
AISI 304 stainless steel, hermetically sealed or detachable |
Pointer: |
Aluminum, painted black |
Movement: |
Bi-metallic coil |
Stem: |
AISI 304 stainless steel standard |
Connection: |
1/4"NPT standard on 2" dial, fixed centre back and bottom 1/2"NPT standard on 3", 4", 5" and 6" available, fixed centre back, bottom and adjustable angle. |
Accuracy: |
+/-1.5% full scale standard; +/-1% full Scale Available |
Other: |
With recalibrator-reset screw or without |
Range: |
From -80 C/0 C And 0 C/550 C |
If you need more information about our products please feel free to contact me
