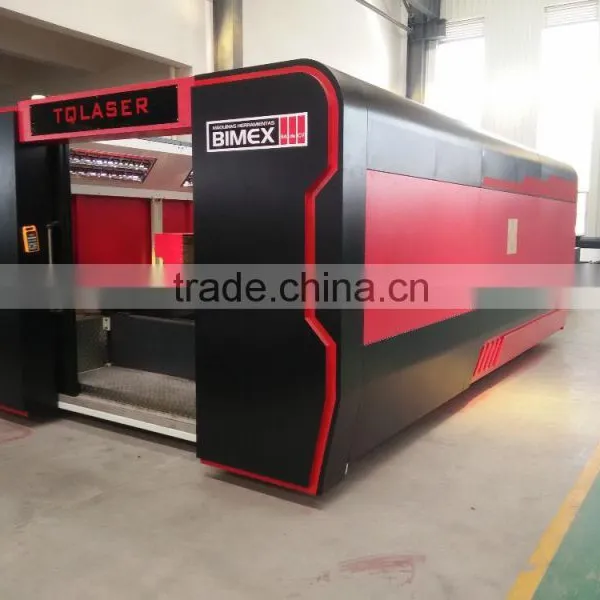

500W Fiber Laser Cutting Machine for 5mm Metal Cutting
What is the detail of our product?
1. Fiber laser cutting machine used for IPG Laser Source
2. Germany imported Precitec Cutting Head (fiber special)
Non-contact automatic tracking system, able to automatically adjust most efficiency focal length that guaranty the best cutting quality, prevent material scrapping caused by changing of focal length when metal is not flat.
Due to non-contact sensing device When controlled by system, able to achieve stable Z axis floating function, eliminate negative effects caused by non-flat material, leading CNC fiber laser cutting machine to higher cutting quality.

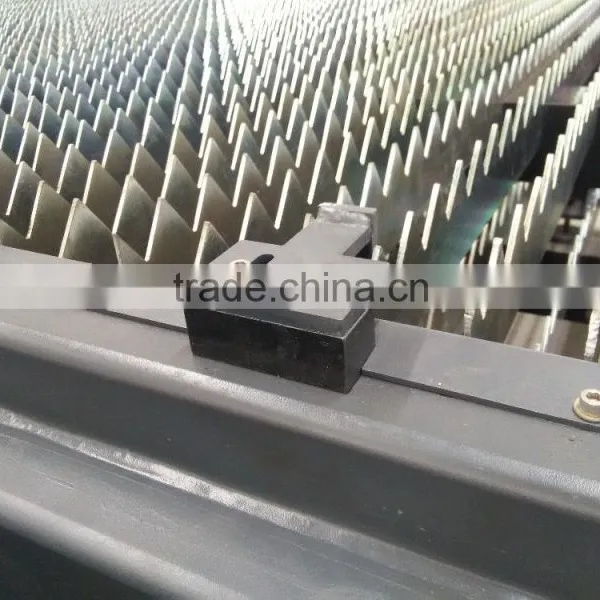

3. Working Table
45mm Steel side board 25mm metal sheet strength weld Strict test keep precision within 5um 3015 running speed reach to 120M/min Weight over 11.8 ton.
4.Laser cutting equipment
Equipped with heavy loading require gantry axis 2 motor synchronous driving the same axis, ensure the high dynamic performance 120M/min, two driver, synchronous high speed move.
5.High power fiber laser dual driving system
Laser adopt imported gear rack driving, bilateral linear guide; And the original import servo motor drive system, to ensure its high-speed motion state of the machine precision. Stable fast running Fast speed running, working table still stay steady, less shaking and better cutting quality.
exchanging working table reduction gear

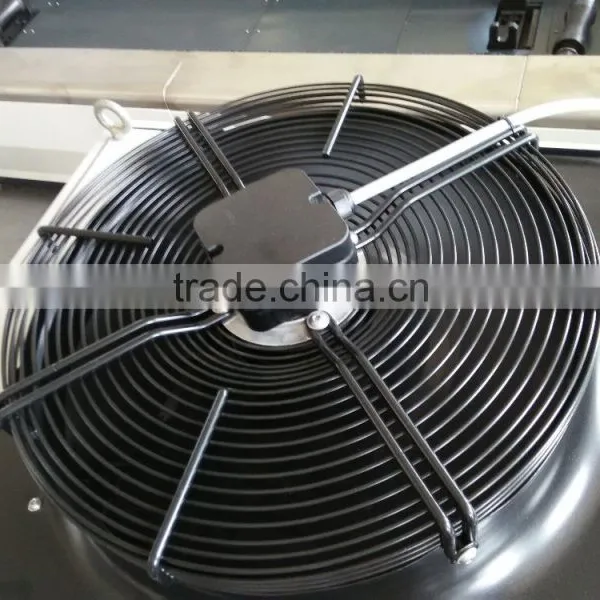

6. Advanced Exhaust System
Instead of strong overall dust pumping system, we have 6 dust extracting door While cutting, the nearest dust sxhaust door to the cutting head will start work ---Save energy ---Better pumping effect.
dust exhaust door
7. Imported Germany software & hardware
Powerful functions High compatibility Good Afterservice (If with PA software, panasonic or YASKAWA servo motor would cause bad compatibility and poor afterservice)
| Laser power | 500w-3000W |
| Laser type | import fiber laser |
| Laser wave | 1070nm |
| Processing scale | 3000mm×1500mm |
| X axis stroke | 3000mm |
| Y axis stroke | 1500mm |
| Z axis stroke | 120mm |
| Location precision | ±0.03mm/m |
| Re-location precision | ±0.02mm |
| Worktable max load | 1600kg |
| Power demand | 380V/50Hz |
| Cooling way | water cooling |
| Max speed | 60m/min |
| Cutting area | 0.2-20mm |
| Weight | 11T |
| Outline size | 9320*3280*2130 |
What materials can cut and its application?
Why Choose Us
What is the story of our product?
A young boy graduated from the university and he want to apply for a good job.When he did several jobs.He realized that he needs to start a business rather than work for others.With no
support of large quantity funds but three schoolmates,they researched the first laser cutting machine and get the first pot of god.So our product conveys the youngster resolution and
struggle ,aggressive and aspiration ,hope and dream.
Warranty and service
One year warranty for machine. English technical to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
welcome to visit and learn more about our machines.
Free accessories :Software ,manual, book, cd videos, PCI control
1.Pre-sales service
A. Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.
B. Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. Tianqi Laser will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period.Training Time: 10working days.
Engineers service machinery overseas
Delivery and transport
We can send machine to your port or door address by sea or airplane.
Please kindly tell us your near port or address with postcode.
We have reliable shipping agent to insure the safe,convenient and timely delivery.
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
