Specifications
Pipe-Sheet SS YAG CNC CutterCan cut various graphics on the pipes and sheets
Fast cutting speed
Cost-effectives

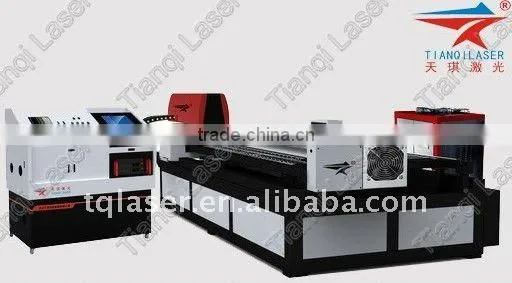

Pipe-Sheet SS YAG CNC Cutter
1. High precision: an precise cutting for various precision part, arts and crafts.
2. Fast speed: 100 times higher than linear cutting
3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
4. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
5. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
6. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
7. Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for most metal manufacturing and processing industry
8. Steel plate cutting thickness:0.1mm-8mm
Compared with NC Punch, YAG laser cutting machine have many advantages
(1) Any complicated structure which can be drawn on the computer also can be manufactured by CNC YAG laser cutting machine
(2) If the product image has been drawn on the computer, the product can be manufactured immediately without opening mould technology. It can be used to develop new products rapidly and reduce cost considerably
(3) Both plan cutting and surface trimming can be finished by automatic tracing system of YAG laser cutting machine
(4) Laser cutting machine can accomplish the complicated process which is hard to achieve by NC punch
(5) The machine can make high grade production with smooth surface, which is hard to obtained by NC punch
(6) Round pipe & Square pipe cutting can be finished by our YAG laser cutting machine, which can not be processed by CNC punching machine
(7) Molding body (less than 0.5 meters thick) which need the slot-hole processing can be easily achieved by YAG laser cutting machine, which can not be finished by CNC punching machine.
Technical Parameter:
Model: |
TQL-LCY620-GC3015 |
Processing scale(L×W): |
3000mm×1500mm |
Max. output power: |
620W |
Laser wavelength: |
1064nm |
Pulse frequency: |
1--300HZ |
Min. linewidth: |
0.15mm |
Sheet metal cutting thickness: |
0.2mm-8mm |
Diameter of the pipes: |
20mm-320mm |
Max. length of the pipes |
2500mm |
Pipe cutting thickness: |
0.2mm-3mm |
Electrical source: |
380V/50HZ/100A |
X,Y,Z axis geometric positioning accuracy: |
≤±0.08mm/1000mm |
X,Y,Z axis re-orientation accuracy: |
≤±0.04mm |
Cooling mode: |
7P industry temperature display water cooling |
Max. cutting speed: |
35mm/s |
Application

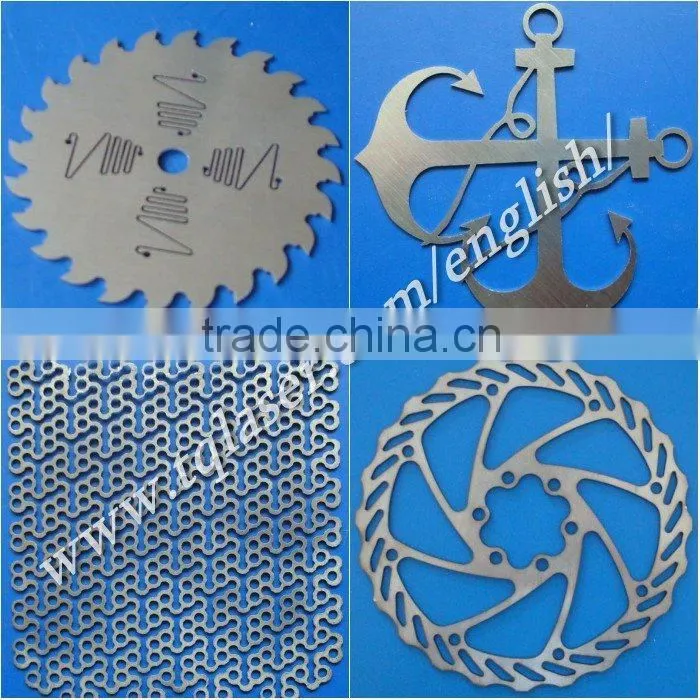

YAG laser cutting machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe.
Research and Development
Through continuous research and development, our own research laboratory device has been developed into laser equipment which can work continuously and stably for 24-hour a day. Tianqi laser has developed a series of high-end laser products, and owns several patents.
Service
Tianqi Laser set up a marketing management center, 16 offices across our domestic country and 3 branches worldwide, resident technical engineer provide comprehensive pre-sale, after sales support and service. We provide one year warranty and lifetime maintenance. Also we provide online and telephone service 24 hours a day, when it is necessary, we will send technician to the customer side to solve the problem.
