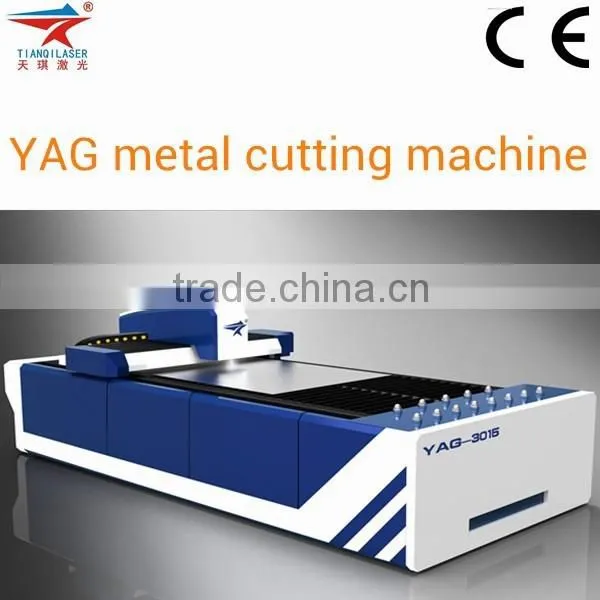

High Performance 650W Laser Cutting For Metal
- 100 Set / Sets per Month
- Wuhan
- T/T
Product Details
Condition: | New | Laser Type: | YAG | Applicable Material: | Metal |
Cutting Thickness: | 8mm steel plate | Cutting Area: | 1500*3000mm | Cutting Speed: | based on the cutting thickness |
CNC or Not: | Yes | Cooling Mode: | Water Cooling | Control Software: | Cypcut CNC control |
Graphic Format Supported: | AI, BMP, DST, DWG, DXF, DXP, LAS, PLT | Place of Origin: | Hubei, China | Brand Name: | TIANQI LASER |
Model Number: | TQL-LCY620-3015 | Certification: | CE, SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Metal cutting machine Application
Application Industries: YAG laser cutting machine are widely used in manufacture Billboard, Advertising, Signs, Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing, Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts, metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts, Nameplates, etc.
Metal Cutting Machine Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium sheet and pipe
Research and Development
Through continuous research and development, our own research laboratory device has been developed into laser equipment which can work continuously and stably for 24-hour a day. Tianqi laser has developed a series of high-end laser products, and owns several patents.
Technical Parameters
Laser type | YAG lamp pump solid state laser generator |
Laser power | 620w 1000w |
Cutting area | 1500mm x 4100mm, 1500mm x 3000mm, 1300mm x 2500mm |
Working table | Saw tooth working table |
Motion system | Digital offline control system; IMPORT servo motor; ABBA high precision ball screw; linear guide transmitting system |
Repeating position accuracy | ±0.04mm |
Max. cutting thickness (Air) | Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness | Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper (do not suggest large batches of cutting these 3 high reflective materials) |
Cooling system | External constant-temperature water chiller system |
Auxiliary gas | Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 : stainless steel when need shiny cutting edge |
Workshop environment | Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
Technical parameter for Brass sheet laser cutting machine:
Model: | TQL-LCY620-4115 | TQL-LCY620-3015 | TQL-LCY620-2513 |
Processing scale(length*width): | 4100mm*1500mm | 3000mm*1500mm | 2500mm*1300mm |
Cutting thickness: | 0.2mm-8mm | 0.2mm-8mm | 0.2mm-8mm |
Max. output power: | 620W | 620W | 620W |
Laser wavelength: | 1064nm | 1064nm | 1064nm |
Pulse frequency: | 1--300HZ | 1--300HZ | 1--300HZ |
Min. line width: | 0.15-0.3mm | 0.15-0.3mm | 0.15-0.3mm |
Electrical source: | 380V/50/60HZ/100A | 380V/50/60HZ/100A | 380V/50/60HZ/100A |
X,Y,Z axis geometric positioning accuracy: | ±0.08mm/1000mm | ±0.08mm/1000mm | ≤±0.08mm/1000mm |
X,Y,Z axis re-orientation accuracy: | ±0.04mm | ±0.04mm | ≤±0.04mm |
Machine weight: | 4500kg | 4300kg | 4000kg |
Cooling mode: | 7P water-cooling | 7P water-cooling | 7P water-cooling |
Max. cutting speed | 8m/min | 8m/min | 8m/min |
Warranty and service
One year warranty for machine. English technical to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
welcome to visit and learn more about our machines.
Free accessories :Software ,manual, book, cd videos, PCI control
1.Pre-sales service:
A.Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.
B.Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. Tianqi Laser will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period.Training Time: 10working days.
Engineers service machinery overseas
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
