Laser metal Cutting Machine Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum heet, gold, silver, titanium
1.Convey Belt Automatically collect cutting parts
2. Drive system: Lead screw and guide line with selflubrication ( In cleaning working condition, oil and pumps service time reach to half years )
3. 7P Precision Temperature-Control Display Water Chiller
1. High and low voltage protection
2. Laser overheating protection
3. Current overload protection
4. (Three-phase power) Lack of phase and phase sequence protection
5. Leak-proof electrical grounding protection
4. Industrial air condition---Tianqi is nominated supplier for Mc Quay and Japan Daikin Industry 1) Dust proof 2) Keep consistent temperature, directly expand service time of equipment---especially laser power and circuit board lifetime.
5.
Laser part Full reflection lens, half reflection lens, focus lens, expander lens with spherical surface lens, easy focusing. Xenon lamp:good light strength and sealing Focus lens with Quartz grating-telescope---easy adjusting light
Laser type |
YAG lamp pump solid state laser generator |
Laser power |
500w 620w 750w 1000w |
Cutting area |
1500mm x 4100mm, 1500mm x 3000mm, 1300mm x 2500mm |
Working table |
Saw tooth working table |
Motion system |
Digital offline control system; IMPORT servo motor; ABBA high precision ball screw; linear guide transmitting system |
Repeating position accuracy |
±0.04mm |
Max. cutting thickness (Air) |
Ferrous metal: 10mm carbon steel, 8mm stainless steel Nonferrous metal: 4mm aluminum, 3mm brass & copper) |
Suggested cutting thickness |
Ferrous metal: 0.5-6mm carbon steel, 0.5-6mm stainless steel Nonferrous metal: 0.5-4mm aluminum, 0.5-3mm brass & copper |
Cooling system |
External constant-temperature water chiller system |
Auxiliary gas |
Dry filter compressed air: carbon steel, stainless steel, aluminum, brass and copper N2 :stainless steel when need shiny cutting edge |
Workshop environment |
Temperature 0-40 Centigrade, Humidity 45-85%, good ventilation, no corrosive gas, etc |
Corporate Culture
Advertising Words Cutting

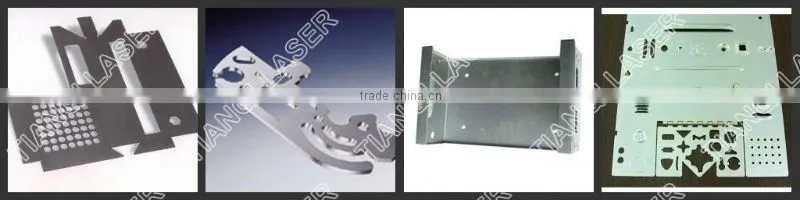

Metal Sheet Cutting
Art Crafts Cutting
Pipe Cutting
Delivery and transport
We can send machine to your port or door address by sea or airplane.
Please kindly tell us your near port or address with postcode.
We have reliable shipping agent to insure the safe,convenient and timely delivery.
Warranty and service
One year warranty for machine. English technical online and offline with to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
welcome to visit and learn more about our machines.
Free accessories
Software ,manual, book, cd videos, PCI control
Engineers service machinery overseas

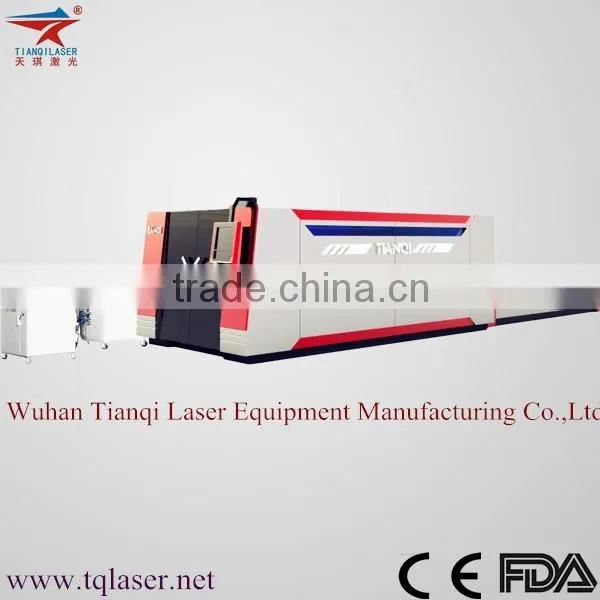

Wuhan TianQi Laser Equipment Manufacturing Co.,Ltd
TIANQI Laser offers different type (YAG, Fiber Co2) of laser machines and provides a comprehensive range of
laser cutting, laser engraving, laser marking and laser welding systems. Whether you need a cost-effective machine or a more sophisticated laser solution, from the economical models to the large format
automated laser processing systems, even customized laser systems, TIANQI Laser has the laser solutions
that satisfy your requirements.
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX. dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
