High Power Fiber Laser Cutting Machine Adopted With Excellent Laser Beam

High Power Fiber Laser Cutting Machine Adopted With Excellent Laser Beam thumbnail-1
High Power Fiber Laser Cutting Machine Adopted With Excellent Laser Beam thumbnail-2
High Power Fiber Laser Cutting Machine Adopted With Excellent Laser Beam photo-1
High Power Fiber Laser Cutting Machine Adopted With Excellent Laser Beam photo-2
US$ 3,000 - 100,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Fiber Laser
Applicable Material:
Metal
Contact Supplier Request Quote Chat Now
Wuhan Tianqi Laser Equipment Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Laser Type Fiber Laser
Applicable Material Metal
Cutting Speed 60m/mm
CNC or Not Yes
Cooling Mode Water Cooling
Place of Origin Hubei, China
Brand Name TIANQI LASER
Model Number TQL-LCY620-2513
Certification CE, ISO, SGS
After-sales Service Provided Engineers available to service machinery overseas



Advantages
Cutting head Hi precision Precitec cutting head

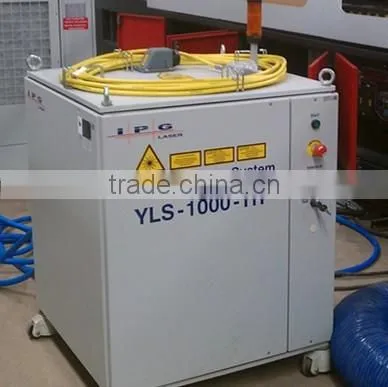

Laser device USA IPG laser
Control software German Beckhoff
Cooling ways 7P water-cooling system
Working table Cast-solid ,  Automaitically  exchangeable
Air Compressor Low noise, Long working life, power saving
Transformer Stable and reliable , energy conservation





YAG Pipe&Tube cutter

1.

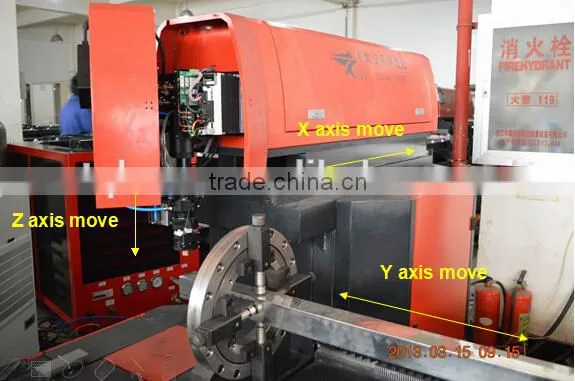

5 Axis machine X, Y, Z axis, rotary, 4 claw/3 claw suppoter move together, can beautifully cut 1. Round tube, 2. Square tube, 3. Rectangle tube, 4. Oval tube

High power fiber laser cutting machine adopted with excellent laser beam

2.

Full reflection lens, half reflection lens, focus lens, expander lens with spherical surface lens, easy focusing. Xenon lamp:good light strength and sealing Focus lens with Quartz grating-telescope---easy adjusting light

High power fiber laser cutting machine adopted with excellent laser beam

High power fiber laser cutting machine adopted with excellent laser beam

3.Drive system: Stable gear rack constraction and guide line

High power fiber laser cutting machine adopted with excellent laser beam

4. 7P Precision Temperature-Control Display Water Chiller

1. High and low voltage protection

2. Laser overheating protection

3. Current overload protection

4. (Three-phase power) Lack of phase and phase sequence protection

5. Leak-proof electrical grounding protection

High power fiber laser cutting machine adopted with excellent laser beamHigh power fiber laser cutting machine adopted with excellent laser beam

5.Industrial air condition---Tianqi is nominated supplier for Mc Quay and Japan Daikin Industry 1) Dust proof 2) Keep consistent temperature, directly expand service time of equipment---especially laser power and circuit board lifetime.

High power fiber laser cutting machine adopted with excellent laser beam



laser cutting machine



Application:

YAG laser cutting machine has been widely used in manufacture billboard, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artware, etc.



Applicable materials:

stainless steel,carbon steel,alloy steel,spring steel,copper sheet,aluminum heet,gold,silver,titanium sheet and pipe.



Advantages:

1. High precision: it is precise enough to cut for various accessories.

2. Fast speed: 100 times higher than linear cutting.

3. Small heat affected zone, good dimension stability, flat and nice laser slit.

4. High performance/price ratio: the price is only 1/3 of the similar CO2 laser cutting machine and 2/5 of the CNC Punch with equivalent function.

5. Low use cost: only $3 per hour. It is 1/8-1/10 of the similar CO2 laser cutting machine ($26 per hour)

6.Low follow-up maintenance cost: only 1/10~1/15 of the similar CO2 laser cutting machine and 1/3~1/4 of the CNC Punch with equivalent function.

7. Steady performance: YAG laser cutting machine has the most mature and stable technology in laser area, it can promise long term continuous produce.



Technical parameter:

Model:

TQL-LCY620-2513

Processing scale(length*width):

2500mm*1300mm

Cutting thickness

0.15mm-8mm

Max. output power

620W

Laser wavelength:

1064nm

Pulse frequency:

1--300HZ

Min. linewidth:

0.15mm

Electrical source:

380V/50HZ/100A

X,Y,Z axis geometric positioning accuracy:

≤±0.06mm/1000mm

X,Y,Z axis re-orientation accuracy:

≤±0.04mm

Machanical weight:

3780kg

Cooling mode:

7P water-cooling

Max. cutting speed:

35mm/s



SERVICE:

PRE-SALES SERVICE

1,Free sample making

2,Progressing Solution Design

AFTER-SALES SERVICE

1,Machine-installation & debugging

2,Machine-training service

Please let me know such information:

1, what kind of material do you want to process, cutting?

2, what is the dimension of material (length, width and thickness)?

3, are you end-user or reseller in your country, my dear friend?

Based on the above analysis, we will recommend the most suitable machine and best solution for you as soon as possible.



Cutting process:

High power fiber laser cutting machine adopted with excellent laser beam



High power fiber laser cutting machine adopted with excellent laser beam

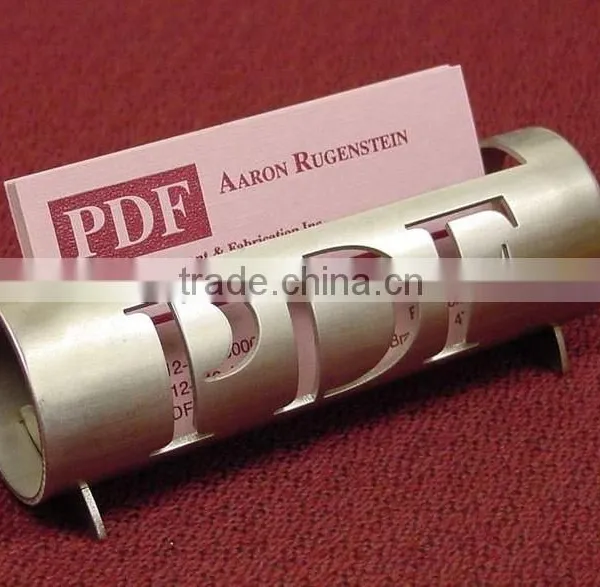

cutting sample:

High power fiber laser cutting machine adopted with excellent laser beam High power fiber laser cutting machine adopted with excellent laser beam



High power fiber laser cutting machine adopted with excellent laser beam     High power fiber laser cutting machine adopted with excellent laser beam
