Switch on Thermostat TA-08

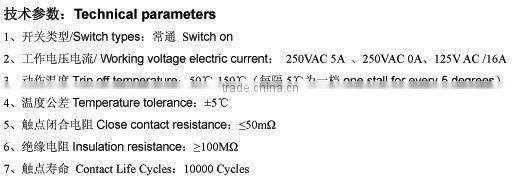

Specifications

1.Switch on thermostat TA-08
2.Current rating:10-15A
3.Voltage rating:125V 250V
4.Temperature:50-150C
5.Competitive price

  Switch on thermostat TA-08 Specifications

1 thermostat

2. Switch on thermostat TA-08

3.approvals: UL VDE CQC ROHS
4.Rated current:10-15A

5.Rated voltage: 125V/250V



  Switch on thermostat TA-08 structural characteristics

1.Changes in temperature can make a quick response,and automatic restoration of function.

2.Bimetal not currents through,avoid the impact from effect of heat, temperature change small,long life.

3.Silver Contact with green power,consistent with the regulations of export.

4.Using all the green materials imported by SGS testing.



Use note:
1.This product applies to Hair dryers,heaters,wind machines, rising damp machines.

2.Thermal protection device in the course of installation and use, and never allow touching of shrapenl and temperature part, or it will lead to inaccurate temperature protection devices, and can not have access to undesirable work.

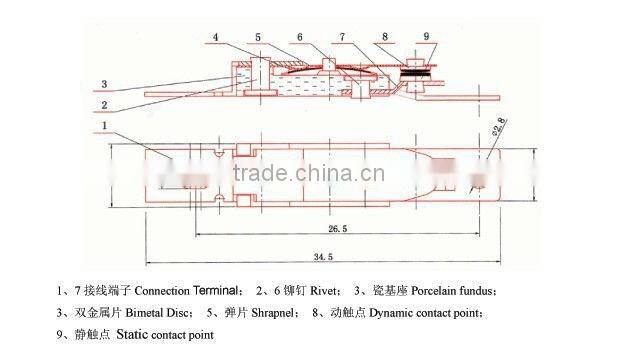

   Switch on thermostat TA-08 dimension figure

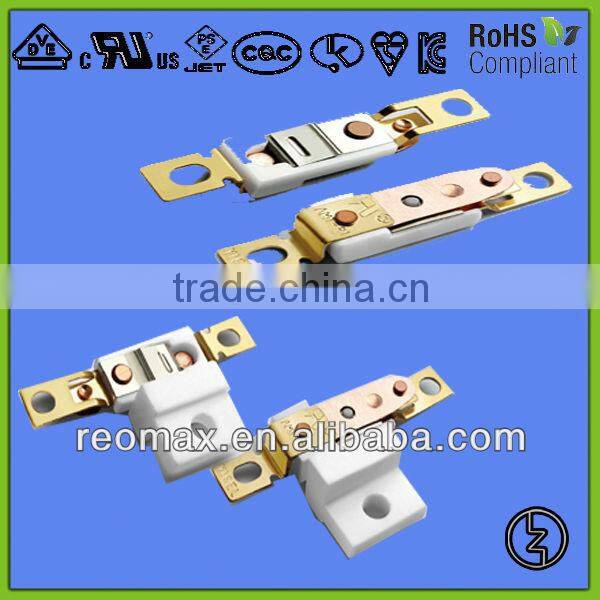

   Switch on thermostat TA-08 picture
