1.MF-LSMF PPTC fuse
2.SMD fuse
3.Vmax:6V 24V 33V
4.Imax:20A 40A
5.Dimension:2920

LSMF fuse Features

  • High power ratings
  • Low profile
  • Compatible with Pb and Pb-free solder reflow profiles
  • RoHS compliant and halogen free
  • Surface mount packaging for automated assembly
  • Agency recognized
  • Standard 7555 mm (2920 mils) footprint

MF- LSMF Series - PTC Resettable Fuses
2920 33V ptc fuse

2920 33V ptc fuse

Alternatives for MF-LSMF PTC Resettable Fuses

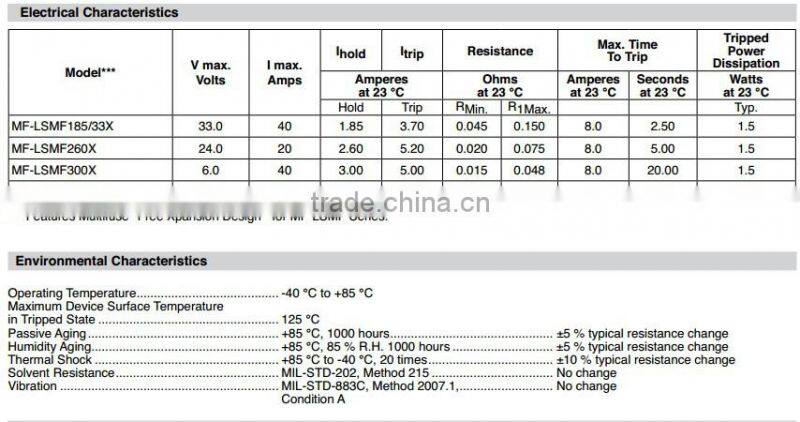

ELECTRICAL CHARACTERISTICS





Part Number



















Maximum

Time To Trip

Resistance

Agency

Approval

I hold

(A)

Itrip

(A)

Vmax

(Vdc)

I max

(A)

Pd max.

(W)

Current

(A)

Time

 (Sec.)

R min

(Ω)

R typ

(Ω)

R 1max

(Ω)

SMD2920P030TF

SMD2920P050TF

SMD2920P075TF

SMD2920P100TF

SMD2920P125TF

SMD2920P150TF

SMD2920P185TF

SMD2920P200TF

SMD2920P200TF/24

SMD2920P250TF

SMD2920P260TF

SMD2920P300TF

SMD2920P300TF/15

0.30

0.50

0.75

1.10

1.25

1.50

1.85

2.00

2.00

2.50

2.60

3.00

3.00

0.60

1.00

1.50

2.20

2.50

3.00

3.70

4.00

4.00

5.00

5.00

5.00

5.00

60

60

30

33

15

33

33

15

24

15

6

6

15

10

10

40

40

40

40

40

40

40

40

40

40

40

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

1.50

2.50

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

8.00

3.00

4.00

0.30

0.50

2.00

2.00

2.50

5.00

5.00

10.00

10.00

20.00

20.00

1.200

0.350

0.350

0.120

0.070

0.080

0.065

0.050

0.050

0.035

0.025

0.015

0.015

3.000

0.870

0.670

0.270

0.160

0.150

0.110

0.090

0.090

0.060

0.050

0.033

0.033

4.800

1.400

1.000

0.410

0.250

0.230

0.150

0.125

0.125

0.085

0.075

0.048

0.048

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV

UL/CSA/TÜV



2920 SMD PTC resettable fuse Figure

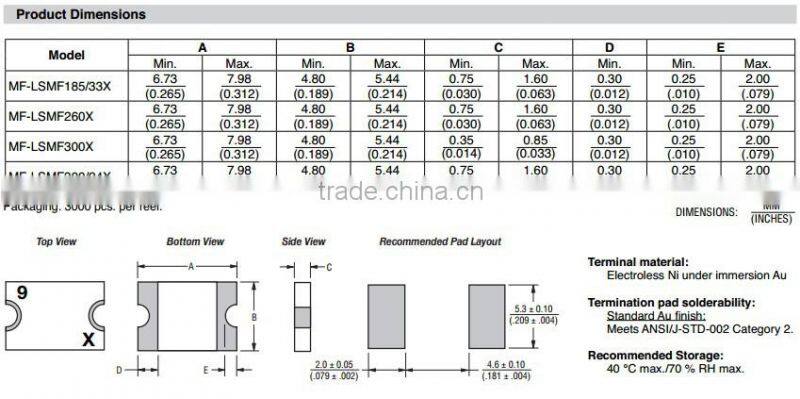

PHYSICAL DIMENSIONS (mm)2920Series



Figure

2920 33V ptc fuse

Solder PAD Layouts

(Dimension in mm)

2920 33V ptc fuse







Part Number

A

B

C

D

E

Min.

Max.

Min.

Max.

Min.

Max.

Min.

Min.

Max.
SMD2920P030TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P050TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P075TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P100TF 6.73 7.98 4.80 5.44 0.55 1.00 0.30 0.25 2.00
SMD2920P125TF 6.73 7.98 4.80 5.44 0.55 1.00 0.30 0.25 2.00
SMD2920P150TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P185TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P200TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P200TF/24 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P250TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P260TF 6.73 7.98 4.80 5.44 0.75 1.00 0.30 0.25 2.00
SMD2920P300TF 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00
SMD2920P300TF/15 6.73 7.98 4.80 5.44 0.75 1.25 0.30 0.25 2.00



PLEASE CONTACT ME FOR MORE ABOUT  MF- LSMF RESETTABLE FUSE.
