Specifications
With blister package PPTC Resettable Fuses In stock* Electrical: 50mA-2A, 6V
* Approvals: UL/CSA/TUV
With blister package PPTC Resettable Fuses In stock
Features/Benefits
With blister package PPTC Resettable Fuses In stock
> Directly solderable on printed circuit boards
> general purpose, PPTC resettable fuse
> electrical fuse
ELECTRICAL CHARACTERISTICS
SMD 1206 Resettable Series
|
Part Number |
|
|
|
|
|
Maximum Time To Trip |
Resistance |
Agency Approval |
|||
|
I hold (A) |
Itrip (A) |
Vmax (Vdc) |
I max (A) |
Pd max. (W) |
Current (A) |
Time (Sec.) |
R min (Ω) |
R typ (Ω) |
R 1max (Ω) |
||
|
SMD1206P012TF SMD1206P016TF SMD1206P020TF/24 SMD1206P025TF SMD1206P035TF/16 SMD1206P050TF SMD1206P050TF/15 SMD1206P075TF SMD1206P075TF/13.2 SMD1206P100TF SMD1206P110TF SMD1206P150TF SMD1206P200TF |
0.125 0.16 0.20 0.25 0.35 0.50 0.50 0.75 0.75 1.00 1.10 1.50 2.00 |
0.29 0.37 0.42 0.50 0.75 1.00 1.00 1.50 1.50 1.80 2.20 3.00 3.50 |
30 30 24 16 16 6 15 6 13.2 6 6 6 6 |
100 100 100 100 100 100 100 100 100 100 100 100 100 |
0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8 |
1.00 1.00 8.00 8.00 8.00 8.00 8.00 8.00 8.00 8.00 8.00 8.00 8.00 |
0.20 0.30 0.10 0.08 0.10 0.10 0.10 0.20 0.20 0.30 0.30 1.00 1.50 |
1.500 1.200 0.650 0.550 0.300 0.150 0.150 0.090 0.090 0.055 0.040 0.040 0.018 |
3.600 2.800 1.550 1.400 0.750 0.400 0.400 0.200 -- 0.110 0.110 0.080 -- |
6.000 4.500 2.600 2.300 1.200 0.700 0.750 0.290 0.305 0.210 0.180 0.120 0.080 |
UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV UL/CSA/TÜV |
Gallery of With blister package PPTC Resettable Fuses In stock
Circuit Protection Applications
> USB port protection
> PC motherboards
> PDA's / Digital cameras
> Game console port protection

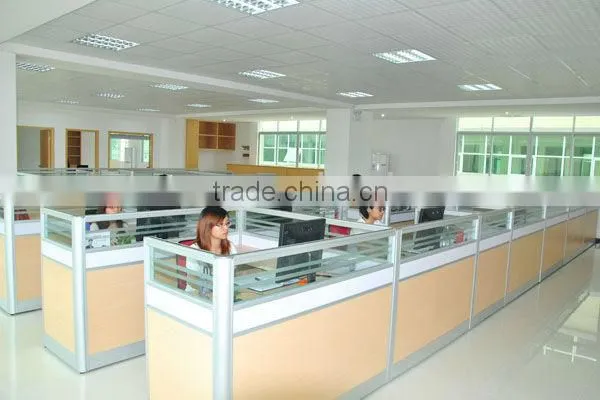

Factory Gallery
Specialist in the field of glass/ceramic tube fuse, auto fuse, thermal cutoffs, resettable fuse, Micro fuse, SMD fuse, fuse holder, fuse clip.
Our factory adopts the high quality raw material from abroad and Taiwan region, with a number of advanced fuse manufacturing and testing equipments, perfect quality guarantee system is adopted to ensure that we produce each product safety and stability.
