Specifications
>250V small fuse>Ir:100mA-10A
>Ur:125V,250V
>Size:2.4x7,8.5x8mm
>Approval:UL,VDE,ROHS
Details of 250V axail lead small fuse/Pico fuse
Fast blow/slow blow miniature fuse Time - current characteristics
Ampere Rating % |
Breaking Time |
100% |
4 hours Min |
200% |
60 sec Max |
Fast blow/slow blow 250V axial lead fuse Dimension:
More details of 250V miniature fuse/micro fuse
392 fast blow 250V miniature fuse dimension:
1.Materials:
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6,UL 94 V0
Round Pins:Copper,Sn plated
2.Operating Temperature: -40deg to 85 deg( consider de-rating)
3.Lead Pull Strenght:10 N
4.Solderability: 260deg,≤3s (Wave)
350deg,≤1s (soldering iron)
5.Climatic Category: -40deg/+85deg/21 days
382 slow blow 250V miniature fuse/small fuse dimension:
1.Materials:
Base/Cap: Brown Thermoplastic
Polyamide PA 6.6,UL 94 V0
Round Pins:Copper,Sn plated
2.Operating Temperature: -40deg to 85 deg( consider de-rating)
3.Lead Pull Strenght:10 N
4.Solderability:260deg,≤3s (Wave)
350deg,≤3s (soldering iron)
5.Climatic Category: -40deg/+85deg/21 days

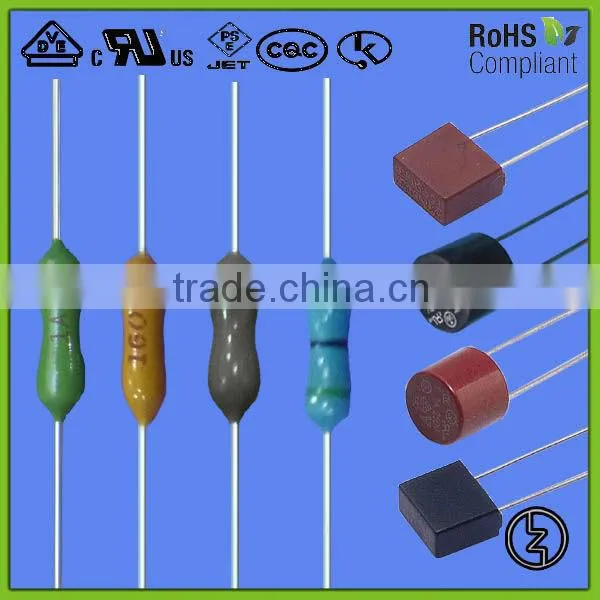

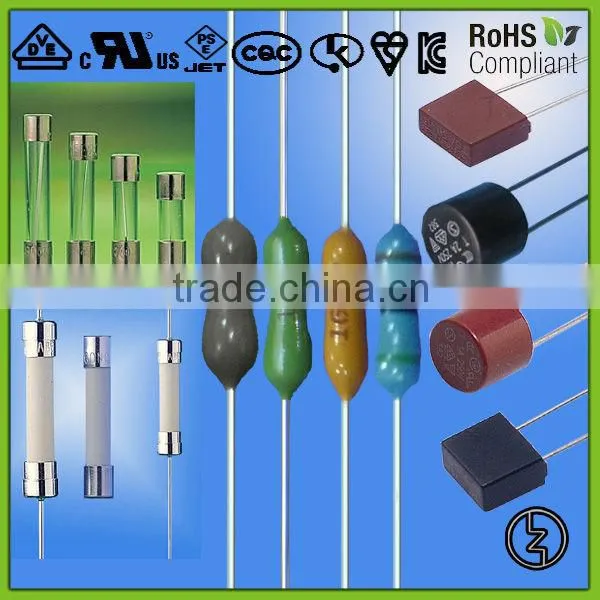

Photos of 250V Miniature fuse/axail lead fuse/micro fuse
If you send me inquiries,please tell me the details as below:
1)Miniature fuse or axial lead fuse
2)Slow blow or fast blow
3)Rated current and rated voltage
If you need more information of Fast blow/slow blow 250V miniature fuse/axail lead fuse/micro fuse ,pls feel free contact me.
Skype:tianruifuse01

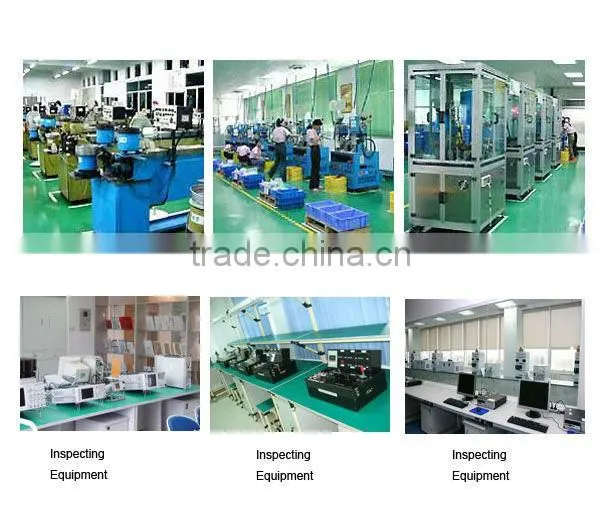

Factory gallery
Reomax, specialist/OEM supplier of 250V Miniature fuse/axail lead fuse/micro fuse
- Glass tube fuse
- Ceramic tube fuse
- SMD fuse|Pico fuse
- Thermal cutoff
- Thermostat
- Micro fuse
- Fuse holder|Inline fuse holder|Fuse clip
- PTC resettable fuse|PPTC fuse
- Auto fuse|Blade fuse
Absolutely competitve price and best quality!
Welcome to contact us for the details.
