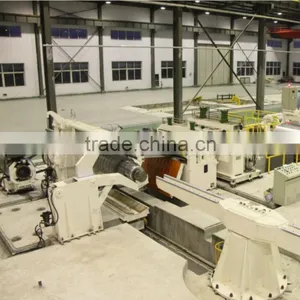

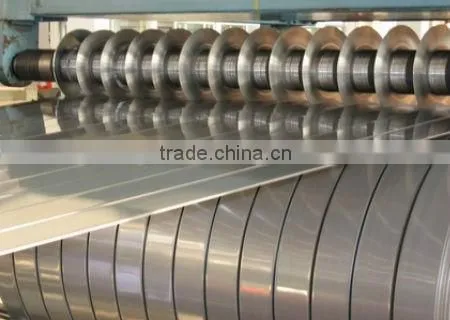

slitting line for steel

Specifications

1.slitting line for steel ,stainless steel,aluminum
2.high speed slitting line 200 M/ Min
3.high precision slitting line0.03mm

Jiangsu Jianghai Machinery Co.,ltd was established in 1967.

The company has approved ISO9001-2008 quality management system.



High speed slitting line suit for kinds of raw material coil

1. steel coil (SPCC,Galvanized Steel,Electrical Steel),Stainless Steel coil ,Aluminum coil ,Copper coil ,etc.

2. the width for slitting line from 650mm to 1850mm

3. the thickness for slitting line from 0.2mm to 3.2mm

4. slittling line max speed 200 M/Min

5. slitting line cutting tolerance ± 0.03mm



Raw Material	SPCC,GL,EG,SUS304,ALUM,COPPER,ETC
Coil Width (mm)	650	1350	1650	1850
Cutting Width (mm)	100-650	300-1350	300-1650	550-1850
Coil Thickness (mm)	0.2-2.3	0.3-3.2	0.3-3.2	0.3-3.2
Coil Weight (Tons)	5	15	20	25
Cutting Speed (M/Min)	150	150-200	150-200	150-200
Width Tolerance (mm)	±0.03	±0.1	±0.1	±0.1
