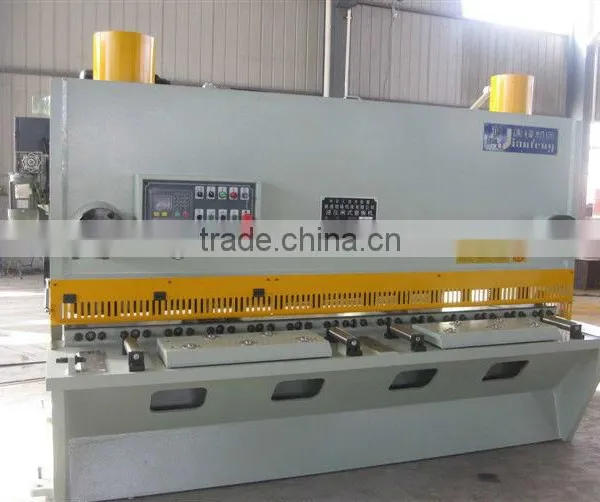

Help CenterQC11Y/K HYDRAULIC CNC Shearing Machine
Related Products
-
Four Roller Plate Rolling Machine/Ship Building Plate Rolling Machine/Marine BENDING MACHINEUS$ 10,000 - 600,000MOQ: 1 Set -
Hydraulic Plate Rolling MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
W11 Mechanical Plate Rolling Machine/roller Bending MachineUS$ 3,000 - 10,000MOQ: 1 Set
-
QC12K CNC Plate Shearing Machine/ Pendulum Plate Shearing Machine / Hydraulic Cutting MachineUS$ 6,000 - 15,000MOQ: 1 Set
-
QC12Y-50x6000 Large Shear Machine/Pendulum Plate Shearing Machine / Hydraulic Cutting MachineUS$ 80,000 - 200,000MOQ: 1 Set
Performance:
1. Completed frame welded, vibration to eliminate stress, high in rigidity, sturdy and durable.
2.The plate shearing machine is equipped with advanced integrated hydraulic system, driven by hydraulic and returned by nitrogen cylinder; it is with stable and reliable performance, easy for operation and beautiful machine appearance.
3. Three points support rolling rail, relieve rail gap and improve shearing quality.
4. Rectangular blades, all four cutting edges can be used and has long service life
5. Hydraulic adjust shearing angle and reduce shearing deformation
6. Upper blade frame is applied introversion structure and easy for falling materials and improve precision.
7. With the function of split shearing.
8. Electric operated back gauge, digital display.
9.Adjust gap very quickly.
Technical Parameters:
Model |
Shearing Thickness |
Plate Width |
Number of Stroke |
Back gauge (mm) |
Shearing Angle (°) |
Motor power (KW) |
QC11Y/K-6×2500 |
6 |
2500 |
16-35 |
20-580 |
0.5-1.5° |
7.5 |
QC11Y/K-6×3200 |
6 |
3200 |
14-35 |
20-580 |
0.5-1.5° |
7.5 |
QC11Y/K-6×4000 |
6 |
4000 |
10-30 |
20-580 |
0.5-1.5° |
7.5 |
QC11Y/K-6×5000 |
6 |
5000 |
10-30 |
20-800 |
0.5-1.5° |
11 |
QC11Y/K-6×6000 |
6 |
6000 |
8-25 |
20-800 |
0.5-1.5° |
11 |
QC11Y/K-8×2500 |
8 |
2500 |
14-30 |
20-600 |
0.5-1.5° |
11 |
QC11Y/K-8×3200 |
8 |
3200 |
12-30 |
20-600 |
0.5-1.5° |
11 |
QC11Y/K-8×4000 |
8 |
4000 |
10-25 |
20-600 |
0.5-1.5° |
11 |
QC11Y/K-8×5000 |
8 |
5000 |
10-25 |
20-800 |
0.5-1.5° |
15 |
QC11Y/K-8×6000 |
8 |
6000 |
8-20 |
20-800 |
0.5-1.5° |
15 |
