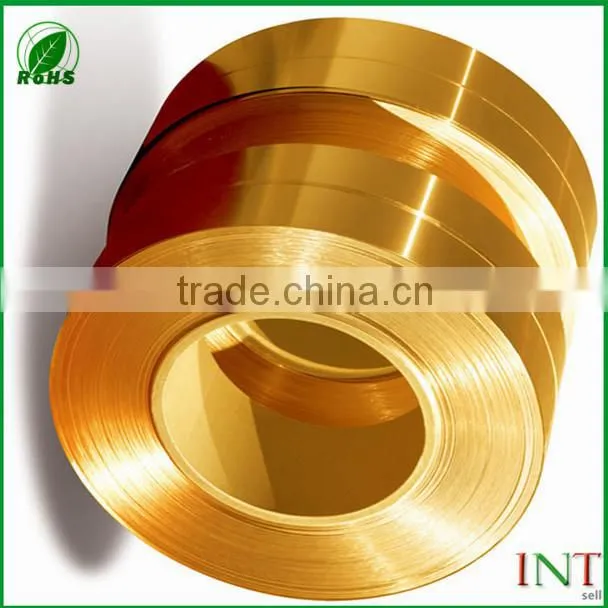

GB DIN EN ISO UNS JIS standard CuZn20 c24000 brass strips
Yellow Brass is a copper zinc alloy which is basically used for hot or cold formed products. Higher thermal conductivity of brass makes it ideal for heat exchangers. Altering the composition of the alloy allows brass to change into desired colors preferred by architects.
Brass is a binary alloy composed of copper and zinc that has been produced for millennia and is valued for its workability, hardness, corrosion resistance and attractive appearance.
- Density: 8.3-8.7 g/cm3
- Melting Point: 1652-1724 °F (900-940 °C)
- Moh's Hardness: 3-4
| Class | Copper (%) | Zinc (%) | Notes | |||||
| Alpha brasses | >65 | <35 | Alpha brasses are malleable, can be worked cold, and are used in pressing, forging, or similar applications. They contain only one phase, with face-centered cubic crystal structure. | |||||
| Alpha-beta brasses | 55–65 | 35–45 | Also called duplex brasses. Suited for hot working. It contains both α and β' phase; the β'-phase is body-centered cubic and is harder and stronger than α. Alpha-beta brasses are usually worked hot. | |||||
| Beta brasses | 50–55 | 45–50 | Can only be worked hot, and are harder, stronger, and suitable for casting. | |||||
| White brass | <50 | >50 |
Too brittle for general use. The term may also refer to certain types of nickel silver alloys as well as Cu-Zn-Sn alloys with high proportions (typically 40%+) of tin and/or zinc, as well as predominantly zinc casting alloys with copper additive. |
|||||
Specification
All dimensions are according to customers requirements.
Different countries’Standard comparison table of copper
GB |
DIN |
EN |
ISO |
UNS |
JIS |
H96 |
CuZn5 |
2.0220 |
CuZn5 |
CE500L |
CuZn5 |
C21000 |
C2100 |
H90 |
CuZn10 |
2.0230 |
CuZn10 |
CW501L |
CuZn10 |
C22000 |
C2200 |
H85 |
CuZn15 |
2.0240 |
CuZn15 |
CW502L |
CuZn15 |
C23000 |
C2300 |
H80 |
CuZn20 |
2.0250 |
CuZn20 |
CW503L |
CuZn20 |
C24000 |
C2400 |
H70 |
CuZn30 |
2.0265 |
CuZn30 |
CW505L |
CuZn30 |
C26000 |
C2600 |
H68 |
CuZn33 |
2.0280 |
CuZn33 |
CW506L |
CuZn35 |
C26800 |
C2680 |
H65 |
CuZn36 |
2.0335 |
CuZn36 |
CW507L |
CuZn35 |
C27000 |
C2700 |
H63 |
CuZn37 |
2.0321 |
CuZn37 |
CW508L |
CuZn37 |
C27200 |
C2720 |
| Payment & Delivery Terms | |||||
| Minimun Qrder Quantity | 50 Kilogram | ||||
| Packing Details | In reel packed with vacuum plastic film, then in carton or wooden box | ||||
| Delivery time | 20 days | ||||
| Payment Terms | T/T, L/C, ESCROW, West Union, MoneyGram | ||||
| Supply Ability | 10 tons per Month | ||||
About shipment
1. By sea, by air, by door to door express (FedEx, UPS, DHL, TNT, EMS).
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different because of different weight and destination, we will choose the cheapest and safest way according to your detailed requirement.
4. Normally, it will take around 3-7days from China to destination country.
Thank you for coming to our website. If you have any questions or suggestions, please do not hesitate to contact us, we will reply you with in 12 hours, to see more products of copper series strips pls click https://img13.fr-trading.com/productgrouplist-222448411/Copper_alloy_strips.html !!!
