Specifications
1.Stable performance2.Smart digital control
3.Productivity 1200 cards/hour

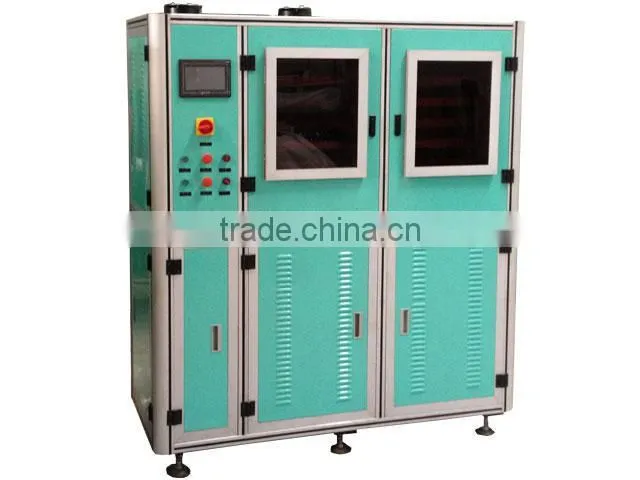

DT-5B laminating machine is one of the professional equipment for making IC and ID cards.
It is well developed by our company with intelligent temperature control system and time control system.
According to CE Standard, we improved the safety and insulation systems.
The machine will automatically run and stop when the security door open and close to guarantee the safety of the operators. It helps to maintain the machine temperature.

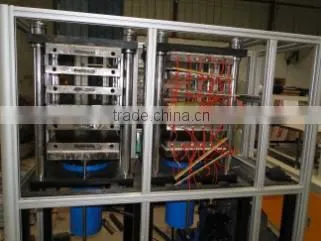

This machine has three sets pressure systems that display the setting pressure and working pressure continuously to enhance the production efficiency.
The heating laminating plates are made of ductile iron that keeps it away from distortion.
The motor of this machine is designed to automatically run and stop to save the energy.
This machine has many advantages: low noise, low waste and vibration; easy operation; high efficiency.
It is one of the perfect equipment for all kinds of PVC companies and factories to produce identification cards, certification cards, bank cards, and also cards can be used in bus, high way, and social insurance area, and so on. It is suitable for laminating and processing all kinds of plastic cards.
Precision producing and whole sealed beautiful outlook makes it a very good choice for you.
Main specifications:
Laminating Area |
350×520mm or 420×520mm(customized) |
Laminating station |
5 stations for heating lamination 5 stations for cooling lamination |
Pressure Method |
Automatic hydraulic pressure system, 2 unites pressure module |
Control Method |
PLC and Touch Screen |
Pressure Range |
0-16MPa ± 0.1MPa 0-63Tons |
Temperature Range |
room temperature to 400 °C |
Heating Method |
electric power (imported heating elements) 4units temperature sensor detection systems |
Cooling Method |
automatic chiller inside machine ( environmental protection ) or automatic water cooling by water pump with pipes |
Working Efficiency |
300-600pcs sheets per hour |
Input Voltage |
380V or 220V 50/60Hz |
Power |
30kw |
Power consumption |
2-4KW per hour |
Dimension |
2200mm*1050mm*2000mm |
Net/Gross Weight |
2800KGS/3050KGS |
