Specifications
1.Stable performance2.Smart digital control
3.Productivity 1200 cards/hour

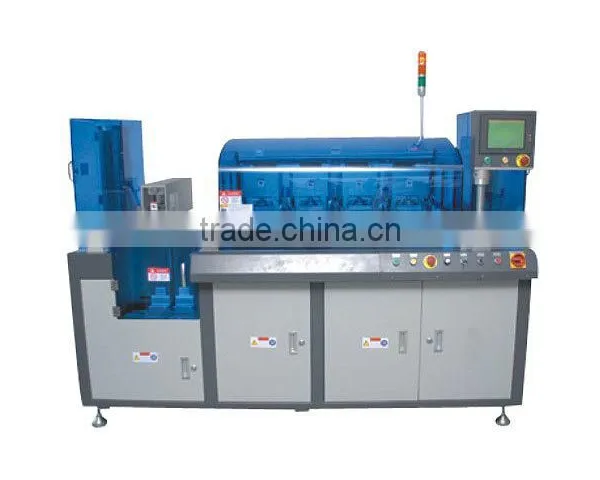

DT-6 Full Automatic GMS Card Punching Machine
DT-6 Full Automatic GSM Card Punching Machine is used to punch the GSM / SIM card from the standard card, full automatic load cards one by one, then break off line impress and slot punching and collect cards.
1. Controlled by Servo motor, low noise and stable.
2. Double cards detection function
3. Module detection function makes sure the correct card direction when transfer.
4. Special location design can punch different cards with special shapes.
5. Sensors added on the card centering system makes sure a good accuracy of cutting and punching position.
6. Two different out feeding designs; cards can be collected automatically.
7. Cards transferred through belt driven by servomotor ensure the safety and stability of the machine.
8. Personalized software design. Machine can be empty automatically and sample cards freely
9. Special feeding design avoids unloading double cards caused by static electricity.
Technical Parameter:
| Card Size | 85.6mm*54mm |
| Control Method | PLC , Touch Screen, Servo System |
| Air Supply | 0.6MPa 120Liter/minute |
| Voltage Input | 220V 50/60Hz |
| Power | 4KW |
| Servo Precision | X and Y - 0.0125mm |
| Tolerance | 0.01mm |
| Working Efficiency | 4000-4500pcs card per hour |
| Packing Size | 2140mm*820mm*1600mm |
| Net/Gross Weight | 1100KGS/1200KGS |
