Specifications
Electric glass melting furnaceChamber size customizable
PID controlwith SCR.
Direct and technical factory
Model: KJ-1600-1400-1200X electric glass melting furnace
Parameter of chamber size: customizable
Main specification
| Model | KJ-1600C KJ-1400C KJ-1200C |
| Thermocouple | B-type S-type K-type |
| Heating Element | MoSi2 rod SiC rod Fe-Cr-Al Alloy doped by Mo/Ni-Cr-Al wire |
| Working Temperature | 1500 ℃ 1300 ℃ 1100 ℃ |
| Furnace Construction |
Heavy duty double layer structure with cooling fan. Lower teperature in outside case High purity ceramic fiber insulation (energy saving 40% and weight lighter about 30% than old furnace) PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier) The door can be designed to up and down type or slid type |
| Heating rate | 0~15°C/min (suggestion: ≤10°C) |
| Temperature Controller | 30 segments programmable PID digital auto temp control via SCR(Silicon Controlled Rectifier) |
| Temperature Uniformity | +/- 5℃ in heating zone |
| Control Accuracy | +/- 1 ℃ |
| Packing | plastic paper inside, polyfoam filled, wooden box outside. |
| Power | 2~6 KW |
| Voltage | 208~240V single phase 50/60 Hz |
| Warranty | One year limited with life time suppport(consumable parts are not covered by the warranty.) |
| Box size | 500 x 485 x 700mm (with package 600 x 585 x 900mm) |
| Weight | net weight 95Kg/gross weight120 Kg |
| Chamber |
150x150x150mm (6"x6"x6") 150x150x200mm (6"x6"x8") 200x200x200mm (8"x8"x8") 200x200x300mm (8"x8"x12") 250x250x300mm (10"x10"x12") 300x300x400mm (12"x12"x16") 350x350x400mm (14"x14"x16") 400x400x400mm (16"x16"x16") 500x500x500mm (20"x20"x20") Note: chamber sizes are customizable |
Special requirement can be designed according to your requirement
Details of applications
Stress Relieving
Ashing Crystallize
Melting or smelting
Heat treating or Preheating;
Quench or Hardening or Austemper
Annealing or Tempering or Normalizing
Sintering or Roasting or Forging or calcining;
Gravimetric Quantitative Temperature analysis
Synthesis and degradation or pyrolysis or decomposing
Photos

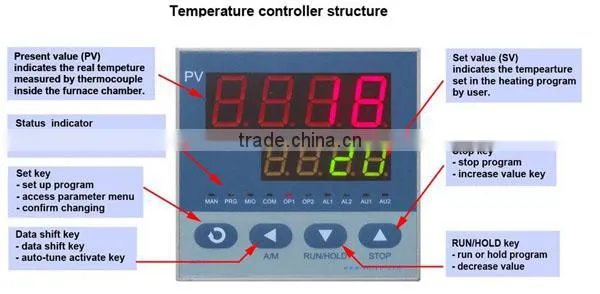

PID digital auto temp control
SiC rod MoSi2 rod
the light ceramic fiber as furnace chamber
Warranty
Our products are warranted to be free from defects in materials or workmanship for 1 years from the date of purchase. Within this period, across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs. Replacement will be shipped to you after photo or other evidence are provided and investigated.
Deliver by air, by express, by sea or shipping timely according to your requirement.
Pls tell us the shiping method you prefer and the destination airport or seaport in advance.
Then we can check the freight for you.
Our service
Deliver products timely
Reply your inquiry at my first convenience
Any problems please contact me, I’ll go through all the questions with you.
We will offer the tracking No. for checking the status we ship the doods.
