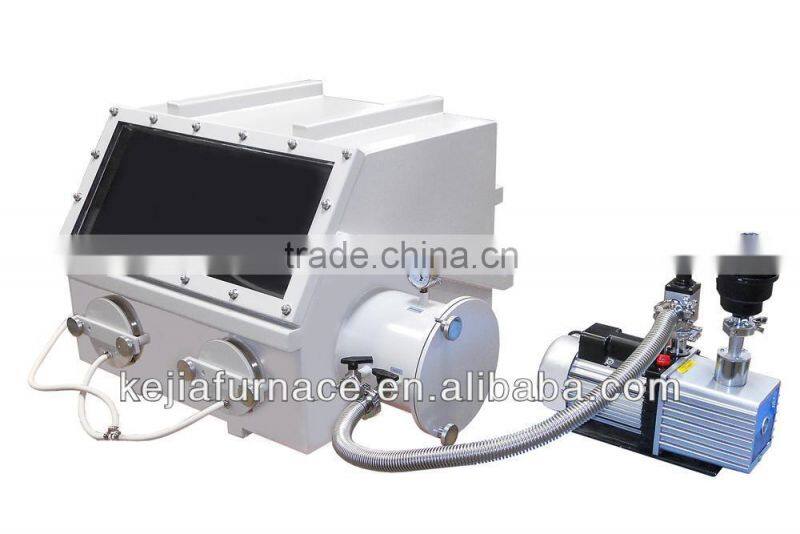

Benchtop Transparant Vacuum Glove Box With Pressure Control System
US$ 1,200 - 9,800
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Kejia
Model Number:
Vacuum glove box
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhengzhou Qingdao etc.
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Vacuum Induction Melting System With Quartz Tube/melting FurnaceUS$ 1,200 - 23,000MOQ: 1 Set -
High Temperaure Heat Treatment Vacuum Brazing FurnaceUS$ 1,320 - 34,000MOQ: 1 Set
-
Industrial Vacuum Tempering Furnace Heat Treament FurnaceUS$ 2,100 - 43,000MOQ: 1 Set
-
Industrial Vacuum Tempering Furnace Vacuum Melting FurnaceUS$ 2,100 - 43,000MOQ: 1 Set
-
High Temperature Heat Treatment Vacuum Brazing FurnaceUS$ 8,100 - 34,000MOQ: 1 Set
Place of Origin
Henan, China
Brand Name
Kejia
Model Number
Vacuum glove box
Power
Electronic
Usage
Other
Specifications
Vacuum glove boxDimensions: 200mm(ID) x 270mm(L)
Max. Vacuum Level: 0.05 Torr
Vacuum glove box

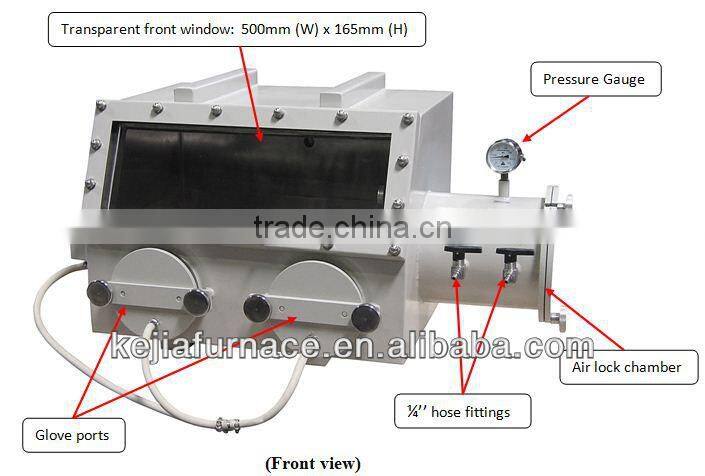

Vacuum glove box is a small size stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions.
Dimensions: 200mm(ID) x 270mm(L)
Max. Vacuum Level: 0.05 Torr
Glove box chamber:
- Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with sport frame, which provide heavy duty structure for vacuum
- Dimensions: 555mm(L) x 444mm(W) x 414mm(H)
- Max. Positive Pressure: 810 Torr (1.1 atm)
- Note: Gloves cannot work if pressure is higher than 810 Torr
- Max. Vacuum Level: 0.5 Torr
- Note: Stainless Steel case may deform at higher vacuum level
Vacuum gauge and valves
- Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging
- Do not operate under vacuum status. Vacuum process is used for purging the glove box chamber before operation.

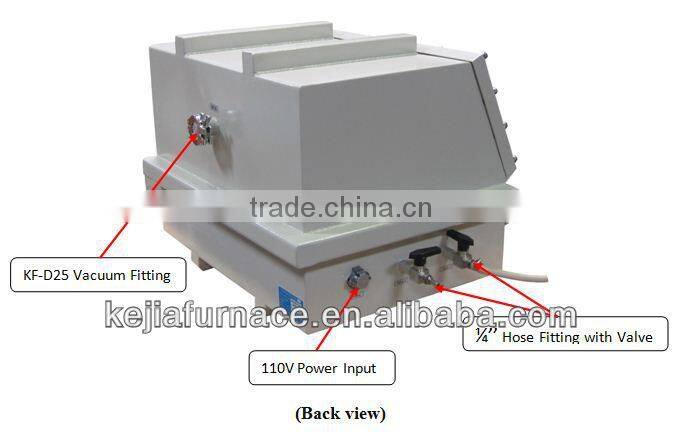

- One KF-25 connector is installed in the back for connecting humidity monitor or other testing equipment

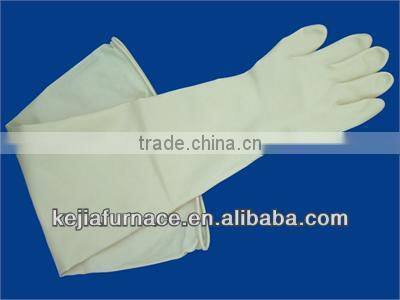

Glove:
- One pair of Latex Gloves are included for immediate use
- Optional: You may order 6'' Butadyl® gloves here because they have:
- Increased stretching, bending ability and tear strength
- High effectiveness when vaporized hydrogen peroxide (VHP) is present
- High resistance to aromatics, hydrocarbons, solvents, fats, and acids
- Resistozone
- High static dissipative qualities
Warranty
- One year limited warranty with lifetime support
- Rusting and damage due to improper storage condition or maintenance is not covered by warranty
Pressure controller
- Controls pressure inside the glove box chamber by adjusting the two solenoid valves
- Working Voltage: 110-220V
- Pressure Control Range: 101 - 95 kPa (Default)
Vacuum pump and fittings (Optional)
