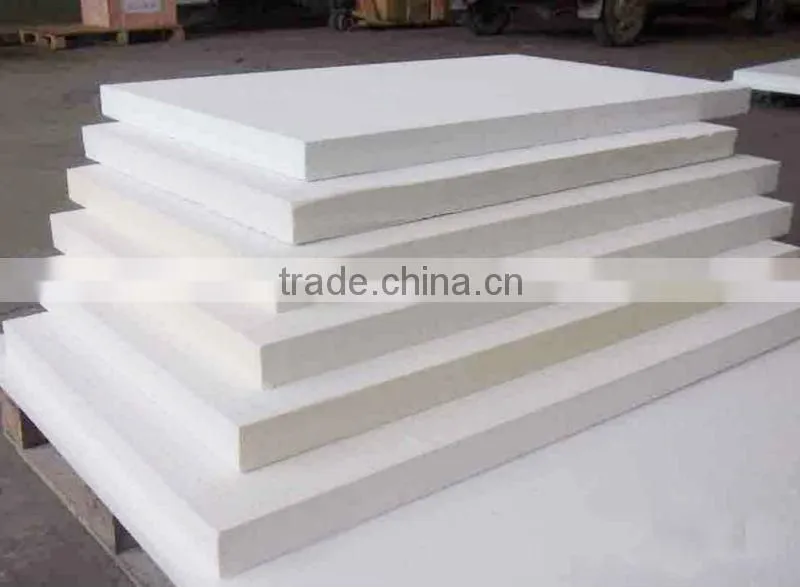

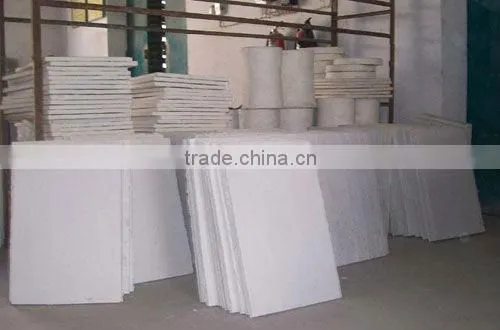

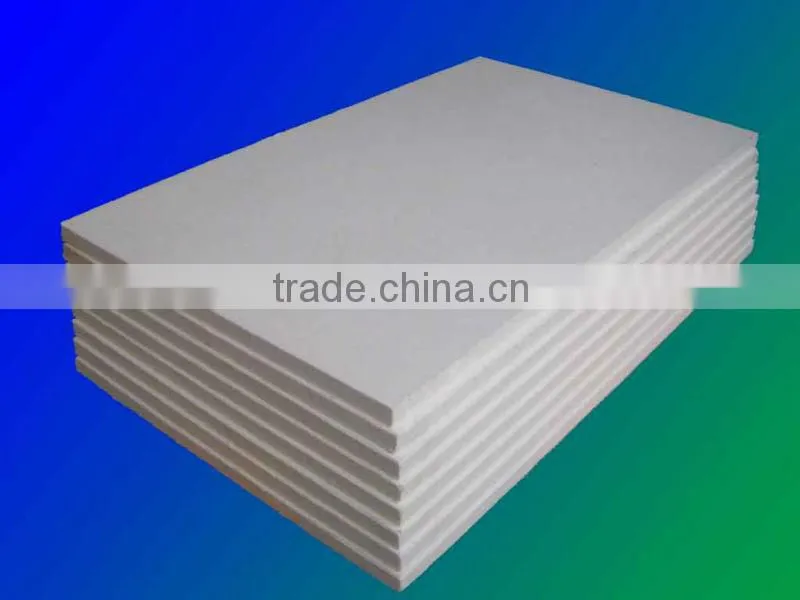

Refractory Ceramic Fiber Board

Refractory Ceramic Fiber Board thumbnail-1
Refractory Ceramic Fiber Board photo-1
US$ 1 - 152 MOQ: 2 Pieces
Key Specifications
Get Latest Price
Application:
Refractory
Thickness:
customizable
Width:
customizable
Contact Supplier Request Quote Chat Now
Zhengzhou Kejia Furnace Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Application Refractory
Thickness customizable
Width customizable
Length customizable
Grade HAZ (High Aluminum Zirconium)
Place of Origin Henan, China

Specifications

Low thermal conductivity
Low thermal capacity
Flexible
ceramic fiber board for Combustion chamber liners,boilers and heat

Product Detail

  • Company Profile

Report Suspicious Activity

Quick Details

Application: Heat Insulation Thickness: 5-10mm or 20-50mm Width: 400mm or 600mm
Length: 600mm or 900mm Grade: HA (High Aluminum) Chemical Composition: AL2O3 55%
Ultimate Strength (? MPa): 0.5 Working Temperature: 1200 Thermal Conductivity:
0.085(400?)0.132(800?)0.180(1000?)
Place of Origin: China (Mainland) Model Number:   Brand Name: Kejia
Color: pure white Density: 260 or 320 Name:
ceramic fiber board for Combustion chamber liners,boilers and heaters
Specifications

ceramic fiber board  for Combustion chamber liners,boilers and heaters
Low thermal conductivity
Low thermal capacity
Flexible

ceramic fiber board for Combustion chamber liners,boilers and heaters

Features
1.Low thermal conductivity
2.Low thermal capacity
3.Good thermal shock resistance
4.Flexible and tearing resistance
5.No asbestos and anti-corrosive
6.Good electric and sound insulation
7.Good mechanical working performance
8.Even thickness and density





 Refractory ceramic fiber boardRefractory ceramic fiber boardRefractory ceramic fiber boardRefractory ceramic fiber boardRefractory ceramic fiber board

Application
1.Industrial furnace wall lining
2.Masonry insulation
3.High temperature furnace linling of the kiln
4.Kiln car furnace door baffle
5.Furnace temperature separation plate
6.High temperature,high fever equipment insulation
7.Insulation IAF
8.Shipbuliding insulation
9.Fire safety
10.Noise insulation
11.Available size:600*400*10-50mm,900*600*20-50mm,1200*1000*10-100mm



Physical and chemical composition



Common

Standard

Pure

High aluminium

Zirconium

Classifition temperature(°C)

 1100

1260

1260

1360

1430

Work temperature(°C)

 ≤1000

1050

1100

1200

1350

Color

White

Pure white

Pure white

Pure white

Pure white

Density(kg/m3)

 260
320

 260
320

 260
320

 260
320

 260
320

Permanent linear shrinkage(%)(after24hours,density320kg/m3)

 -4
(1000°C)

 -3
(1000°C)

 -3
(1100°C)

 -3
(1200°C)

-3
(1350°C)

Thermal conductivity(w/m.k) density285kg/m3)



 0.085(400°C)
0.132(800°C)
0.180(1000°C)

 0.085(400°C)
0.132(800°C)
0.180(1000°C)

 0.085(400°C)
0.132(800°C)
0.180(1000°C)

 0.085(400°C)
0.132(800°C)
0.180(1000°C)

0.085(400°C)
0.132(800°C)
0.180(1000°C)

Compressive strength(Mpa)(thermal shrinkage 10%)

 0.5

 0.5

 0.5

 0.5

0.5

Chemical composition

(%)

 AL2O3

 44

46

47-49

52-55

39-40

 AL2O3+SIO2

 96

97

99

99

-

 AL2O3+SIO2+Zro2

 -

-

-

-

99

 Zro2

 -

-

-

-

15-17

Fe2O3

<1.2

<1.0

0.2

0.2

0.2

 Na2O+K2O

  ≤0.5

  ≤0.5

 0.2

 0.2

0.2

  Size(mm)

   Common 600*400*10-50,900*600*20-50
others up to buyer
