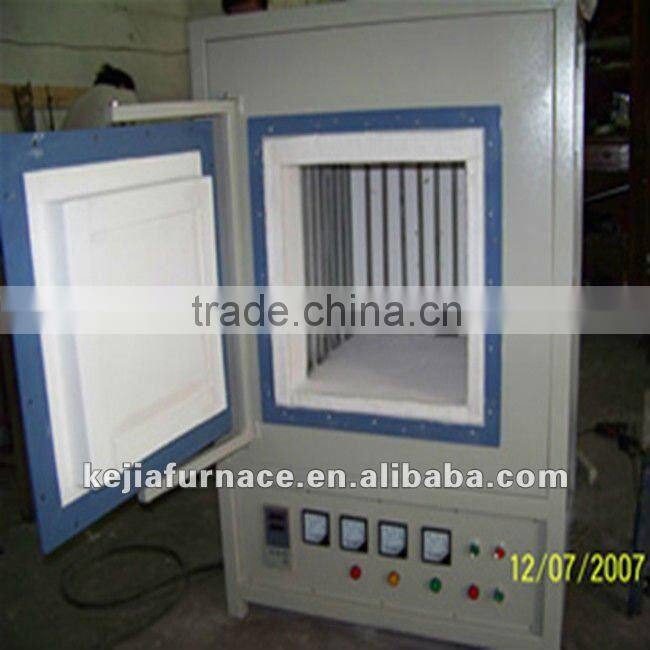

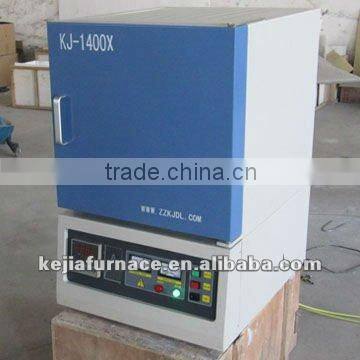

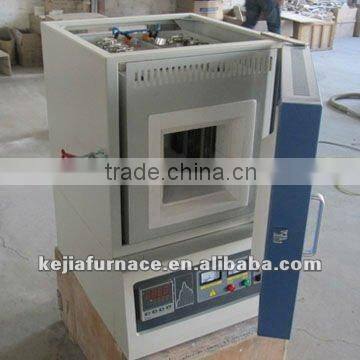

Laboratory Glass Melting Equipment With PID Automatic Control

Name: Laboratory Glass Melting Equipment With PID Automatic Control
Brand: Kejia
SKU: 116520879
Availability: InStock

US$ 1,101 - 6,703 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

Kejia

Model Number:

KJ-1400X Laboratory glass melting equipment with PID automatic control

Zhengzhou Kejia Furnace Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Zhengzhou Tianjin etc

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name Kejia

Model Number KJ-1400X Laboratory glass melting equipment with PID automatic control

Power Electronic

Usage Universal Testing Machine

Specifications

1. KJ-1400X Laboratory Melting Equipment
2. Heated by SiC rod,
3. Max. temp., 1400C; Working temp., 1300C

concrete laboratory equipment

Model: KJ-1400X Laboratory glass melting equipment with PID automatic control Size: 200x200x200mm (8”x8”x8”), (WxHxD).

Features

1. Operation Temperature: 1300°C (1400°C for short time).

2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.

3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.

4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).

5. Power control with 50 segments programmable.

Descriptions:
concrete laboratory equipment

Chamber Size	200 x 200 x 200 mm (8"x8"x8")
Working Temperature	1300°C (continuous)
Maximum Temperature	1400°C
Temperature Control	50 steps programmable and PID automatic control
Heating Rate	0~15°C/min (suggestion: ≤10°C)
Temperature Accuracy	+/-1°C
Heating Element	Silicon Carbide (SiC)
Working Voltage	AC 220V, Single Phase, 60/50 Hz (or according to your requirement)
Max. Power	5 KW
Outside Size	550 x 540 x 820 mm
Net Weight	100 Kg
