Specifications
lab furnacest lower,super performance
2.heated by SiC rods
3.50 sections
4.intelligent process control
1400 lab furnace

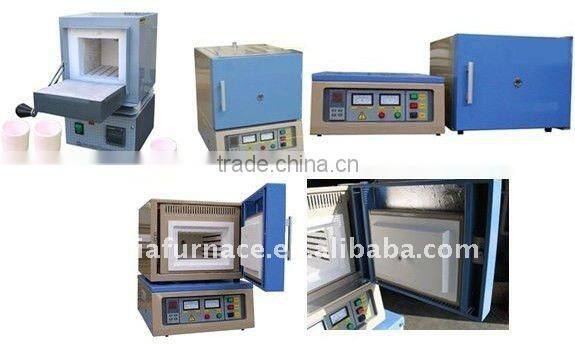

Model KJ-1400 Box-Type Experimental Muffle Furnace
KJ-1400 box-type experimental furnace with silicon carbide rod as heating element adopts double-shell structure and intelligent temperature control system phase trigger and SCR control. The furnace chamber uses 1600-type polycrystalline alumina fiber and the double inter-shell equipped with air-cooled system van do fast heating and cooling. It adopts microsoftware to start constant current to prolong the life-span of the heating elements. The furnace has the advantages of the more accurate temperature control, the balanced temperature field, the simple operation, the fast rate of temperature increasing and decreasing and energy saving.
1400 lab furnace
Main uses:
Used for universities, institutions of higher learning and scientific research departments and industrial and mining enterprises to do powder sintering, ceramic sintering, high-temperature experiment and quality assessment.
1400 lab furnace
Specifications:
Model |
KJ—1400X |
Features |
Able to increase and decrease the temperature rapidly and with the balanced temperature filed and stable temperature control and simple operation |
Working Power |
AC220V 50/60HZ |
Normal Power |
4.5kw |
Furnace Chamber Size |
300x200x120mm(able to be customized ) |
Heating Elements |
Silicon carbide rod |
Normal Temperature |
≤1350°C |
Max Temperature |
1400°C |
Furnace Door Structure |
Side open |
The Fastest Temperature Increasing Rate |
25°C/min |
Temperature Control Mode |
50-section intelligent process control |
Temperature Accuracy |
±1°C |
Dimensions |
460x520x530mm |
Weight |
165kg |
Temperature-Controlling Apparatus |
50-section PID Intellectual temperature-controlling apparatus |
Furnace Chamber |
With high pure polycrystalline alumina fiber as material and excellent heat preservation and energy saving |
Thermometric Component |
S-mode double platinum rhodium thermocouple |
Main Accessories |
Door brick, asbestos gloves, crucible tongs, thermocouple, corundum crucible |
Optional Accessories |
Furnace hobs, control software(able to rectify the process curves of electric furnaces with remote control) |
