Specifications
electric vacuum ovenLab drying oven
Prevent oxidation
Stainless steel inner box
OEM service

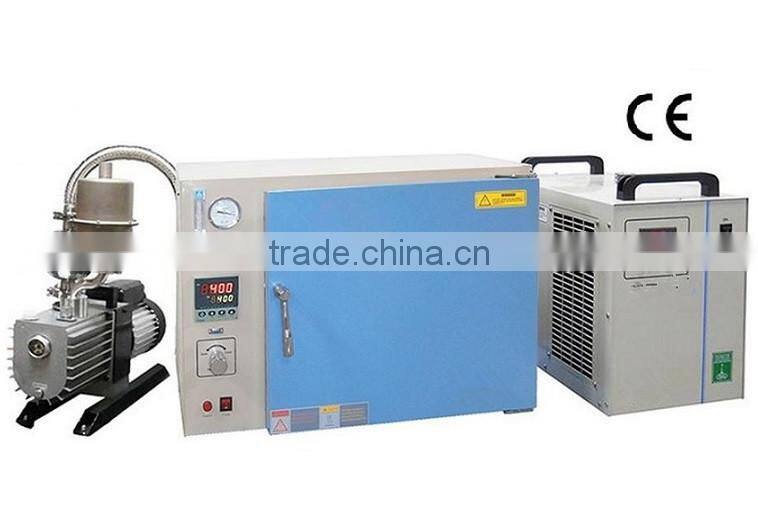

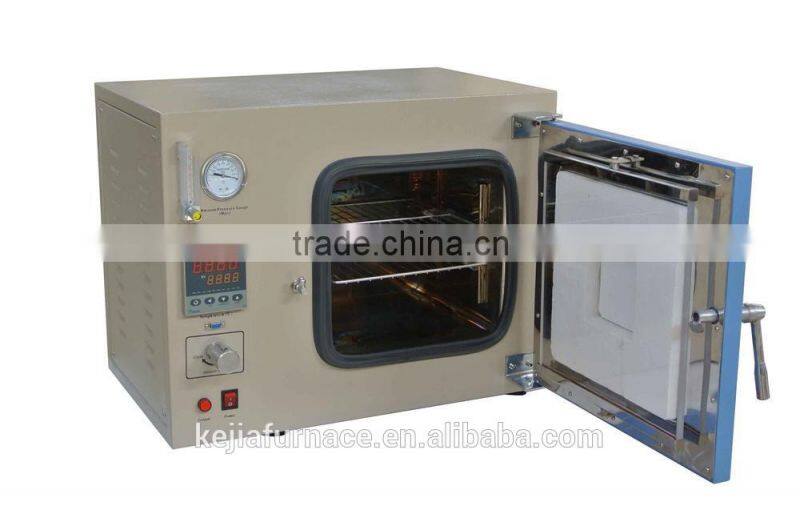

Electric Vacuum Oven
Vacuum Drying oven widely used in biochemical, chemical and pharmaceutical, health care,
agricultural research, environmental protection and other research applications for powder Drying and
roasting, as well as disinfection and sterilization of glass containers used. Particularly suitable for Drying heat-sensitive, easily decomposed, and the complex composition of easily oxidized material items for fast and efficient Drying.
Features of electric vacuum oven:
1. Interior chamber use circular arc design, the outer is made of cold-rolled steel plate, the surface
use the electrostatic spray.
2. Liner is made of stainless steel or cold rolled material, easy to clean because of corners semicircular.
3. The door’s elastic of the oven can be adjusted by the customer,Overall shape of the silicone rubber door
seal to ensure a high vacuum oven.

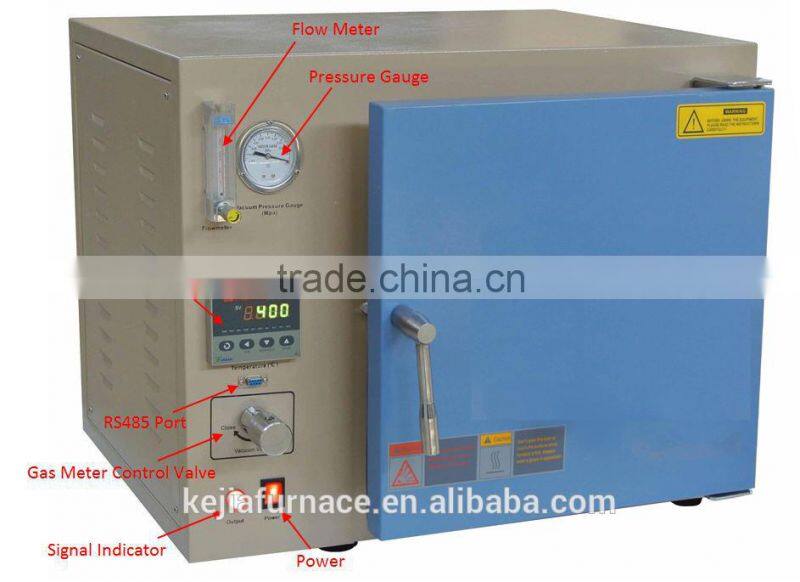

4. Control panel with microcomputer PID control, With timing and over-temperature alarm function
5. Tempered glass and anti-explosion double glass door, so the samples in Inner chamber can be watched at a glance.
Optional accessories of electric vacuum oven
1. Vacuum pump
2.Independent limit of the temperature controller
Technical Parameters of electric vacuum oven:
|
Chamber and Door |
The chamber is structured by Stainless Steel (1Cr18Ni9Ti) Inner Chamber size: 300mm(L) x 300mm(W) x 280mm(H); (12 x 12 x 11", 25 Liter) Aluminium Plate with thermal insulation. A good vacuum seal is achieved by silicone door gasket and positive latch door 2 stainless steel shelves are included to facilitate processing efficiency. Door flange with water cooling jacket to allow silicone sealing O-ring using for long time |
Working Voltage |
110 or 240VAC (20Amps circuit breaker is required) |
Power Consumption |
1400 W |
|
Recommended Heating Rates
|
5ºC/min:0ºC-100ºC |
Thermocouple |
K type |
Working Temperature |
RT ~500°C for continuous |
|

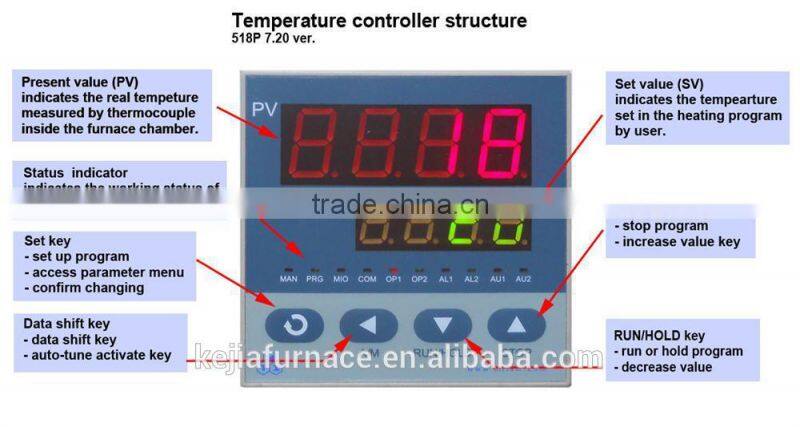

Temperature Controller |
30 segments programmable temp. Controller Built-in over-temperature protection PID precise temperature control Temperature Stability: +/-1°C |
Vacuum |
One vacuum pump is included 120 L/m Rotary Vane Vacuum Pump with Oil Trap, Exhaust Filter, Bellow & KF-D25 Inlet -EQ-2XZ Vacuum level of oven after pumping < 133pa (2 torr) |
Float Meter |
200~2000ml/min |
|

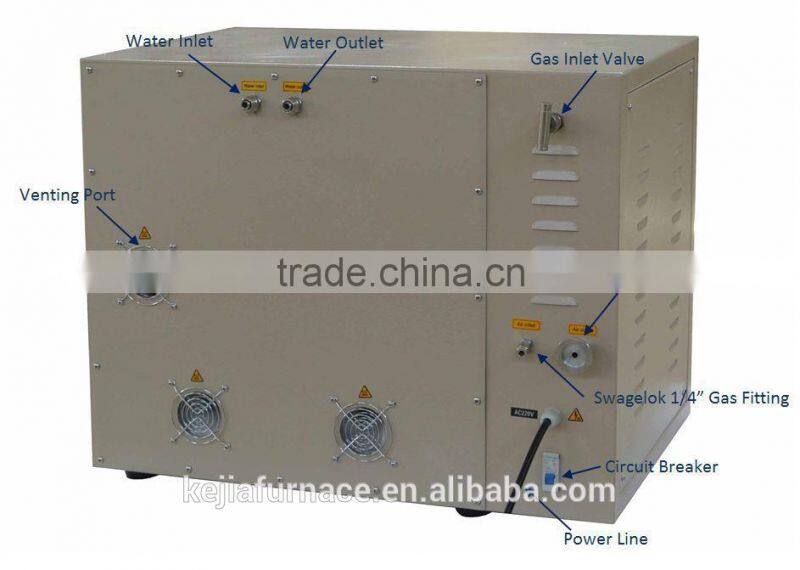

Fittings & Valve |
Gas inlet: 1/4" stainless steel fitting port with needle valve Vacuum Port: KF-25 Water Cooling Inlet & Outlet 16 L/ min water cooling is required Dia.6.35mm water cooling pipe One Digital Temperature Controlled Recirculating Water Chiller EQ-KJ5000-220 is included |
|
Dimensions
|
700mm(L) x 500mm(W) x 525mm(H) |
Warranty |
One year limited warranty with life time support |
Certification |
CE Certified |
