Specifications
1, KJ-1700BL Bottom loading muffle furnace,2, heated by MoSi2 rod;
3, Max. Temp., 1700C; Working Temp., 1600C.
Model: KJ-1700BL Bottom loading muffle furnace
Size: 150x150x150mm (6"x6"x6"), (WxHxD).
Features:
1. Operation Temperature: 1600°C (1700°C for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.
Descriptions of the bottom loading muffle furnace
Chamber Size |
150x150x150mm (6"x6"x6") |
Working Temperature |
1600°C (continuous) |
Maximum Temperature |
1700°C (for short time) |
Temperature Control |
30 steps programmable and PID automatic control |
Heating Rate |
0~15°C/min (suggestion: ≤10°C) |
Temperature Accuracy |
+/-1°C |
Heating Element |
Molybdenum Disilicide (MoSi2) |
Working Voltage |
AC 220V, Single Phase, 60/50 Hz (or according to your requirement) |
Max. Power |
4 KW |
Outside Size |
500 x 485 x 700 mm |
Net Weight |
100 Kg |
Note: there are different chamber sizes for your choice.
Package: Plastic paper inside, Polyfoam filled, Wooden box outside.
Payment: T/T, West union, etc.
Shipping and Delivery: by air/sea, in 15 days after receiving the payment.
Warranty: 1 year limited warranty on all electronic parts.

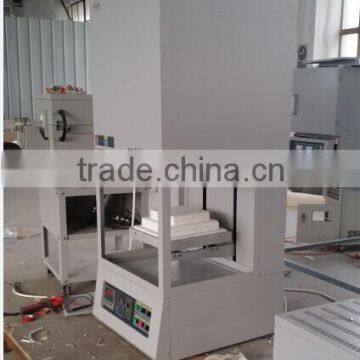

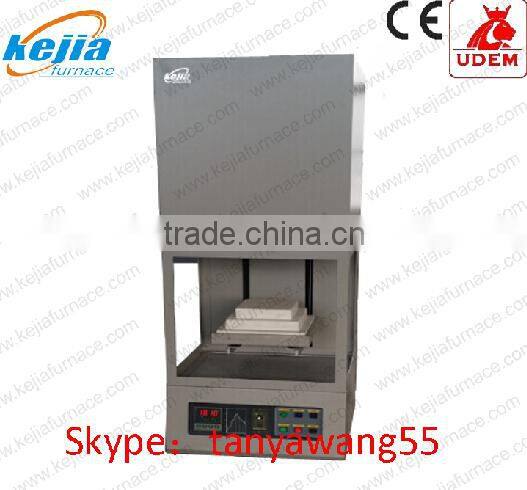

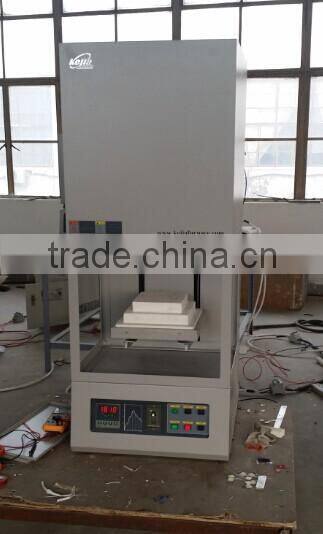

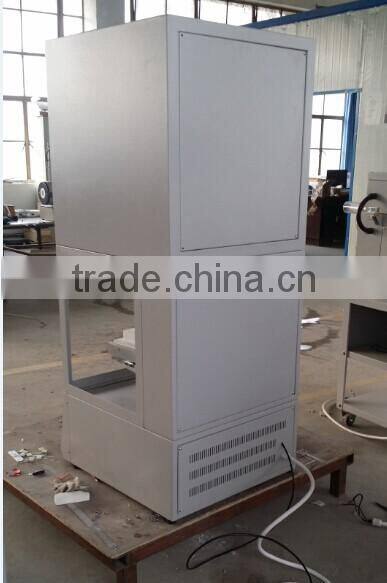

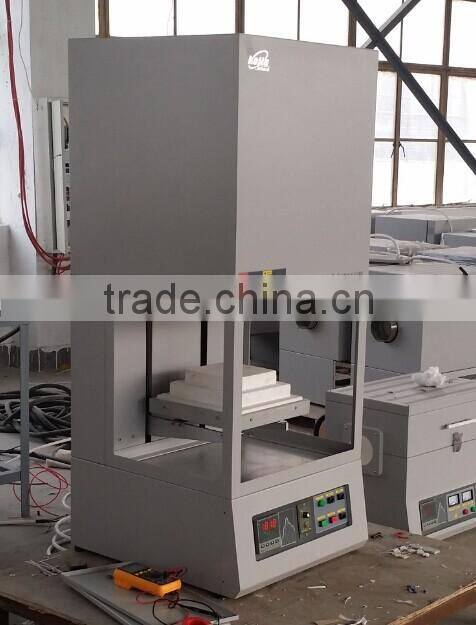

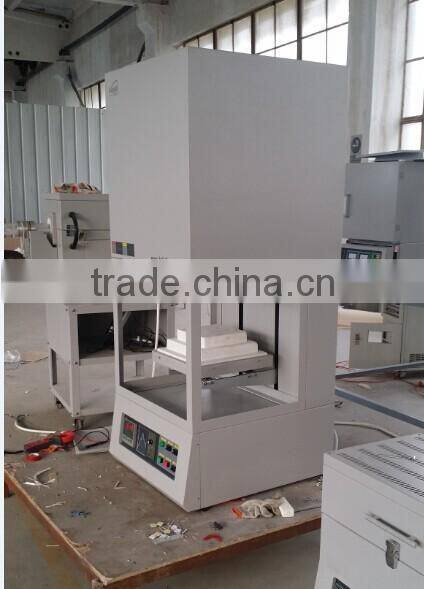

reference picture of the bottom loading muffle furnace
