Specifications
Industrial lifting furnacePID automatic control
Professional manufacturer
High purity alumina fiber for energy saving

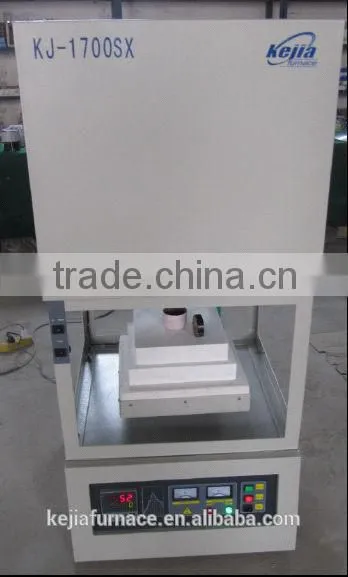

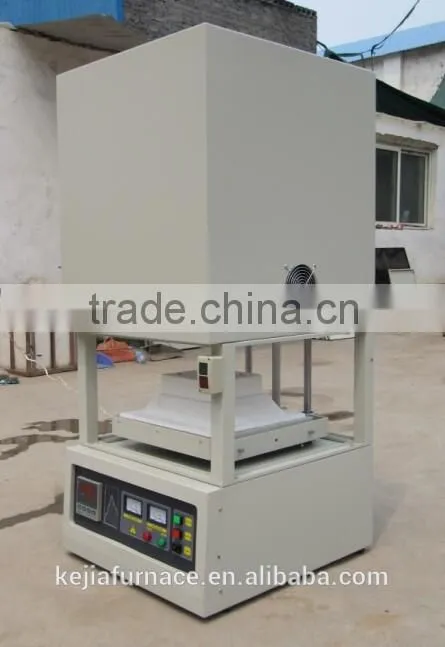

Industrial lift furnace is used in electronic ceramics with high temperature
structure ceramic sintering, the precision of annealing and microcrystalline
glass, crystal precision annealing, preparation of ceramic glaze, powder metallurgy,
the sintering of nanomaterials, metal parts quenching heat treatment and everything
should be fast heating-up process requirement, used in electronic components, new
materials and the processing of powder material vacuum atmosphere, under the
environment of inert atmosphere sintering material
SPECIFICATION | |||||||
Furnace construction |
• KJ-1700 type high purity ceramic fibre insulation (energy saving 40% and weight lighter about 30% than old furnace ). |
||||||
Chamber Size |
200x200x200mm |
||||||
Power |
6.5KW |
||||||
Voltage |
AC 110V or AC 220V 50/60 Hz (please tell us when your place order.) |
||||||
Max. Temperature |
1700 °C (< 2 hour) |
||||||
Continuous work temp. |
1600 °C |
||||||
Max. Heating Rate |
15 °C /min |
||||||
Temperature controller |
• PID automatic control and auto-tune function. |
||||||
Temperature Accuracy |
+/- 1 °C |
||||||
Heating Element |
Super MoSi2 heating element |
||||||
Thermal Couple |
B type |
||||||
Outer Dimension |
550X580X1650mm |
||||||
Gross weight with package |
250kgs |
||||||
Accessories (free charge) |
|
||||||
Softwarecontrol |
furnace through computer (if you need, additional order) |
||||||
Warranty |
One year limited warranty (Consumable parts such as thermocouple, o-rings and heating elements are not covered by the warranty, please order the replacements at related products below.) |
||||||
Certificate |
|
||||||
Standard chamber size |
Delivery time |
Standard chamber size |
Delivery time |
150x150x150mm |
30 days |
300x300x400mm |
30 days |
150x150x200mm |
30 days |
400x400x400mm |
30 days |
200x200x200mm |
30 days |
500x500x500mm |
30 days |
200x200x300mm |
30 days |
600x600x600mm |
30 days |
300x300x300mm |
30 days |
800x800x800mm |
30 days |
Features of industrial lifting furnace:
1).Big yield capacity and high productivity,especially used for heating treatment of small or medium products;
2).PID automatic control via current limiting phase angle fired thyristor with 30 steps programmable,to ensure uniform furnace temperature;
3).Loading from bottom,it will be very convenient and easy to operate.
4).Atmosphere Envelopes for applications requiring sealed workspaces for processing in inert gases.
5).Bottom loading vertical tube units for convenient loading of small crucibles combined with corrosion resistance and atmosphere control.
6).Bottom loading furnace is aviliable from working temperature 800 .C to 1600.C Furnace chamber size is customizable.
