Welcone you visit YuanxuPack Solution!
Yuanxu company has many experience in variety of packing industries for almost one decade.Yuanxu solution can provide you economic cost and high efficient solution system for your package.No matter if you use worker or not, we will design compact and good solution to develop your factory or plant.

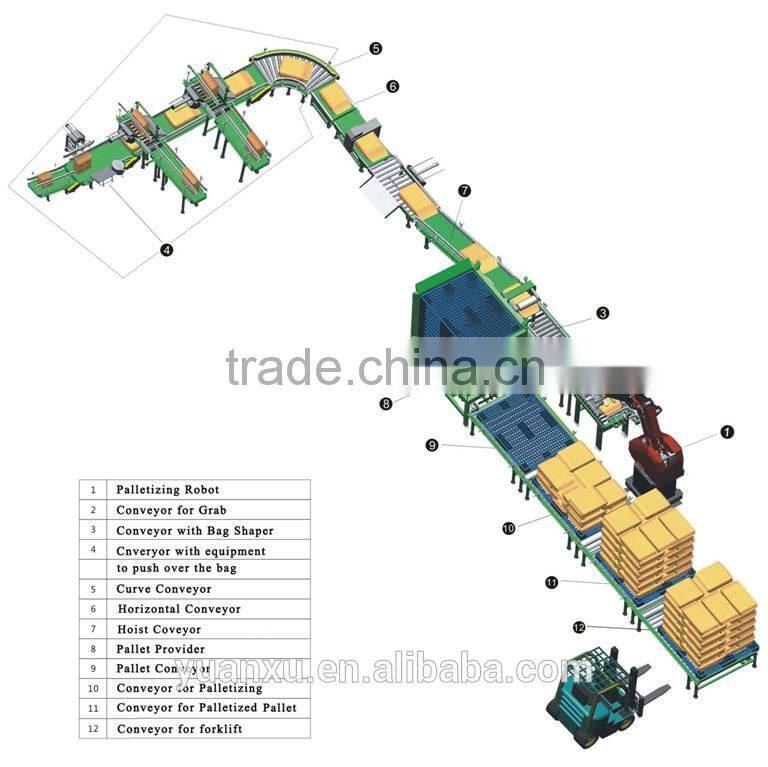

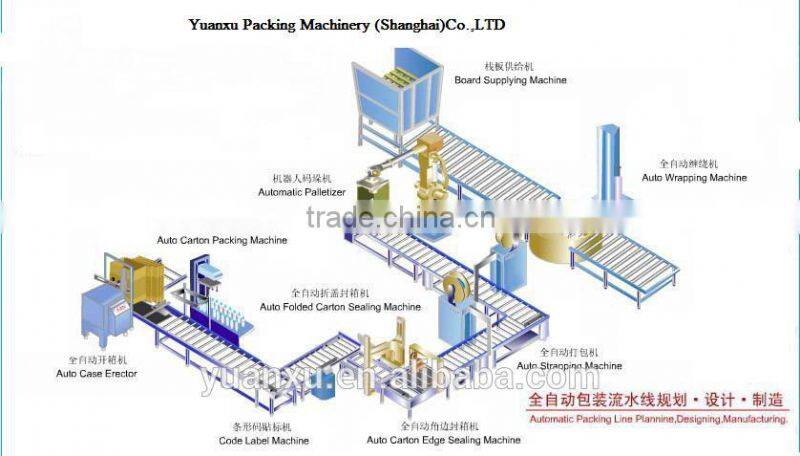

Generally, Our package solution involve below machines.
ZX-ZX01G Gripper Case Packer
structural features :
ZX03 type automatic packing machine has simple structure, convenient adjustment, man-machine interface Settings etc., can generally be in product size, organization form and die cutting board size is determined, the 1 ~ 1.5 hours can be automatic packing machine adjustment has been set up correctly
Automatic have carton open form, bottom leaves sealed.
Folded grasping movement, automatic correct right angle, open the carton without any mistakes
Compact design, simple installment
Carton Supply device: suitable for different sizes, place the cartons in line and order
bottom sealed with Tape, clean, correct, light touch.
Supply chains are of SUS304, Oil-less, qualified GMP
Safety shield is made of carbon steel, aluminum alloy and engineering plastic, and meets the state standard.
Cap folding mechanism is made o f stainless steel with cylinder.
Carton pressing mechanism is made of macromolecule engineering plastic and chrome plated spring and
carbon steel with coated surface.
Cardboard is unfolded with the plate sucking device under the control cylinder.
Bottom folding of the carton is finished with folding mechanism under the control cylinder.
Machine Dimension 1700 mm×1930 mm×1500 mm
Carton Size L( 200-500 mm) W(150-400mm) H(100-450mm)
Table Height 750±50mm
Working Speed 8-12 Carton/Min
Power 220V/380V Single Phase,50/60 Hz, Specified By Client
Pneumatic consumption 5-6kg / Cm2, 150 NL/Min, ( 0.5Mpa )
Carton storage quantity 100pcs (100mm), 70pcs (70mm)
Tape Width 48-75mm , 2″- 3″
Weight 600kg

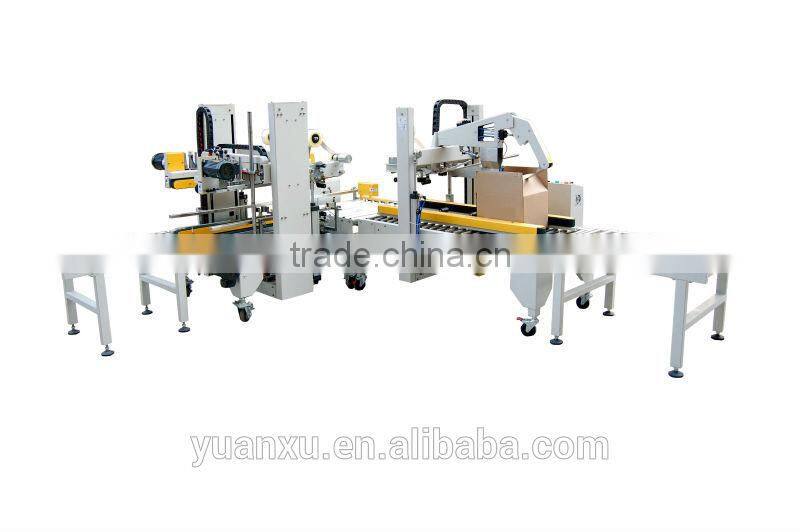

YK-05 FLAP FOLDER CARTON SEALING MACHINE
- Up flap been folded automatically, smooth and in order, sealing the carton in one time, with beautiful a appearance and save labor, widely used in automatic pack line system.
- New design potent adhesiver, knife blade imported from Germany
- Up-down belts driven, suitable for heavy duty operation, main transmission structure, High precision, Low noise, make the belts use in long time
- Alert system while running out of tape
- Around with examine and repairing doors, and E applicable switch, machine would be standby while safety door open.
YK-MD01 02 03 PALLETIZER
When products are on high speed assembling line, distance among cartons is very small, so accelerating belt, taking advantage of speed difference
between belt conveyors and roller conveyors, is adopted to separate close cartons and prepare for movement of swerving device. Belt will immediately
stop to prevent continuous cartons from entering swerving roller conveyor and aligning section conveyor when number of cartons lined on the aligning conveyors amounts to the fixed number.
2. Swerving Roller Conveyor
Cylinder is adopted to push blocking board, blocking rod or rotary table to rotate one corner of the carton, in order to stack cartons staggered.
3. Conveyors of Aligning Section
Products, after direction swerved, will be aligned by certain order through PLC control.
4.Slip Sheet Feeder
Slip Sheet Feeder for both high lever and how lever infeed palletizing machines. It automatically picks a single sheet from the magazine and place a
slip sheet or pull sheet on pallet.
5. Stacking Device of Elevating Table
Sliding board is driven by motor and its elevating movement will be finished by chain and brake motor. When cartons on stacking table accounts to
a full layer, sliding board will automatically move above pallets pile, and cylinder of aligning device will push out to compactly array cartons on the
sliding board, then sliding board moves backward and leaves cartons on pallet. That is all for stacking movement of cartons of one layer.
6. Empty Pallets Supplying Device
Driven by cylinder, piled empty pallets will be separated into single one and sent to chain conveyor to ensure supply of empty pallets.
7. Chain Conveyor for Empty Pallet
Empty pallets will be pushed to appropriate place by PLC control, waiting for convergence with products.
8. Chain Conveyor of Elevating Table
Driven by motor, empty pallets will be moved under elevating table exactly.
After fully stacked with products, pallets will be output by conveyors.
YK1800FR-PL ROTARY ARM WRAPPING MACHINE
Description:
PLC control,parameter adjustable
Detecting packing height full-automatically.
Alarm and Emergency Button
Pre-stretch feed film carriage system
Rotary arm reset automatically
Wrapping layers for top and bottom of pallet controls individually
Automatic/Maunal exchange control
All components is famous brand from the aboard.
Arm Driven system:
6-15layers/Min adjustable
Reset automatically
Automatically stop for touching someone.
Easy Transportation
Easy Transportation
Slewing ring structure
Film Carriage system:
250-300% Pre-stretch rate
The speed of up-down is adjustable
Out-infeed film speed adjustable.
Top and bottom layers control individually
