Help CenterYK-ZX03A Auto Bevalage Bottle Cans Wrap Around Case Packer Bottle Machine
Related Products
-
YK-ZX01G Secondary Packing Machinery&case PackerUS$ 1 - 2MOQ: 1 Set -
YK-ZX01G Secondary Packing MachineUS$ 7,999 - 8,000MOQ: 1 Set
-
YK-ZX03 Full-automatic Casing Machine&case PackerUS$ 1 - 2MOQ: 1 Set
-
YK-XZ01 Full-Auto Carton/Case PackerUS$ 45,000 - 65,000MOQ: 1 Set
-
YKX-02 Mid Speed Case Erector Packaing MachineUS$ 14,000 - 16,500MOQ: 1 Set
Specifications
This machine shapes the cartons automatically and closes their bottom flap with hot melt.

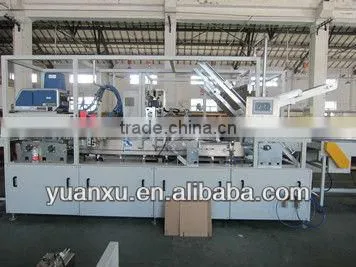

1.Wrap Around Case Packer
This machine shapes the cartons automatically and closes their bottom flap with hot melt. Each individual machine parts in terms of user-friendliness and stability when it comes to feed and changeover.
model:GB series
Material:
(1) Conveyor is made of stainless steel 304
(2) Machine frame and base is made of A3,contact part is stainless steel 304
(3) Machine should be painted according to the supplier’s standard color
(4) Control panel with touch screen
Technical Requirements:
(1) Capacity of the individual machine: 10-13 boxes/min
(2) Time from gluing of carton to sealing is less than 0.7 second. Time from the end of sealing to discharge (i.e. the time for the hot-melt glue to dry when the carton flaps are pressed) is longer than 2 second.

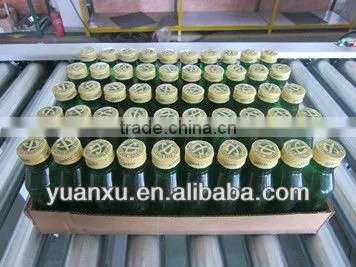

(3) Smooth carton sealing process without breaking of bottles
(4) Secure carton sealing without loosing
(5) No damages should be done to the packaging of the product during wraparound packing.
Machine Design
(1) Roller conveyor for stack preparation: next to the machine
(2) Design of the stack preparation unit withDriven conveyors in one level
(3) Installation of the stack preparation unit:next to the container in feed
(4) Length of the stack preparation unit:1 x 2300 mm
(5) Control desk in the magazine areafor adjustments at container in feed
(6) Number of lanes inside the machine: 4 lanes
(7) Container in feed in the machine:fixed
(8) Hot melt unit Make: pal pok
(9) Container conveyor height :1100 mm
(10) Necessary room height:2550 mm
Basic machine
a) Drive of the discharge conveyor via main drive
b) Stack preparation next to machine
c) Lifetime-lubricated bearings
d) AC motors and converters
e) LG frequency converter for container and pack transport
f) machine control: LG
g) positioning and axis control: OMRON
h) Pivoted control panel with touch screen(LG)
Extensions / attachments
a) In-feed for loose containers upstream of the machine, 6 chain lanes (load side)
b) Conveyor attachments in the dosing area, adjustment with clamping levers
c) Vibrator, electrical / pneumatic, for feeding the containers
d) Spacing plates for directing containers
e) Lane guides
